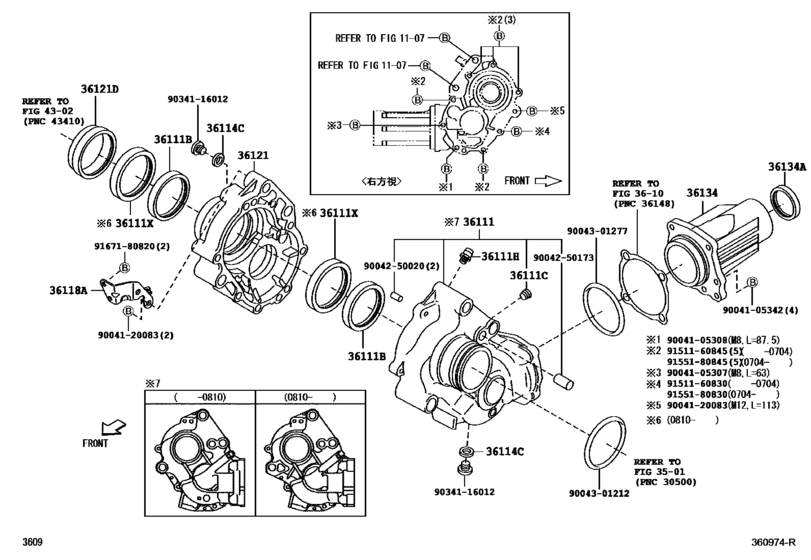

Transfer Case & Extension Housing ([05.2004 - 02.2010] (0405-1002)KGC15) Diagram Toyota PASSO
- Year
- 2006 - 2010
- Sales region
- Japan
- Frame
- KGC15
- grade
- RACY
- ENGINE
- 1KRFE
- TRANSMISSION
- ATM
- Model
- PASSO
- From
- 12.2006
- To
- 02.2010
- Gear Shift Type
- 4HC
- Vehicle Model
- PASSO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
36111
|
36111
36103-B1010 Case, Transfer[12.2006 - 11.2008] KGC15 |
36103-B1010 |
US $350.90 |
||
|
36111
|
36111
36103-B1030 Case Sub-Assy, Transfer[11.2008 - 02.2010] KGC15 |
36103-B1030 |
US $276.64 |
||
|
36111B
|
36111B
90043-11408 Seal, Oil (For Transfer Case)[11.2008 - 02.2010] KGC15 ＯＤ＝５７．５ |
90043-11408 |
US $8.74 |
||
| replacement | |||||
|
36111B
|
36111B
90043-11415 Seal, Oil (For Transfer Case)[11.2008 - 02.2010] KGC15 ＯＤ＝５７．５ |
90043-11415 |
US $8.96 |
||
|
36111B
|
36111B
90043-16019 Seal, Oil (For Transfer Case)[12.2006 - 11.2008] KGC15 ＯＤ＝６２．５ |
90043-16019 |
US $16.31 |
||
|
36111C
|
36111C
90043-44020 Plug (For Transfer Case)[12.2006 - 02.2010] KGC15 |
90043-44020 |
US $1.60 |
||
|
36111H
|
36111H
90049-15026 Plug(For Clutch Housing)[12.2006 - 02.2010] KGC15 |
90049-15026 |
from US $1.16 |
||
|
36111X
|
36111X
90043-11409 Seal, Oil (For Transfer Case), No.2[11.2008 - 02.2010] KGC15 |
90043-11409 |
US $8.74 |
||
| replacement | |||||
|
36111X
|
36111X
90043-11416 Seal, Oil (For Transfer Case), No.2[11.2008 - 02.2010] KGC15 |
90043-11416 |
US $10.39 |
||
|
36114C
|
36114C
90044-30178 Gasket, Transmission Case Plug[12.2006 - 02.2010] KGC15 |
90044-30178 |
US $1.25 |
||
|
36118A
|
36118A
36118-B1010 Plate, Transfer Stiffener, Rh[12.2006 - 02.2010] KGC15 |
36118-B1010 |
US $10.63 |
||
|
36121
|
36121
36121-B1010 Cover, Transfer Case, No.1[12.2006 - 11.2008] KGC15 ブリーザアナナシ |
36121-B1010 |
US $272.27 |
||
|
36121
|
36121
36121-B1030 Cover, Transfer Case, No.1[11.2008 - 02.2010] KGC15 ブリーザアナアリ |
36121-B1030 |
US $214.03 |
||
|
36121D
|
36121D
90043-11333 Seal, Oil(For Transfer Case Cover)[12.2006 - 02.2010] KGC15 |
90043-11333 |
US $12.90 |
||
|
36134
|
36134
36134-B1010 Retainer, Output Shaft Bearing, Front[12.2006 - 02.2010] KGC15 |
36134-B1010 |
US $94.64 |
||
|
36134A
|
36134A
90043-11332
Seal, Oil (For Output Shaft Bearing Front Retainer)
[12.2006 - 02.2010] KGC15 |
90043-11332 |
— | ||
| replacement | |||||
|
36134A
|
36134A
90043-11414 Seal, Oil (For Output Shaft Bearing Front Retainer)[12.2006 - 02.2010] KGC15 |
90043-11414 |
US $8.96 |
||
|
9004105307
|
9004105307
90041-05307 New Genuine Part |
90041-05307 |
US $3.93 |
||
|
9004105308
|
9004105308
90041-05308 New Genuine Part |
90041-05308 |
US $4.80 |
||
|
9004105342
|
9004105342
90041-05342 New Genuine Part |
90041-05342 |
US $3.20 |
||
|
9004120083
|
9004120083
90041-20083 Bolt (For Transfer Case) |
90041-20083 |
US $6.84 |
||
|
9004250020
|
9004250020
90042-50020 Pin, Straight(For Transfer Case Cover) |
90042-50020 |
US $2.04 |
||
|
9004250173
|
9004250173
90042-50173 Pin, Straight (For Transfer Case) |
90042-50173 |
US $4.22 |
||
|
9004301212
|
9004301212
90043-01212 New Genuine Part |
90043-01212 |
US $7.35 |
||
|
9004301277
|
9004301277
90043-01277 New Genuine Part |
90043-01277 |
US $4.80 |
||
|
9034116012
|
9034116012
90341-16012 Plug(For Transmission Case) |
90341-16012 |
US $4.66 |
||
|
9151160830
|
9151160830
91511-60830
Bolt Or Ring, Exhaust Pipe Front (For Front)
|
91511-60830 |
— | ||
| replacement | |||||
|
9151160830
|
9151160830
91511-B0830 Bolt Or Ring, Exhaust Pipe Front (For Front) |
91511-B0830 |
from US $0.80 |
||
|
9151160845
|
9151160845
91511-60845 Bolt (For Transfer Stiffener Plate) |
91511-60845 |
US $2.62 |
||
| replacement | |||||
|
9151160845
|
9151160845
91511-B0845 Bolt |
91511-B0845 |
US $3.40 |
||
|
9155180830
|
9155180830
91551-80830 Bolt, Compressor, No.2 |
91551-80830 |
from US $0.89 |
||
|
9155180845
|
9155180845
91551-80845 BOLT FLANGE |
91551-80845 |
from US $1.16 |
||
|
9167180820
|
9167180820
91671-80820 Bolt (For Transmission Control Cable Bracket) |
91671-80820 |
from US $0.78 |
||
