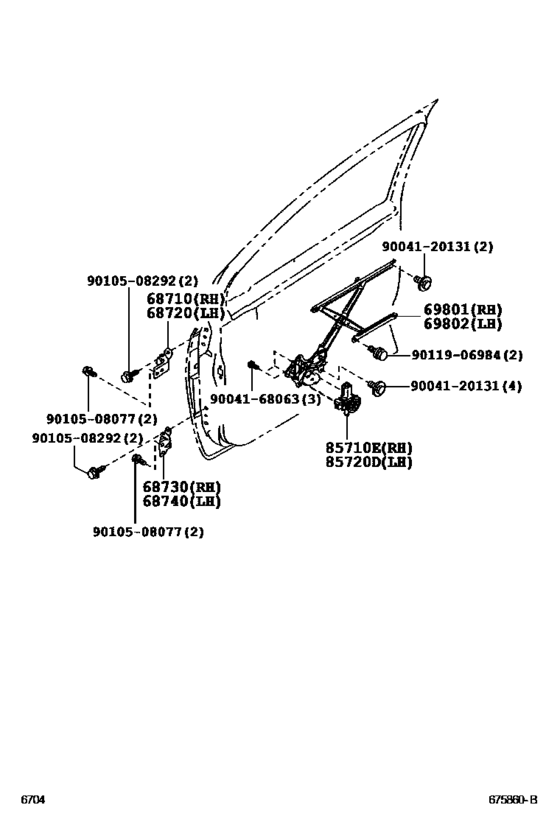

Front Door Window Regulator & Hinge ([12.2008 - ] (0812- )) Diagram Toyota PASSO
- Year
- 2008 - 2012
- Sales region
- Japan
- Frame
- M502E
- grade
- S
- ENGINE
- 3SZVE
- Model
- PASSO SETTE
- From
- 12.2008
- To
- 03.2012
- Vehicle Model
- PASSO SETTE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68710
|
68710
68710-12151 Hinge Assy, Front Door, Upper Rh[12.2008 -] M502,512 |
68710-12151 |
from US $29.91 |
||
|
68720
|
68720
68720-12151 Hinge Assy, Front Door, Upper Lh[12.2008 -] M502,512 |
68720-12151 |
from US $30.97 |
||
|
68730
|
68730
68770-97204
Hinge Assy, Front Door, Upper Rh
[12.2008 - 04.2009] M502,512 |
68770-97204 |
— | ||
| replacement | |||||
|
68730
|
68730
68770-B1020 Hinge Assy, Front Door[12.2008 - 04.2009] M502,512 |
68770-B1020 |
US $49.39 |
||
|
68730
|
68730
68770-B1020 Hinge Assy, Front Door[05.2009 - 03.2012] M502,512 |
68770-B1020 |
US $49.39 |
||
|
68740
|
68740
68780-97204
Hinge Assy, Front Door, Upper Lh
[12.2008 - 04.2009] M502,512 |
68780-97204 |
— | ||
| replacement | |||||
|
68740
|
68740
68780-B1020 Hinge Assy, Front Door, Upper Lh[12.2008 - 04.2009] M502,512 |
68780-B1020 |
US $49.39 |
||
|
68740
|
68740
68780-B1020 Hinge Assy, Front Door, Upper Lh[05.2009 - 03.2012] M502,512 |
68780-B1020 |
US $49.39 |
||
|
69801
|
69801
69801-B1070 Regulator Sub-Assy, Front Door Window, RhFRONT DOOR WINDOW, RH [12.2008 -] M502,512 |
69801-B1070 |
US $84.45 |
||
|
69802
|
69802
69802-B1050 Regulator Sub-Assy, Front Door Window, LhFRONT DOOR WINDOW, LH [12.2008 -] M502,512 |
69802-B1050 |
US $84.45 |
||
|
85710E
|
85710E
85710-B1010 Motor Assy, Power Window Regulator, Rh[12.2008 - 07.2011] M502,512 |
85710-B1010 |
US $259.17 |
||
| replacement | |||||
|
85710E
|
85710E
85710-B1011 Motor Assy, Power Window Regulator, Rh[12.2008 - 07.2011] M502,512 |
85710-B1011 |
US $315.12 |
||
|
85710E
|
85710E
85710-B1011 Motor Assy, Power Window Regulator, Rh[08.2011 -] M502,512 |
85710-B1011 |
US $315.12 |
||
|
85720D
|
85720D
85720-B2020 Motor Assy, Power Window Regulator, Rh[12.2008 - 10.2011] M502,512 |
85720-B2020 |
US $215.49 |
||
| replacement | |||||
|
85720D
|
85720D
85720-B2021 Motor Assy, Power Window Regulator, Rh[12.2008 - 10.2011] M502,512 |
85720-B2021 |
US $227.14 |
||
|
85720D
|
85720D
85720-B2021 Motor Assy, Power Window Regulator, Rh[11.2011 -] M502,512 |
85720-B2021 |
US $227.14 |
||
|
9004120131
|
9004120131
90041-20131 New Genuine Part |
90041-20131 |
US $1.60 |
||
|
9004168063
|
9004168063
90041-68063 New Genuine Part |
90041-68063 |
US $1.97 |
||
|
9010508077
|
9010508077
90105-08077 BOLT |
90105-08077 |
US $1.97 |
||
|
9010508292
|
9010508292
90105-08292 New Genuine Part |
90105-08292 |
US $1.89 |
||
| replacement | |||||
|
9010508292
|
9010508292
90105-08291 BOLT |
90105-08291 |
from US $0.82 |
||
|
9011906984
|
9011906984
90119-06984 BOLT WWASHER |
90119-06984 |
US $1.08 |
||
