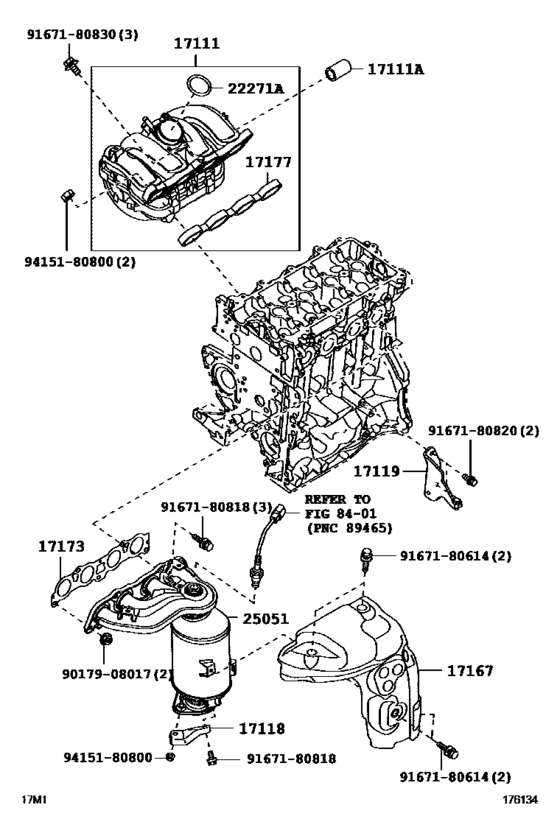

Manifold ([12.2008 - ] (0812- )) Diagram Toyota PASSO
- Year
- 2008 - 2012
- Sales region
- Japan
- Frame
- M502E
- grade
- S
- ENGINE
- 3SZVE
- Model
- PASSO SETTE
- From
- 12.2008
- To
- 03.2012
- Vehicle Model
- PASSO SETTE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17111
|
17111
17120-B1020 Manifold, Intake[12.2008 - 03.2012] 3SZVE..M502,512 |
17120-B1020 |
US $238.78 |
||
|
17111A
|
17111A
90043-39029 Plug, No.1[12.2008 -] 3SZVE..M502,512 |
90043-39029 |
US $1.67 |
||
|
17118
|
17118
17118-B1020 Stay, Manifold[12.2008 -] 3SZVE..M502,512 |
17118-B1020 |
US $10.63 |
||
|
17119
|
17119
17119-B1020 Stay, Manifold, No.2[12.2008 -] 3SZVE..M502,512 |
17119-B1020 |
US $21.26 |
||
|
17167
|
17167
17167-B1040 Insulator, Exhaust Manifold Heat, No.1[12.2008 -] 3SZVE..M502,512 |
17167-B1040 |
US $58.06 |
||
|
17173
|
17173
17173-97401 Gasket, Exhaust Manifold To Head[12.2008 -] 3SZVE..M502,512 |
17173-97401 |
US $55.44 |
||
|
17177
|
17177
17177-B1020 Gasket, Intake Manifold To Head, No.1[12.2008 -] 3SZVE..M502,512 |
17177-B1020 |
from US $11.83 |
||
|
22271A
|
22271A
90043-01321 Gasket, Throttle Body[12.2008 -] 3SZVE..M502,512 |
90043-01321 |
US $4.48 |
||
|
25051
|
25051
17140-B1220 Converter Sub-Assy, Exhaust Manifold[12.2008 -] 3SZVE..M502,512 |
17140-B1220 |
US $930.38 |
||
|
9017908017
|
9017908017
90179-08017 NUT |
90179-08017 |
from US $0.76 |
||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.63 |
||
|
9167180818
|
9167180818
91671-80818 BOLT FLANGE |
91671-80818 |
from US $0.84 |
||
|
9167180820
|
9167180820
91671-80820 Bolt (For Transmission Control Cable Bracket) |
91671-80820 |
from US $0.78 |
||
|
9167180830
|
9167180830
91671-80830 BOLT FLANGE |
91671-80830 |
US $1.43 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.78 |
