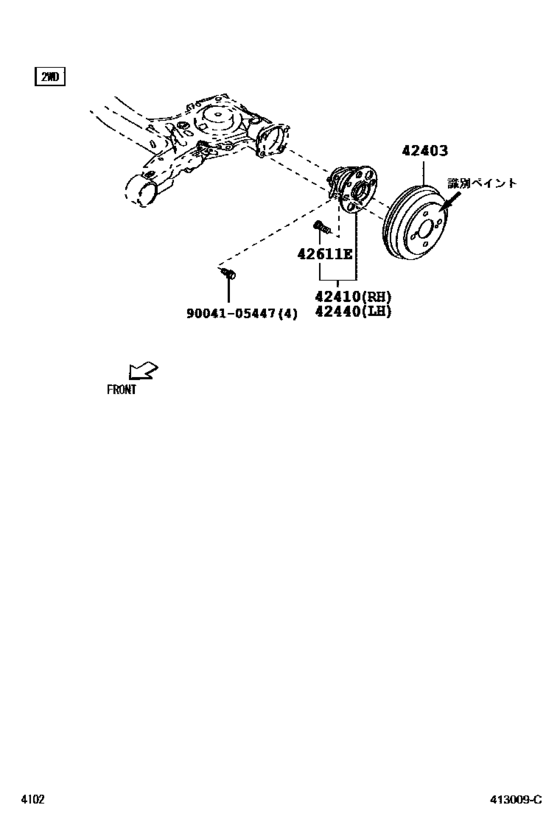

Rear Axle Shaft & Hub ([12.2008 - ] 2WD (0812- )M502) Diagram Toyota PASSO
- Year
- 2008 - 2012
- Sales region
- Japan
- Frame
- M502E
- grade
- S
- ENGINE
- 3SZVE
- Model
- PASSO SETTE
- From
- 12.2008
- To
- 03.2012
- Vehicle Model
- PASSO SETTE
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42403
|
42403
42431-B1040 Drum Sub-Assy, Rear BrakeREAR BRAKE [12.2008 - 06.2011] M502 識別ペイント＝白 |
42431-B1040 |
US $214.03 |
||
|
42403
|
42403
42431-B1041 Drum Sub-Assy, Rear Brake[06.2011 - 03.2012] M502 識別ペイント＝赤 |
42431-B1041 |
US $209.66 |
||
|
42410
|
42410
42410-B1050 Hub & Bearing Assy, Rear Axle, RhREAR AXLE, RH [12.2008 -] M502 |
42410-B1050 |
US $286.83 |
||
|
42440
|
42440
42410-B1050 Hub & Bearing Assy, Rear Axle, RhREAR AXLE, RH [12.2008 -] M502 |
42410-B1050 |
US $286.83 |
||
|
42611E
|
42611E
90049-12056 Bolt, Hub (For Rear Axle)[12.2008 -] M502 |
90049-12056 |
from US $4.29 |
||
|
9004105447
|
9004105447
90041-05447 New Genuine Part |
90041-05447 |
US $3.20 |
