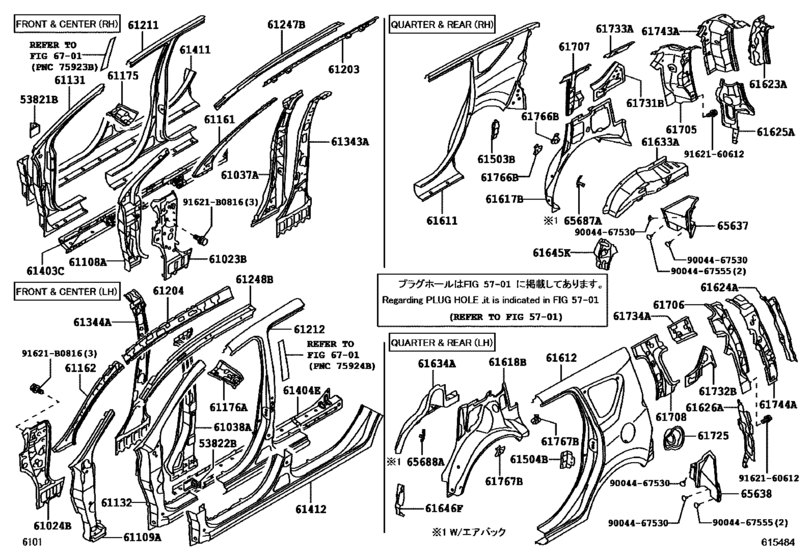

Side Member ([12.2008 - ] (0812- )) Diagram Toyota PASSO
- Year
- 2008 - 2012
- Sales region
- Japan
- Frame
- M502E
- grade
- S
- ENGINE
- 3SZVE
- Model
- PASSO SETTE
- From
- 12.2008
- To
- 03.2012
- Vehicle Model
- PASSO SETTE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53821B
|
53821B
53877-B1010 Bracket, Front Fender, Rear RhFRONT FENDER, REAR RH [12.2009 -] M502,512 |
53877-B1010 |
US $4.95 |
||
|
53821B
|
53821B
53877-B2020 Bracket, Front Fender, Rear RhFRONT FENDER, REAR RH [12.2008 - 11.2009] M502,512 |
53877-B2020 |
US $4.08 |
||
| replacement | |||||
|
53821B
|
53821B
53877-B2021 Bracket, Front Fender, Rear Rh[12.2008 - 11.2009] M502,512 |
53877-B2021 |
US $4.95 |
||
|
53822B
|
53822B
53877-B1010 Bracket, Front Fender, Rear RhFRONT FENDER, REAR RH [12.2009 -] M502,512 |
53877-B1010 |
US $4.95 |
||
|
53822B
|
53822B
53877-B2020 Bracket, Front Fender, Rear RhFRONT FENDER, REAR RH [12.2008 - 11.2009] M502,512 |
53877-B2020 |
US $4.08 |
||
| replacement | |||||
|
53822B
|
53822B
53877-B2021 Bracket, Front Fender, Rear Rh[12.2008 - 11.2009] M502,512 |
53877-B2021 |
US $4.95 |
||
|
61023B
|
61023B
61023-B1050 Pillar Sub-Assy, Front Body, Inner RhFRONT BODY, INNER RH [12.2008 -] M502,512 |
61023-B1050 |
US $139.78 |
||
|
61024B
|
61024B
61024-B1060 Pillar Sub-Assy, Front Body, Inner LhFRONT BODY, INNER LH [12.2008 -] M502,512 |
61024-B1060 |
US $139.78 |
||
|
61037A
|
61037A
61037-B1040 Reinforcement Sub-Assy, Center Body Pillar, RhCENTER BODY PILLAR, RH [12.2008 -] M502,512 |
61037-B1040 |
US $243.15 |
||
|
61038A
|
61038A
61038-B1040 Reinforcement Sub-Assy, Center Body Pillar, LhCENTER BODY PILLAR, LH [12.2008 -] M502,512 |
61038-B1040 |
US $243.15 |
||
|
61108A
|
61108A
61108-B1030 Reinforce Sub-Assy, Front Body Pillar, Lower RhFRONT BODY PILLAR, LOWER RH [12.2008 -] M502,512 |
61108-B1030 |
US $192.19 |
||
|
61109A
|
61109A
61109-B1030 Reinforce Sub-Assy, Front Body Pillar, Lower LhFRONT BODY PILLAR, LOWER LH [12.2008 -] M502,512 |
61109-B1030 |
US $192.19 |
||
|
61131
|
61131
61131-B1120 Pillar, Front Body, Upper Outer RhFRONT BODY, UPPER OUTER RH [12.2008 -] M502,512..S,SC |
61131-B1120 |
US $219.86 |
||
|
61132
|
61132
61132-B1120 Pillar, Front Body, Upper Outer LhFRONT BODY, UPPER OUTER LH [12.2008 -] M502,512..S,SC |
61132-B1120 |
US $219.86 |
||
|
61161
|
61161
61161-B1060 Pillar, Front Body, Upper Inner RhFRONT BODY, UPPER INNER RH [12.2008 -] M502,512 |
61161-B1060 |
US $78.62 |
||
|
61162
|
61162
61162-B1060 Pillar, Front Body, Upper Inner LhFRONT BODY, UPPER INNER LH [12.2008 -] M502,512 |
61162-B1060 |
US $78.62 |
||
|
61175
|
61175
61175-B1030 Reinforcement, Front Body Pillar, Inner No.2 RhFRONT BODY PILLAR, INNER NO.2 RH [12.2008 -] M502,512 |
61175-B1030 |
US $35.24 |
||
|
61176A
|
61176A
61176-B1030 Reinforcement, Front Body Pillar, Inner No.2 LhFRONT BODY PILLAR, INNER NO.2 LH [12.2008 -] M502,512 |
61176-B1030 |
US $35.24 |
||
|
61203
|
61203
61203-B1130 Rail Sub-Assy, Roof Side, Inner RhROOF SIDE, INNER RH [12.2008 -] M502,512 |
61203-B1130 |
US $97.55 |
||
|
61204
|
61204
61204-B1130 Rail Sub-Assy, Roof Side, Inner LhROOF SIDE, INNER LH [12.2008 -] M502,512 |
61204-B1130 |
US $97.55 |
||
|
61211
|
61211
61211-B1090 Rail, Roof Side, Outer RhROOF SIDE, OUTER RH [12.2008 -] M502,512..S,SC |
61211-B1090 |
US $264.99 |
||
|
61212
|
61212
61212-B1090 Rail, Roof Side, Outer LhROOF SIDE, OUTER LH [12.2008 -] M502,512..S,SC |
61212-B1090 |
US $264.99 |
||
|
61247B
|
61247B
61247-B1030 Reinforcement, Roof Side Rail, Inner RhROOF SIDE RAIL, INNER RH [12.2008 -] M502,512 |
61247-B1030 |
US $139.78 |
||
|
61248B
|
61248B
61248-B1030 Reinforcement, Roof Side Rail, Inner LhROOF SIDE RAIL, INNER LH [12.2008 -] M502,512 |
61248-B1030 |
US $139.78 |
||
|
61343A
|
61343A
61307-B1040 Pillar, Center Body, Inner RhCENTER BODY, INNER RH [12.2008 -] M502,512 |
61307-B1040 |
US $115.02 |
||
|
61344A
|
61344A
61308-B1040 Pillar, Center Body, Inner LhCENTER BODY, INNER LH [12.2008 -] M502,512 |
61308-B1040 |
US $115.02 |
||
|
61403C
|
61403C
61403-B1031 Reinforce Sub-Assy, Rocker, Outer RhROCKER, OUTER RH [12.2008 -] M502,512 |
61403-B1031 |
US $243.15 |
||
|
61404E
|
61404E
61404-B1031 Reinforce Sub-Assy, Rocker, Outer LhROCKER, OUTER LH [12.2008 -] M502,512 |
61404-B1031 |
US $243.15 |
||
|
61411
|
61411
61411-B1120 Panel, Rocker, Outer RhROCKER, OUTER RH [12.2008 -] M502,512..S,SC |
61411-B1120 |
US $352.35 |
||
|
61412
|
61412
61412-B1120 Panel, Rocker, Outer LhROCKER, OUTER LH [12.2008 -] M502,512..S,SC |
61412-B1120 |
US $352.35 |
||
|
61503B
|
61503B
61503-B1030 Reinforcement Sub-Assy, Quarter Lock Pillar, RhQUARTER LOCK PILLAR, RH [12.2008 -] M502,512 |
61503-B1030 |
US $35.24 |
||
|
61504B
|
61504B
61504-B1030 Reinforcement Sub-Assy, Quarter Lock Pillar, LhQUARTER LOCK PILLAR, LH [12.2008 -] M502,512 |
61504-B1030 |
US $35.24 |
||
|
61611
|
61611
61611-B1090 Panel, Quarter, RhQUARTER, RH [12.2008 -] M502,512..S,SC |
61611-B1090 |
US $589.68 |
||
|
61612
|
61612
61612-B1090 Panel, Quarter, LhQUARTER, LH [12.2008 -] M502,512..S,SC |
61612-B1090 |
US $589.68 |
||
|
61617B
|
61617B
61617-B1040 Panel, Quarter Inner, Lower RhQUARTER INNER, LOWER RH [12.2008 -] M502,512 |
61617-B1040 |
US $139.78 |
||
|
61618B
|
61618B
61618-B1040 Panel, Quarter, Inner Lower LhQUARTER, INNER LOWER LH [12.2008 -] M502,512 |
61618-B1040 |
US $139.78 |
||
|
61623A
|
61623A
61031-B1040 Extension, Quarter Panel, Outer RhQUARTER PANEL, OUTER RH [12.2008 -] M502,512 |
61031-B1040 |
US $97.55 |
||
|
61624A
|
61624A
61032-B1040 Extension, Quarter Panel, Outer LhQUARTER PANEL, OUTER LH [12.2008 -] M502,512 |
61032-B1040 |
US $97.55 |
||
|
61625A
|
61625A
61033-B1020 Extension Sub-Assy, Quarter Panel, RhQUARTER PANEL, RH [12.2008 -] M502,512 |
61033-B1020 |
US $97.55 |
||
|
61626A
|
61626A
61034-B1020 Extension Sub-Assy, Quarter Panel, LhQUARTER PANEL, LH [12.2008 -] M502,512 |
61034-B1020 |
US $97.55 |
||
|
61633A
|
61633A
61633-B1030 Panel, Quarter Wheel House, Inner RhQUARTER WHEEL HOUSE, INNER RH [12.2008 -] M502,512 |
61633-B1030 |
US $97.55 |
||
|
61634A
|
61634A
61634-B1030 Panel, Quarter Wheel House, Inner LhQUARTER WHEEL HOUSE, INNER LH [12.2008 -] M502,512 |
61634-B1030 |
US $97.55 |
||
|
61645K
|
61645K
61645-B1030 Gusset, Quarter Wheel House Inner, RhQUARTER WHEEL HOUSE INNER, RH [12.2008 -] M502,512 |
61645-B1030 |
US $60.86 |
||
|
61646F
|
61646F
61646-B1030 Gusset, Quarter Wheel House Inner, LhQUARTER WHEEL HOUSE INNER, LH [12.2008 -] M502,512 |
61646-B1030 |
US $60.86 |
||
|
61705
|
61705
61705-B1010 Panel Sub-Assy, Roof Side, Inner RhROOF SIDE, INNER RH [12.2008 -] M502,512 |
61705-B1010 |
US $97.55 |
||
|
61706
|
61706
61706-B1010 Panel Sub-Assy, Roof Side, Inner LhROOF SIDE, INNER LH [12.2008 -] M502,512 |
61706-B1010 |
US $97.55 |
||
|
61707
|
61707
61051-B1020 Panel Sub-Assy, Quarter, Inner RhQUARTER, INNER RH [12.2008 -] M502,512 |
61051-B1020 |
US $97.55 |
||
|
61708
|
61708
61052-B1020 Panel Sub-Assy, Quarter, Inner LhQUARTER, INNER LH [12.2008 -] M502,512 |
61052-B1020 |
US $97.55 |
||
|
61725
|
61725
61725-B1030 Box, Fuel InletFUEL INLET [12.2008 -] M502,512 |
61725-B1030 |
US $35.24 |
||
|
61731B
|
61731B
61731-B1070 Panel, Roof Side, Inner RhROOF SIDE, INNER RH [12.2008 -] M502,512 |
61731-B1070 |
US $43.53 |
||
|
61732B
|
61732B
61732-B1070 Panel, Roof Side, Inner LhROOF SIDE, INNER LH [12.2008 -] M502,512 |
61732-B1070 |
US $43.53 |
||
|
61733A
|
61733A
61733-B1010 Panel, Roof Side, Inner Front RhROOF SIDE, INNER FRONT RH [12.2008 -] M502,512 |
61733-B1010 |
US $35.24 |
||
|
61734A
|
61734A
61734-B1010 Panel, Roof Side, Inner Front LhROOF SIDE, INNER FRONT LH [12.2008 -] M502,512 |
61734-B1010 |
US $35.24 |
||
|
61743A
|
61743A
61035-B1030 Reinforcement, Back Door Opening Side, RhBACK DOOR OPENING SIDE, RH [12.2008 -] M502,512 |
61035-B1030 |
US $139.78 |
||
|
61744A
|
61744A
61036-B1020 Reinforcement, Back Door Opening Side, LhBACK DOOR OPENING SIDE, LH [12.2008 -] M502,512 |
61036-B1020 |
US $139.78 |
||
|
61766B
|
61766B
61766-B1040 Reinforcement, Belt Anchor To Roof Side, Inner RhBELT ANCHOR TO ROOF SIDE, INNER RH [12.2008 -] M502,512 |
61766-B1040 |
US $11.36 |
||
|
61767B
|
61767B
61767-B1030 Reinforcement, Belt Anchor To Roof Side, Inner LhBELT ANCHOR TO ROOF SIDE, INNER LH [12.2008 -] M502,512 |
61767-B1030 |
US $11.36 |
||
|
65637
|
65637
65637-B1070 Liner, Rear Wheel House, RhREAR WHEEL HOUSE, RH [12.2008 -] M502,512..S,SC |
65637-B1070 |
US $33.78 |
||
|
65638
|
65638
65638-B1070 Liner, Rear Wheel House, LhREAR WHEEL HOUSE, LH [12.2008 -] M502,512..S,SC |
65638-B1070 |
US $33.78 |
||
|
65687A
|
65687A
65687-B1010 Bracket, Wheel House Brace, Rh[12.2008 -] M502,512..G,S,SC; M502..X テンパ タイヤ （Ｔ１０５／７０Ｄ１６）＆ＳＲＳ エアバッグ−Ｄ／Ｐ、サイド、エア カーテン; M502,512..X ＳＲＳ エアバッグ−Ｄ／Ｐ、サイド、エアカーテン |
65687-B1010 |
US $7.28 |
||
|
65688A
|
65688A
65688-B1010 Bracket, Wheel House Brace, Lh[12.2008 -] M502,512..G,S,SC; M502..X テンパ タイヤ （Ｔ１０５／７０Ｄ１６）＆ＳＲＳ エアバッグ−Ｄ／Ｐ、サイド、エア カーテン; M502,512..X ＳＲＳ エアバッグ−Ｄ／Ｐ、サイド、エアカーテン |
65688-B1010 |
US $7.28 |
||
|
91621B0816
|
91621B0816
91621-B0816 BOLT WWASHER |
91621-B0816 |
from US $0.82 |
||
|
9004467530
|
9004467530
90044-67530 New Genuine Part |
90044-67530 |
US $3.23 |
||
|
9004467555
|
9004467555
90044-67555 Clip, Rear Bumper Side |
90044-67555 |
from US $2.03 |
||
|
9162160612
|
9162160612
91621-60612
BOLTWWASHER
|
91621-60612 |
— | ||
| replacement | |||||
|
9162160612
|
9162160612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.65 |
||
