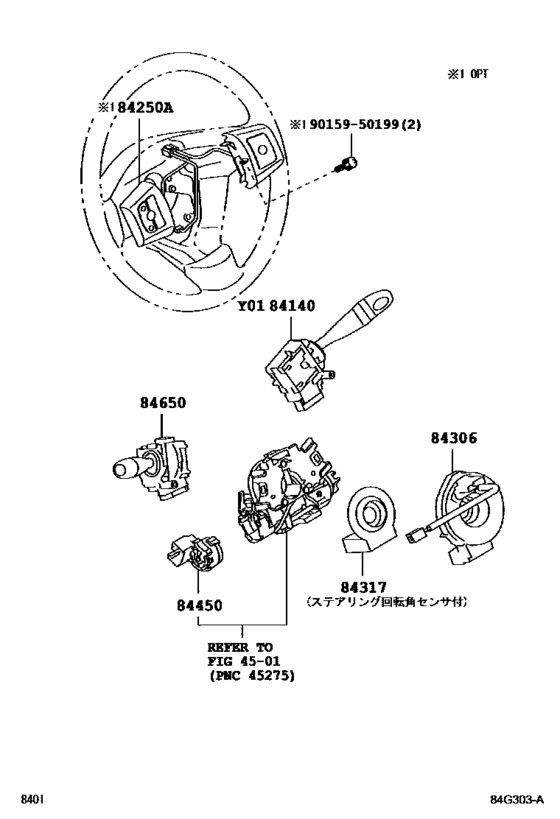

Switch & Relay & Computer ([12.2008 - ] ｽﾃｱﾘﾝｸﾞ (0812- )) Diagram Toyota PASSO
- Year
- 2008 - 2012
- Sales region
- Japan
- Frame
- M502E
- grade
- S
- ENGINE
- 3SZVE
- Model
- PASSO SETTE
- From
- 12.2008
- To
- 03.2012
- Vehicle Model
- PASSO SETTE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84140
|
84140
84140-B2070 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [12.2008 -] M502,512..S,SC; M502,512..G,X フロントフォグ ＆ ドライビングランプ−有り（５５Ｗ） |
84140-B2070 |
US $103.38 |
||
|
84250A
|
84250A
84250-B1010 Switch Assy, Steering PadSTEERING PAD [12.2008 -] M502 有り（ＶＳＣ）＆オーディオ−０７ナビＨＤＤ＊４ＳＰ; M502,512 オーディオ−０７ナビＨＤＤ＊４ＳＰ; M502..G Ｃ パッケージ＆有り（ＶＳＣ）＆オーディオ−０７ナビＨＤＤ＊４ＳＰ; M502,512..G Ｃ パッケージ＆オーディオ−０７ナビＨＤＤ＊４ＳＰ |
84250-B1010 |
US $106.29 |
||
|
84306
|
84306
84306-B2030 Cable Sub-Assy, SpiralSPIRAL [12.2008 -] M502,512 |
84306-B2030 |
US $176.18 |
||
|
84306
|
84306
84306-B2040 Cable Sub-Assy, SpiralSPIRAL [12.2008 -] M502 有り（ＶＳＣ）; M502 有り（ＶＳＣ）＆オーディオ−０７ナビＨＤＤ＊４ＳＰ; M502,512 オーディオ−０７ナビＨＤＤ＊４ＳＰ |
84306-B2040 |
US $195.10 |
||
|
84317
|
84317
84317-B1020 Sensor, Steering PositionSTEERING POSITION [12.2008 -] M502 有り（ＶＳＣ）; M502 有り（ＶＳＣ）＆オーディオ−０７ナビＨＤＤ＊４ＳＰ; M502,512 オーディオ−０７ナビＨＤＤ＊４ＳＰ |
84317-B1020 |
US $192.19 |
||
|
84450
|
84450
84450-B2020 Switch Assy, Ignition Or StarterIGNITION OR STARTER [12.2008 -] M502,512 |
84450-B2020 |
US $42.08 |
||
|
84650
|
84650
84652-B1020 Switch Assy, Windshield Wiper[12.2008 -] M502,512..G,S |
84652-B1020 |
US $110.66 |
||
| replacement | |||||
|
84650
|
84650
84652-B1021 Switch Assy, Windshield Wiper[12.2008 -] M502,512..G,S |
84652-B1021 |
US $110.66 |
||
|
9015950199
|
9015950199
90159-50199 SCREW |
90159-50199 |
from US $0.67 |
||
