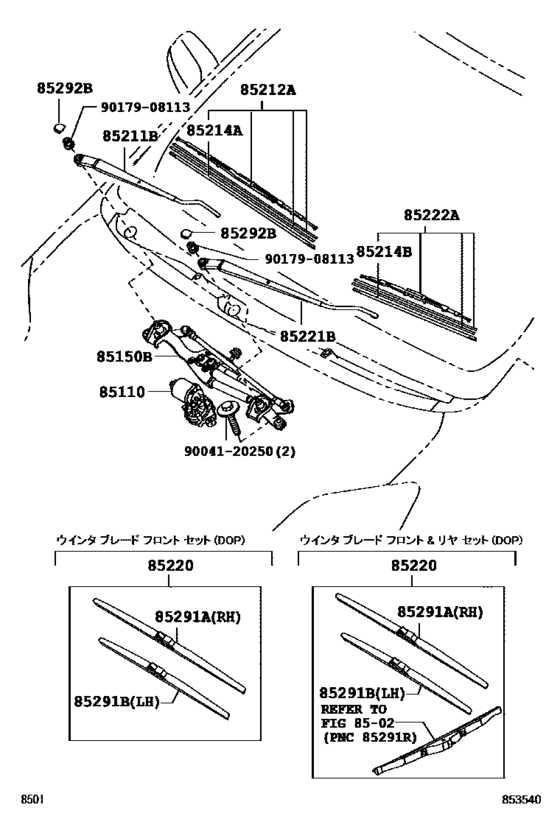

Windshield Wiper ([12.2008 - ] (0812- )) Diagram Toyota PASSO
- Year
- 2008 - 2012
- Sales region
- Japan
- Frame
- M502E
- grade
- S
- ENGINE
- 3SZVE
- Model
- PASSO SETTE
- From
- 12.2008
- To
- 03.2012
- Vehicle Model
- PASSO SETTE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85110
|
85110
85110-B1070 Motor Assy, Windshield WiperWINDSHIELD WIPER [12.2008 -] M502,512 |
85110-B1070 |
US $262.08 |
||
|
85110
|
85110
85110-B1080 Motor Assy, Windshield WiperWINDSHIELD WIPER [12.2008 -] M502,512 寒冷地仕様 |
85110-B1080 |
US $288.29 |
||
|
85150B
|
85150B
85150-B1050 Link Assy, WiperWIPER [12.2008 -] M502,512 |
85150-B1050 |
US $100.46 |
||
|
85211B
|
85211B
85211-B1070 Arm, Front Wiper, RhFR WIPER, RH [12.2008 -] M502,512 |
85211-B1070 |
US $56.35 |
||
|
85212A
|
85212A
85212-B2090 Blade, Fr Wiper, RhFR WIPER, RH [12.2008 -] M502,512 |
85212-B2090 |
US $40.04 |
||
|
85214A
|
85214A
85214-B2130 Rubber, Wiper, RhWIPER, RH [12.2008 -] M502,512 |
85214-B2130 |
US $13.80 |
||
|
85214B
|
85214B
85214-B2090 Rubber, Wiper, LhWIPER, LH [12.2008 -] M502,512 |
85214-B2090 |
US $9.50 |
||
|
85220
|
85220
85201-B1050
Blade Assy, Windshield Wiper
[12.2008 - 03.2012] M502,512 ウィンターブレード（Ｄ−ＯＰＴ）,フロント |
85201-B1050 |
— | ||
|
85220
|
85220
85201-B1060 Blade Assy, Windshield WiperWINDSHIELD WIPER [12.2008 - 03.2012] M502,512 ウィンターブレード（Ｄ−ＯＰＴ）,フロント ＆ リヤ |
85201-B1060 |
US $174.72 |
||
|
85221B
|
85221B
85221-B1070 Arm, Front Wiper, LhFR WIPER, LH [12.2008 -] M502,512 |
85221-B1070 |
US $60.86 |
||
|
85222A
|
85222A
85222-B2060 Blade, Fr Wiper, LhFR WIPER, LH [12.2008 -] M502,512 |
85222-B2060 |
US $28.39 |
||
|
85291A
|
85291A
85291-50060 Blade, Front Wiper, Winter, Rh[12.2008 - 03.2012] M502,512 ウィンターブレード（Ｄ−ＯＰＴ） |
85291-50060 |
US $93.48 |
||
|
85291B
|
85291B
85291-44080 Blade Assy, Windshield Wiper[12.2008 - 03.2012] M502,512 ウィンターブレード（Ｄ−ＯＰＴ） |
85291-44080 |
from US $32.95 |
||
|
85292B
|
85292B
85292-12020 Cover, Windshield Wiper Arm[12.2008 -] M502,512 |
85292-12020 |
from US $1.37 |
||
|
9004120250
|
9004120250
90041-20250 New Genuine Part |
90041-20250 |
US $2.33 |
||
|
9017908113
|
9017908113
90179-08113 Nut (For Front Wiper Arm Setting) |
90179-08113 |
from US $0.95 |
