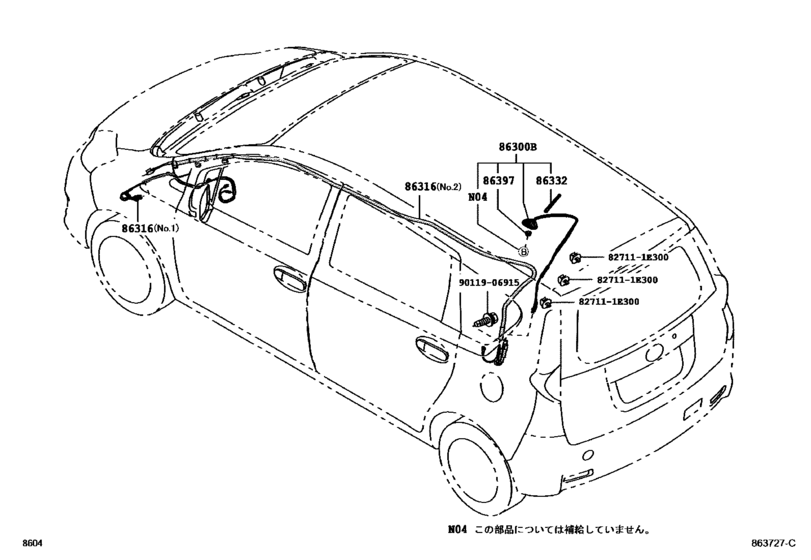

Antenna ([12.2008 - ] (0812- )) Diagram Toyota PASSO
- Year
- 2008 - 2012
- Sales region
- Japan
- Frame
- M512E
- grade
- SC
- ENGINE
- 3SZVE
- Model
- PASSO SETTE
- From
- 12.2008
- To
- 03.2012
- Vehicle Model
- PASSO SETTE
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86300B
|
86300B
86300-B1080 Antenna Assy, Amplifier, No.1AMPLIFIER [12.2008 -] M502,512 |
86300-B1080 |
US $145.60 |
||
|
86316
|
86316
86316-B1200 Cable, AntennaANTENNA [12.2008 -] M502,512 ＮＯ．１ |
86316-B1200 |
US $43.53 |
||
|
86316
|
86316
86316-B1210 Cable, AntennaANTENNA [12.2008 -] M502,512 ＮＯ．２ |
86316-B1210 |
US $57.80 |
||
|
86332
|
86332
86332-B2010 Rod, AntennaANTENNA [12.2008 -] M502,512 |
86332-B2010 |
US $35.24 |
||
|
86397
|
86397
86397-B2010 Plate, Antenna EarthANTENNA EARTH [12.2008 -] M502,512 |
86397-B2010 |
US $1.75 |
||
|
827111E300
|
827111E300
82711-1E300 Clamp, Wiring Harness |
82711-1E300 |
US $1.25 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.53 |
