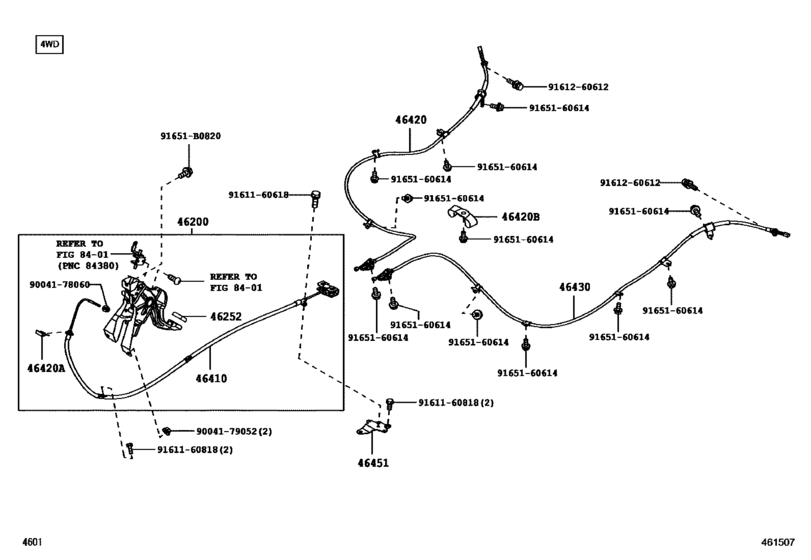

Parking Brake & Cable ([12.2008 - ] 4WD (0812- )M512) Diagram Toyota PASSO
- Year
- 2008 - 2012
- Sales region
- Japan
- Frame
- M512E
- grade
- SC
- ENGINE
- 3SZVE
- Model
- PASSO SETTE
- From
- 12.2008
- To
- 03.2012
- Vehicle Model
- PASSO SETTE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
46200
|
46200
46200-B1010 Pedal Assy, Parking Brake Control[12.2008 - 03.2012] M502,512 |
46200-B1010 |
US $165.98 |
||
| replacement | |||||
|
46200
|
46200
46200-B1040 Pedal Assy, Parking Brake Control[12.2008 - 03.2012] M502,512 |
46200-B1040 |
US $174.72 |
||
|
46252
|
46252
46252-B2020 Pad, Parking Pedal[12.2008 -] M502,512 |
46252-B2020 |
US $11.29 |
||
|
46410
|
46410
46410-B1010 Cable Assy, Parking Brake, No.1[12.2008 - 06.2010] M502,512 |
46410-B1010 |
US $51.83 |
||
| replacement | |||||
|
46410
|
46410
46410-B1011 Cable Assy, Parking Brake, No.1[12.2008 - 06.2010] M502,512 |
46410-B1011 |
US $49.50 |
||
|
46410
|
46410
46410-B1011 Cable Assy, Parking Brake, No.1[07.2010 -] M502,512 |
46410-B1011 |
US $49.50 |
||
|
46420
|
46420
46420-B1070 Cable Assy, Parking Brake, No.2PARKING BRAKE, NO.2 [12.2008 - 03.2012] M512 |
46420-B1070 |
US $58.53 |
||
|
46420A
|
46420A
90044-65531 Clamp, No.1(For Parking Brake Cable)[12.2008 -] M502,512 |
90044-65531 |
US $2.77 |
||
|
46420B
|
46420B
90044-61832 Clamp, No.2(For Parking Brake Cable)[12.2008 -] M502,512 |
90044-61832 |
US $3.35 |
||
|
46430
|
46430
46430-B1070 Cable Assy, Parking Brake, No.3PARKING BRAKE, NO.3 [12.2008 - 03.2012] M512 |
46430-B1070 |
US $58.53 |
||
|
46451
|
46451
58253-B1010 Bracket, Cable Support[12.2008 -] M502,512..S,SC,X |
58253-B1010 |
US $11.65 |
||
|
91651B0820
|
91651B0820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.97 |
||
| replacement | |||||
|
91651B0820
|
91651B0820
90080-11347 New Genuine Part |
90080-11347 |
US $3.11 |
||
|
9004178060
|
9004178060
90041-78060 Nut, Parking Brake Cable Adjusting, No.2 |
90041-78060 |
US $3.40 |
||
|
9004179052
|
9004179052
90041-79052 NUT |
90041-79052 |
US $3.76 |
||
|
9161160618
|
9161160618
91611-60618 Bolt(For Oil Receiver Pipe) |
91611-60618 |
US $2.15 |
||
|
9161160818
|
9161160818
91611-60818
Bolt(For Oil Receiver Pipe)
|
91611-60818 |
— | ||
| replacement | |||||
|
9161160818
|
9161160818
90119-08830 Bolt(For Oil Receiver Pipe) |
90119-08830 |
US $1.79 |
||
|
9161260612
|
9161260612
91612-60612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91612-60612 |
US $2.62 |
||
| replacement | |||||
|
9161260612
|
9161260612
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.76 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
from US $1.16 |
||
