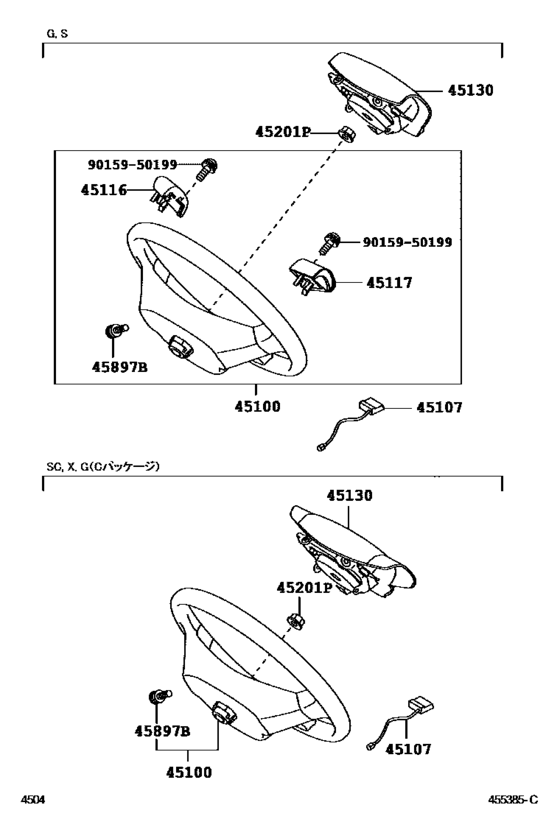

Steering Wheel ([12.2008 - ] ｵｰﾃﾞｨｵ ｽｲｯﾁﾅｼ (0812- )) Diagram Toyota PASSO
- Year
- 2008 - 2012
- Sales region
- Japan
- Frame
- M512E
- grade
- SC
- ENGINE
- 3SZVE
- Model
- PASSO SETTE
- From
- 12.2008
- To
- 03.2012
- Vehicle Model
- PASSO SETTE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45100
|
45100
45102-B1050-E0 Wheel Assy, SteeringSTEERING [12.2008 -] M502,512..SC,X ３本スポーク，ウレタン,DK. BROWN,TRIM4#; M502,512..G ３本スポーク，ウレタン,Ｃ パッケージ,DK. BROWN,TRIM4#; M502..G ３本スポーク，ウレタン,Ｃ パッケージ＆有り（ＶＳＣ）,DK. BROWN,TRIM4# |
45102-B1050-E0 |
US $346.53 |
||
|
45100
|
45100
45102-B1100-E1 Wheel Assy, SteeringSTEERING [12.2008 -] M502..SC,X ３本スポーク，ウレタン,有り（ＶＳＣ）＆オーディオ−０７ナビＨＤＤ＊４ＳＰ,DK. BROW N,TRIM4#; M502,512..SC,X ３本スポーク，ウレタン,オーディオ−０７ナビＨＤＤ＊４ＳＰ,DK. BROWN,TRIM4#; M502..G 魔SＳＰ,DK. BROWN,TRIM4#; M502,512..G ３本スポーク，ウレタン,Ｃ パッケージ＆オーディオ−０７ナビＨＤＤ＊４ＳＰ,DK. BROW N,TRIM4# |
45102-B1100-E1 |
US $461.55 |
||
|
45107
|
45107
45107-B2030 Wire Sub-Assy, Horn ButtonHORN BUTTON [12.2008 -] M502,512 |
45107-B2030 |
US $8.30 |
||
|
45130
|
45130
45130-B1140-E0 Button Assy, HornHORN [12.2008 -] M502,512..SC,X DK. BROWN,TRIM4#; M502,512..G Ｃ パッケージ,DK. BROWN,TRIM4#; M502..G Ｃ パッケージ＆有り（ＶＳＣ）,DK. BROWN,TRIM4# |
45130-B1140-E0 |
US $578.03 |
||
|
45130
|
45130
45130-B1190-E0 Button Assy, HornHORN [12.2008 -] M502,512..G,S DK. BROWN,TRIM4#; M502..SC,X 有り（ＶＳＣ）＆オーディオ−０７ナビＨＤＤ＊４ＳＰ,DK. BROWN,TRIM4#; M502,512..SC,X オーディオ−０７ナビＨＤＤ＊４ＳＰ,DK. BROWN,TRIM4# |
45130-B1190-E0 |
US $578.03 |
||
|
45201P
|
45201P
90041-70014 Nut, Steering Wheel Set[12.2008 -] M502,512 |
90041-70014 |
US $1.75 |
||
|
45897B
|
45897B
45897-B2020 Bolt, Steering Lock Set[12.2008 -] M502,512 |
45897-B2020 |
US $4.80 |
||
|
9015950199
|
9015950199
90159-50199 SCREW |
90159-50199 |
from US $0.67 |
