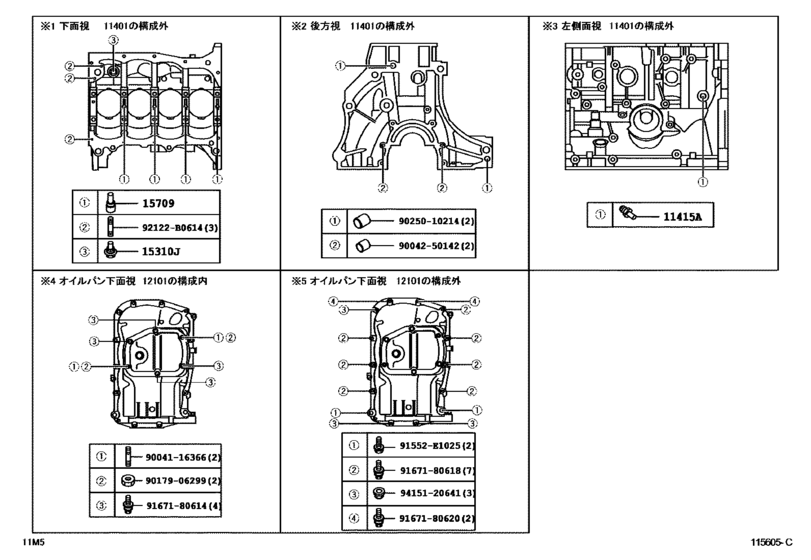

Cylinder Block ([12.2008 - ] (0812- )) Diagram Toyota PASSO
- Year
- 2008 - 2012
- Sales region
- Japan
- Frame
- M512E
- grade
- G
- ENGINE
- 3SZVE
- Model
- PASSO SETTE
- From
- 12.2008
- To
- 03.2012
- Vehicle Model
- PASSO SETTE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11415A
|
11415A
90048-08005 Plug, Water Drain Cock(For Cylinder Block)[12.2008 -] 3SZVE..M502,512 |
90048-08005 |
US $3.35 |
||
|
15310J
|
15310J
15310-97401 Regulator Assy, Oil[12.2008 -] 3SZVE..M502,512 |
15310-97401 |
from US $12.22 |
||
|
15709
|
15709
15790-87201
Nozzle Sub-Assy, Oil, No.1
[12.2008 - 07.2010] 3SZVE..M502,512 |
15790-87201 |
— | ||
| replacement | |||||
|
15709
|
15709
15790-B0010 Nozzle Sub-Assy, Oil, No.2OIL, NO.2 [12.2008 - 07.2010] 3SZVE..M502,512 |
15790-B0010 |
US $26.54 |
||
|
15709
|
15709
15790-B0010 Nozzle Sub-Assy, Oil, No.2OIL, NO.2 [08.2010 -] 3SZVE..M502,512 |
15790-B0010 |
US $26.54 |
||
|
91552E1025
|
91552E1025
91552-E1025 New Genuine Part |
91552-E1025 |
US $3.05 |
||
|
92122B0614
|
92122B0614
92122-B0614 Bolt, Stud(For Oil Strainer) |
92122-B0614 |
US $1.51 |
||
|
9004116366
|
9004116366
90041-16366 New Genuine Part |
90041-16366 |
US $2.33 |
||
|
9004250142
|
9004250142
90042-50142 Pin, Straight(For Timing Chain Cover) |
90042-50142 |
US $3.40 |
||
|
9017906299
|
9017906299
90179-06299 Nut, Wire Adjusting, No.1 |
90179-06299 |
from US $0.65 |
||
|
9025010214
|
9025010214
90250-10214 Pin, Straight(For End Plate) |
90250-10214 |
from US $1.35 |
||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.63 |
||
|
9167180618
|
9167180618
91671-80618 BOLT FLANGE WWSHER |
91671-80618 |
US $1.08 |
||
|
9167180620
|
9167180620
91671-80620 New Genuine Part |
91671-80620 |
US $1.08 |
||
|
9415120641
|
9415120641
94151-20641 New Genuine Part |
94151-20641 |
US $1.61 |
||
