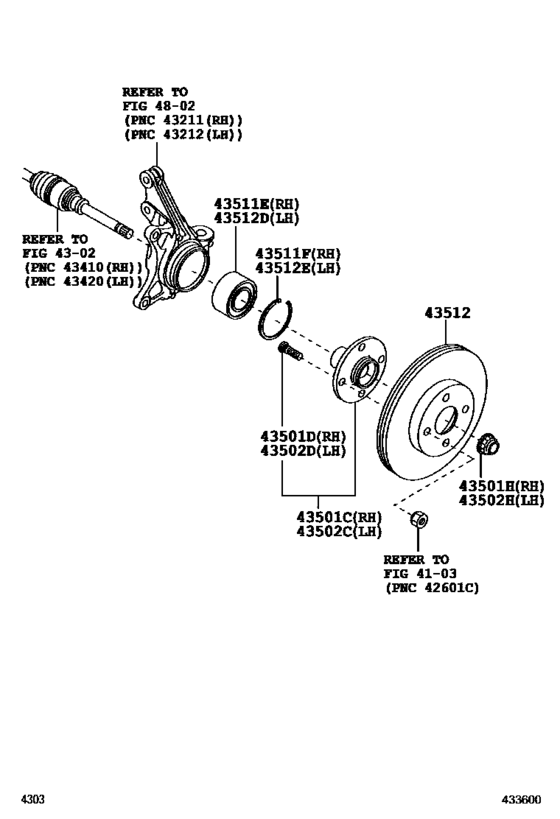

Front Axle Hub ([12.2008 - ] (0812- )) Diagram Toyota PASSO
- Year
- 2008 - 2012
- Sales region
- Japan
- Frame
- M512E
- grade
- G
- ENGINE
- 3SZVE
- Model
- PASSO SETTE
- From
- 12.2008
- To
- 03.2012
- Vehicle Model
- PASSO SETTE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
43501C
|
43501C
43502-B1030 Hub Sub-Assy, Front Axle[12.2008 -] M502,512 |
43502-B1030 |
US $94.35 |
||
|
43501D
|
43501D
90049-12056 Bolt, Hub (For Rear Axle)[12.2008 -] M502,512 |
90049-12056 |
from US $4.29 |
||
|
43501H
|
43501H
90177-22001 Nut (For Axle Shaft)[12.2008 -] M502,512 |
90177-22001 |
from US $2.30 |
||
|
43502C
|
43502C
43502-B1030 Hub Sub-Assy, Front Axle[12.2008 -] M502,512 |
43502-B1030 |
US $94.35 |
||
|
43502D
|
43502D
90049-12056 Bolt, Hub (For Rear Axle)[12.2008 -] M502,512 |
90049-12056 |
from US $4.29 |
||
|
43502H
|
43502H
90177-22001 Nut (For Axle Shaft)[12.2008 -] M502,512 |
90177-22001 |
from US $2.30 |
||
|
43511E
|
43511E
90043-63363 Bearing (For Front Axle Hub)[12.2008 -] M502,512 |
90043-63363 |
from US $67.70 |
||
|
43511F
|
43511F
90045-21188 Ring, Hole Snap (For Front Axle Hub Rh)HOLE SNAP (FOR FRONT AXLE HUB RH) [12.2008 -] M502,512 |
90045-21188 |
from US $1.03 |
||
|
43512
|
43512
43512-52130 Disc, Front[12.2008 -] M512; M502 有り（ＶＳＣ） |
43512-52130 |
US $155.80 |
||
|
43512D
|
43512D
90043-63363 Bearing (For Front Axle Hub)[12.2008 -] M502,512 |
90043-63363 |
from US $67.70 |
||
|
43512E
|
43512E
90045-21188 Ring, Hole Snap (For Front Axle Hub Rh)HOLE SNAP (FOR FRONT AXLE HUB RH) [12.2008 -] M502,512 |
90045-21188 |
from US $1.03 |
