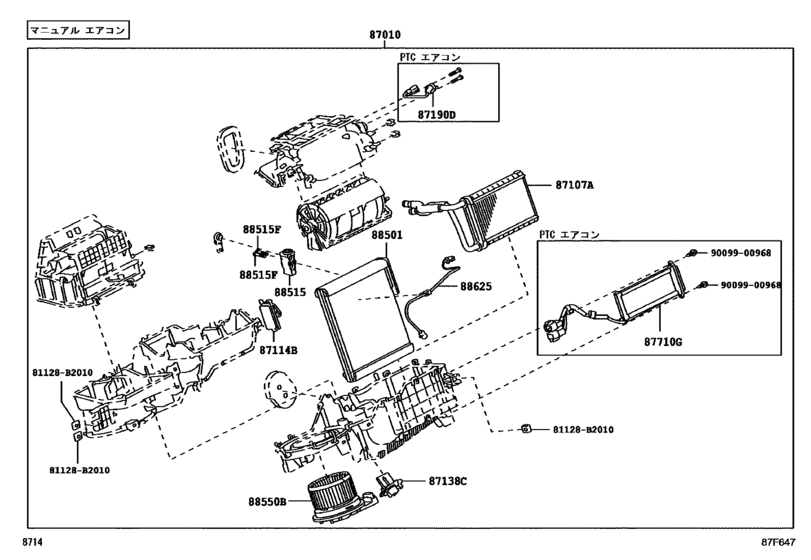

Heating & Air Conditioning - Cooler Unit ([04.2016 - ] ﾏﾆｭｱﾙ ｴｱｺﾝ (1604- )M700..X) Diagram Toyota PASSO
- Year
- 2016 - 2018
- Sales region
- Japan
- Frame
- M700A
- grade
- X
- ENGINE
- 1KRFE
- TRANSMISSION
- CVT
- Model
- PASSO
- From
- 04.2016
- Drive Train
- 2WD
- Vehicle Model
- PASSO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87010
|
87010
87010-B1390 Unit Assy, Air Conditioner[04.2016 -] M700,710..X 寒冷地仕様 |
87010-B1390 |
US $1,227.41 |
||
|
87010
|
87010
87010-B1400 Unit Assy, Air Conditioner[04.2016 -] M700,710..X |
87010-B1400 |
US $994.45 |
||
|
87010
|
87010
87010-B1410 Unit Assy, Air Conditioner[04.2016 -] M700,710..X Ｌ パッケージ＆寒冷地仕様; M700,710..X Ｇ パッケージ＆寒冷地仕様; M700,710..MODA 寒冷地仕様 |
87010-B1410 |
US $1,499.68 |
||
|
87010
|
87010
87010-B1420 Unit Assy, Air Conditioner[04.2016 -] M700,710..MODA; M700,710..X Ｌ パッケージ; M700,710..X Ｇ パッケージ |
87010-B1420 |
US $1,284.19 |
||
|
87107A
|
87107A
87107-B1030 Unit Sub-Assy, Heater Radiator[04.2016 -] M700,710 |
87107-B1030 |
US $237.33 |
||
|
87114B
|
87114B
87114-B1040 Cover, Heater[04.2016 -] M700,710 |
87114-B1040 |
US $2.91 |
||
|
87138C
|
87138C
87138-B2040 Resistor, Blower[04.2016 -] M700,710..MODA; M700,710..X Ｌ パッケージ; M700,710..X Ｌ パッケージ＆寒冷地仕様; M700,710..X Ｇ パッケージ; M700,710..X Ｇ パッケージ＆寒冷地仕様 |
87138-B2040 |
US $18.65 |
||
|
87138C
|
87138C
87138-B2050 Resistor, Blower[04.2016 -] M700,710..X |
87138-B2050 |
US $18.65 |
||
|
87190D
|
87190D
87190-B1060 Switch Assy, Temperature Control[04.2016 -] M700,710..X 寒冷地仕様 |
87190-B1060 |
US $27.08 |
||
|
87710G
|
87710G
87710-B1030 Quick Heater Assy[04.2016 -] M700,710..X Ｌ パッケージ＆寒冷地仕様; M700,710..X Ｇ パッケージ＆寒冷地仕様; M700,710 寒冷地仕様 |
87710-B1030 |
US $206.75 |
||
|
88501
|
88501
88501-B1040 Evaporator Sub-Assy, Cooler, No.1[04.2016 -] M700,710 |
88501-B1040 |
US $335.40 |
||
|
88515
|
88515
88515-B1050 Valve, Cooler Expansion[04.2016 -] M700,710 |
88515-B1050 |
US $137.76 |
||
|
88515F
|
88515F
C9909-97201 Bolt(For Cooler Expansion Valve)[04.2016 -] M700,710 |
C9909-97201 |
US $2.15 |
||
|
88550B
|
88550B
88550-B1070 Motor Assy, Blower[04.2016 -] M700,710 |
88550-B1070 |
US $240.24 |
||
|
88625
|
88625
88625-B1050 Thermistor, Cooler, No.1[04.2016 -] M700,710 |
88625-B1050 |
US $15 |
||
|
81128B2010
|
81128B2010
81128-B2010 Nut, Headlamp |
81128-B2010 |
US $2.48 |
||
|
9009900968
|
9009900968
90099-00968 Screw(For Air Conditioner Unit) |
90099-00968 |
US $0.80 |
