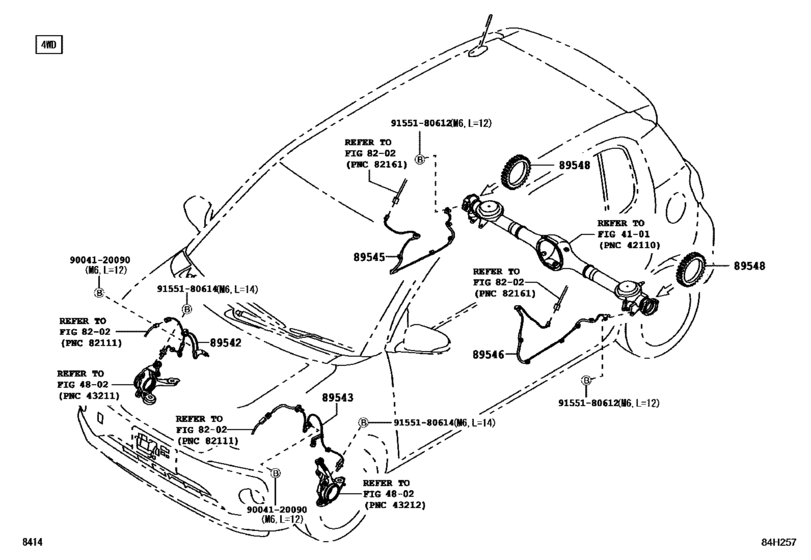

Abs & Vsc ([04.2016 - ] 4WD (1604- )M710) Diagram Toyota PASSO
- Year
- 2016 - 2018
- Sales region
- Japan
- Frame
- M710A
- grade
- X
- ENGINE
- 1KRFE
- TRANSMISSION
- CVT
- Model
- PASSO
- From
- 04.2016
- Drive Train
- 4WD
- Vehicle Model
- PASSO
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
89542
|
89542
89542-B1040 Sensor, Speed, Front RhSPEED, FRONT RH [04.2016 -] M700,710 |
89542-B1040 |
US $233.60 |
||
|
89543
|
89543
89543-B1050 Sensor, Speed, Front Lh[04.2016 -] M700,710 |
89543-B1050 |
US $233.60 |
||
|
89545
|
89545
89545-B1090 Sensor, Speed, Rear Rh[04.2016 -] M710 |
89545-B1090 |
US $196.56 |
||
|
89546
|
89546
89546-B1070 Sensor, Speed, Rear LhSPEED, REAR LH [04.2016 -] M710 |
89546-B1070 |
US $196.56 |
||
|
89548
|
89548
89547-97506 Rotor, Skid Control Sensor[04.2016 -] M710 |
89547-97506 |
from US $57.96 |
||
|
9004120090
|
9004120090
90041-20090 New Genuine Part |
90041-20090 |
US $0.73 |
||
|
9155180612
|
9155180612
91551-80612 Bolt (For Front Differential Breather Plug Oil Deflector) |
91551-80612 |
from US $0.63 |
||
|
9155180614
|
9155180614
91551-80614 Bolt(For Vacuum Transmitting Pipe) |
91551-80614 |
from US $0.65 |
