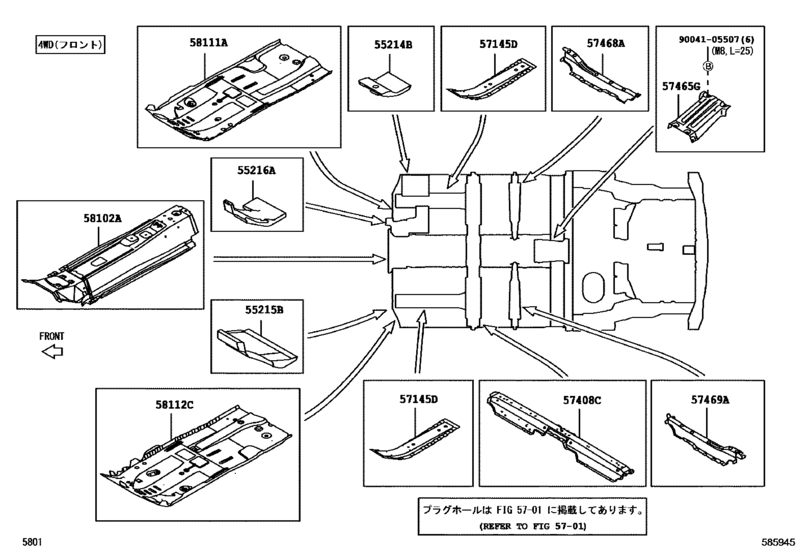

Floor Pan & Lower Back Panel ([04.2016 - ] (1604- )M710) Diagram Toyota PASSO
- Year
- 2016 - 2018
- Sales region
- Japan
- Frame
- M710A
- grade
- X
- ENGINE
- 1KRFE
- TRANSMISSION
- CVT
- Model
- PASSO
- From
- 04.2016
- Drive Train
- 4WD
- Vehicle Model
- PASSO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55214B
|
55214B
55214-B1050 Pad, Dash Panel Insulator, No.2DASH PANEL INSULATOR, NO.2 [04.2016 -] M700,710 |
55214-B1050 |
US $12.67 |
||
|
55215B
|
55215B
55215-B1050 Pad, Dash Panel Insulator, No.3[04.2016 -] M700,710 |
55215-B1050 |
US $25.19 |
||
|
55216A
|
55216A
55216-B1060 Pad, Dash Panel Insulator, No.4DASH PANEL INSULATOR, NO.4 [04.2016 -] M700,710 |
55216-B1060 |
US $12.67 |
||
|
57145D
|
57145D
57145-B1010 Reinforcement, Front Side Member To Floor Pan[04.2016 -] M700,710 |
57145-B1010 |
US $28.10 |
||
|
57408C
|
57408C
57051-B1050 Member Sub-Assy, Front Floor Cross[04.2016 -] M700,710 |
57051-B1050 |
US $218.40 |
||
|
57465G
|
57465G
57465-B1020 Gusset, Center Floor Crossmember[04.2016 -] M700,710 |
57465-B1020 |
US $55.62 |
||
|
57468A
|
57468A
57468-B1030 Bracket, Front Seat, Outside, Rear Rh[04.2016 -] M700,710 |
57468-B1030 |
US $94.64 |
||
|
57469A
|
57469A
57469-B1030 Bracket, Front Seat, Outside, Rear Lh[04.2016 -] M700,710 |
57469-B1030 |
US $94.64 |
||
|
58102A
|
58102A
58102-B1550 Reinforcement Sub-Assy, Front Floor[04.2016 -] M710 |
58102-B1550 |
US $371.28 |
||
|
58111A
|
58111A
58111-B1010 Pan, Front Floor, Rh[04.2016 -] M700,710 |
58111-B1010 |
US $189.28 |
||
|
58112C
|
58112C
58112-B1020 Panel, Front Floor, Lh[04.2016 -] M700,710 |
58112-B1020 |
US $189.28 |
||
|
9004105507
|
9004105507
90041-05507 New Genuine Part |
90041-05507 |
US $3.05 |
