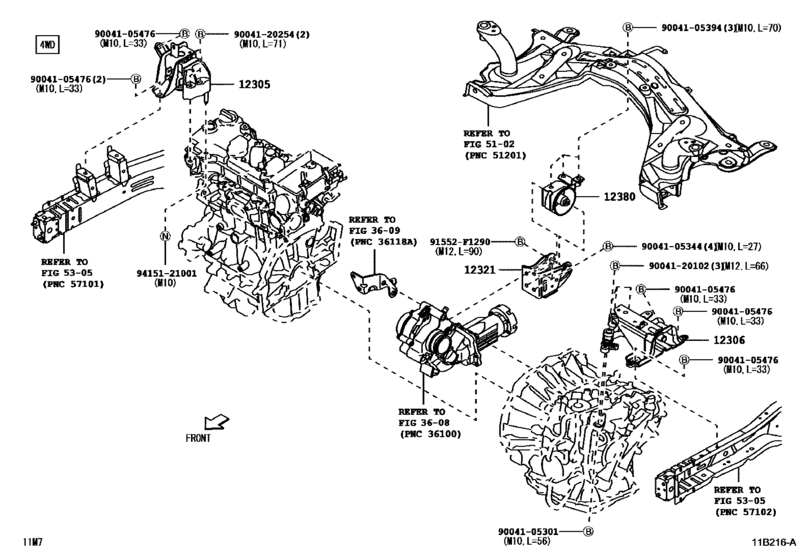

Mounting ([04.2016 - ] (1604- )1KRFE..M710) Diagram Toyota PASSO
- Year
- 2016 - 2018
- Sales region
- Japan
- Frame
- M710A
- grade
- X
- ENGINE
- 1KRFE
- TRANSMISSION
- CVT
- Model
- PASSO
- From
- 04.2016
- Drive Train
- 4WD
- Vehicle Model
- PASSO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12305
|
12305
12305-B1140
Insulator Sub-Assy, Engine Mounting, Rh
[04.2016 -] 1KRFE..M700,710 |
12305-B1140 |
— | ||
| replacement | |||||
|
12305
|
12305
12305-B1141 Insulator Sub-Assy, Engine Mounting, Rh[04.2016 -] 1KRFE..M700,710 |
12305-B1141 |
US $119.72 |
||
|
12306
|
12306
12306-B1140 Insulator Sub-Assy, Engine Mounting, Lh[04.2016 -] 1KRFE..M700,710 |
12306-B1140 |
US $108.24 |
||
|
12321
|
12321
12321-B1020 Bracket, Engine Mounting, Rear, No.1[04.2016 -] 1KRFE..M710 |
12321-B1020 |
US $48.08 |
||
|
12380
|
12380
12380-B1070 Insulator Assy, Engine Mounting, Rear[04.2016 -] 1KRFE..M710 |
12380-B1070 |
US $83.16 |
||
|
91552F1290
|
91552F1290
91552-F1290 New Genuine Part |
91552-F1290 |
US $3.20 |
||
|
9004105301
|
9004105301
90041-05301 BOLT WASHER BASED |
90041-05301 |
from US $1.16 |
||
|
9004105344
|
9004105344
90041-05344 New Genuine Part |
90041-05344 |
US $3.20 |
||
|
9004105394
|
9004105394
90041-05394 New Genuine Part |
90041-05394 |
US $4.66 |
||
|
9004105476
|
9004105476
90041-05476 New Genuine Part |
90041-05476 |
US $4.84 |
||
|
9004120102
|
9004120102
90041-20102 New Genuine Part |
90041-20102 |
US $6.27 |
||
|
9004120254
|
9004120254
90041-20254 New Genuine Part |
90041-20254 |
US $7.17 |
||
|
9415121001
|
9415121001
94151-21001 Nut(For Front Suspension Upper Arm Rh) |
94151-21001 |
from US $0.93 |
||
