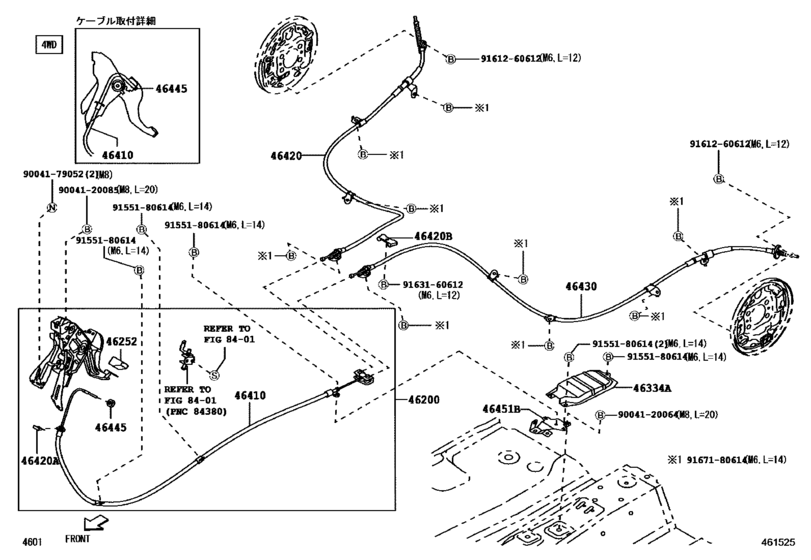

Parking Brake & Cable ([04.2016 - ] 4WD (1604- )M710) Diagram Toyota PASSO
- Year
- 2016 - 2018
- Sales region
- Japan
- Frame
- M710A
- grade
- X
- ENGINE
- 1KRFE
- TRANSMISSION
- CVT
- Model
- PASSO
- From
- 04.2016
- Drive Train
- 4WD
- Vehicle Model
- PASSO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
46200
|
46200
46200-B1012 Pedal Assy, Parking Brake Control[04.2016 -] M700,710 |
46200-B1012 |
US $174.72 |
||
|
46252
|
46252
46252-B2020 Pad, Parking Pedal[04.2016 -] M700,710 |
46252-B2020 |
US $11.29 |
||
|
46334A
|
46334A
57889-B1010 Protector, Parking Brake Cable Joint[04.2016 -] M700,710 |
57889-B1010 |
US $8.59 |
||
|
46410
|
46410
46410-B1011 Cable Assy, Parking Brake, No.1[04.2016 -] M700,710 |
46410-B1011 |
US $49.50 |
||
|
46420
|
46420
46420-B1100 Cable Assy, Parking Brake, No.2[04.2016 -] M710 |
46420-B1100 |
US $49.50 |
||
|
46420A
|
46420A
90044-63280 Clamp, No.1(For Parking Brake Cable)[02.2017 -] M700,710 |
90044-63280 |
US $2.33 |
||
|
46420A
|
46420A
90044-65531 Clamp, No.1(For Parking Brake Cable)[04.2016 - 01.2017] M700,710 |
90044-65531 |
US $2.77 |
||
|
46420B
|
46420B
90044-61832 Clamp, No.2(For Parking Brake Cable)[04.2016 -] M700,710 |
90044-61832 |
US $3.35 |
||
|
46430
|
46430
46430-B1100 Cable Assy, Parking Brake, No.3[04.2016 -] M710 |
46430-B1100 |
US $49.50 |
||
|
46445
|
46445
90041-78060 Nut, Parking Brake Cable Adjusting, No.2[04.2016 -] M700,710 Ｍ６ |
90041-78060 |
US $3.40 |
||
|
46451B
|
46451B
58253-B1040 Bracket, Parking Brake Cable SupportPARKING BRAKE CABLE SUPPORT [04.2016 -] M700,710 |
58253-B1040 |
US $13.10 |
||
|
9004120064
|
9004120064
90041-20064 Bolt, W/washer |
90041-20064 |
US $2.18 |
||
|
9004120085
|
9004120085
90041-20085 Bolt(For Front Stabilizer) |
90041-20085 |
US $1.43 |
||
|
9004179052
|
9004179052
90041-79052 NUT |
90041-79052 |
US $3.76 |
||
|
9155180614
|
9155180614
91551-80614 Bolt(For Vacuum Transmitting Pipe) |
91551-80614 |
from US $0.65 |
||
|
9161260612
|
9161260612
91612-60612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91612-60612 |
US $2.62 |
||
| replacement | |||||
|
9161260612
|
9161260612
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.76 |
||
|
9163160612
|
9163160612
91631-60612
New Genuine Part
|
91631-60612 |
— | ||
| replacement | |||||
|
9163160612
|
9163160612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.70 |
||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.63 |
||
