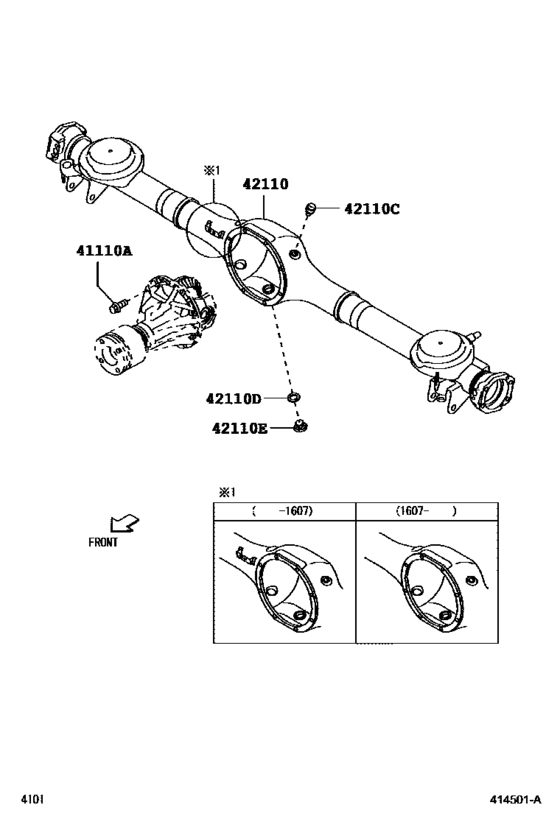

Rear Axle Housing & Differential ([04.2016 - ] (1604- )M710) Diagram Toyota PASSO
- Year
- 2016 - 2018
- Sales region
- Japan
- Frame
- M710A
- grade
- X
- ENGINE
- 1KRFE
- TRANSMISSION
- CVT
- Model
- PASSO
- From
- 04.2016
- Drive Train
- 4WD
- Vehicle Model
- PASSO
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
41110A
|
41110A
90041-01651 Bolt, No.1 (For Rear Differential Carrier Set)[04.2016 -] M710 Ｍ８，Ｌ＝２０ |
90041-01651 |
US $3.05 |
||
|
42110
|
42110
42110-B1060 Housing Assy, Rear AxleREAR AXLE [04.2016 - 07.2016] M710 |
42110-B1060 |
US $454.27 |
||
|
42110
|
42110
42110-B1061 Housing Assy, Rear Axle[07.2016 -] M710 |
42110-B1061 |
US $454.27 |
||
|
42110C
|
42110C
90049-15026 Plug(For Clutch Housing)[04.2016 -] M710 |
90049-15026 |
from US $1.16 |
||
|
42110D
|
42110D
90044-30237 Gasket (For Rear Axle Housing Filler Plug)[04.2016 -] M710 |
90044-30237 |
from US $0.74 |
||
| replacement | |||||
|
42110D
|
42110D
12157-10010 Gasket (For Drain Plug)[04.2016 -] M710 |
12157-10010 |
from US $0.72 |
||
|
42110E
|
42110E
90043-41046 Plug(For Rear Differential Carrier)[04.2016 -] M710 |
90043-41046 |
US $3.76 |
||
