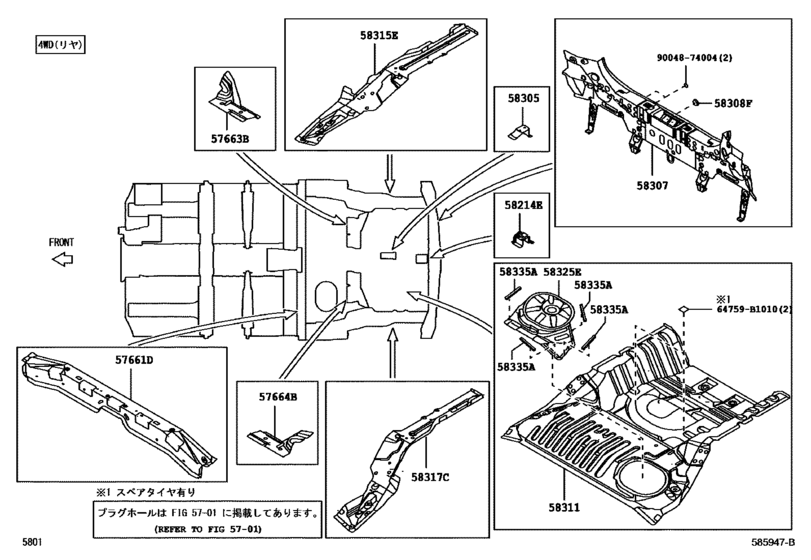

Floor Pan & Lower Back Panel ([04.2016 - ] (1604- )M710) Diagram Toyota PASSO
- Year
- 2016 - 2018
- Sales region
- Japan
- Frame
- M710A
- grade
- MODA
- ENGINE
- 1KRFE
- TRANSMISSION
- CVT
- Model
- PASSO MODA
- From
- 04.2016
- Drive Train
- 4WD
- Vehicle Model
- PASSO MODA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57661D
|
57661D
57661-B1040 Member, Rear Floor Cross, Front[04.2016 -] M700,710 |
57661-B1040 |
US $94.64 |
||
|
57663B
|
57663B
57663-B1030 Panel, Rear Floor Side, Rear Rh[04.2016 -] M700,710 |
57663-B1030 |
US $39.75 |
||
|
57664B
|
57664B
57664-B1030 Panel, Rear Floor Side, Rear Lh[04.2016 -] M700,710 |
57664-B1030 |
US $55.44 |
||
|
58214E
|
58214E
58214-B1010 Bracket, Jack Support[04.2016 -] M700,710 テンパ タイヤ; M700,710 セーフティパック＆テンパ タイヤ; M700,710 テンパ タイヤ＆ＳＲＳエアバッグ（ウンテンセキ／ジョシュセキ，サイド，エアカーテン ） |
58214-B1010 |
US $19.66 |
||
|
58305
|
58305
58351-B1030 Bracket Sub-Assy, Spare Wheel Clamp[04.2016 -] M700,710 |
58351-B1030 |
US $20.33 |
||
|
58307
|
58307
58307-B1060 Panel Sub-Assy, Body Lower Back[04.2016 -] M700,710 |
58307-B1060 |
US $241.60 |
||
|
58308F
|
58308F
90048-71198 Plug, Hole(For Lower Back)[04.2016 -] M700,710 ナシ（プリクラッシュ システム） |
90048-71198 |
US $1.43 |
||
|
58311
|
58311
58311-B1040 Pan, Rear Floor[04.2016 -] M710 |
58311-B1040 |
US $230.05 |
||
|
58315E
|
58315E
58315-B1030 Extension Rear Floor Side Panel, Front Rh[04.2016 -] M700,710 |
58315-B1030 |
US $41.35 |
||
|
58317C
|
58317C
58317-B1030 Extension, Rear Floor Side Panel, Rear Lh[04.2016 -] M700,710 |
58317-B1030 |
US $57.12 |
||
|
58325E
|
58325E
58325-B1010 Cover, Rear Floor Service Hole[04.2016 -] M710 |
58325-B1010 |
US $44.26 |
||
|
58335A
|
58335A
58335-B1010 Seal, Rear Floor Side Service Hole Cover[04.2016 -] M710 |
58335-B1010 |
US $1.75 |
||
|
64759B1010
|
64759B1010
64759-B1010 Cover, Shock Absorber Head |
64759-B1010 |
US $9.50 |
||
|
9004874004
|
9004874004
90048-74004 Cover, Hole(For Lower Back) |
90048-74004 |
US $0.90 |
