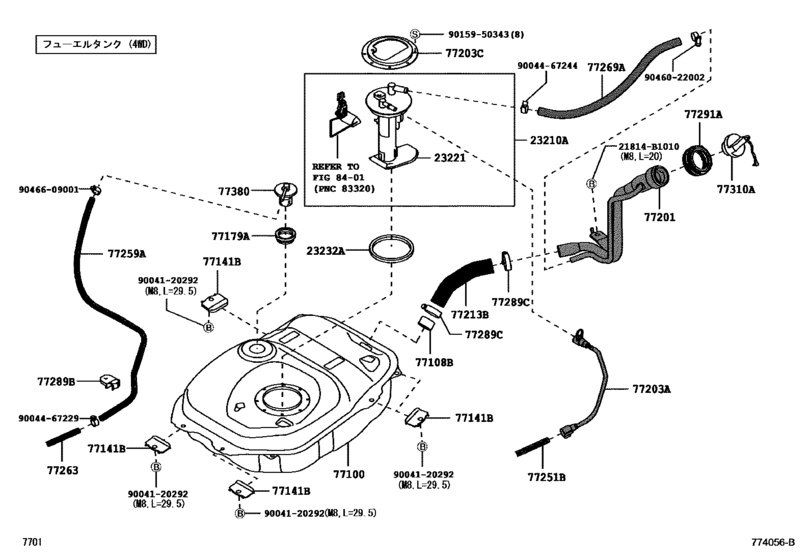

Fuel Tank & Tube ([04.2016 - ] (1604- )M710) Diagram Toyota PASSO
- Year
- 2016 - 2018
- Sales region
- Japan
- Frame
- M710A
- grade
- MODA
- ENGINE
- 1KRFE
- TRANSMISSION
- CVT
- Model
- PASSO MODA
- From
- 04.2016
- Drive Train
- 4WD
- Vehicle Model
- PASSO MODA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23210A
|
23210A
23210-B1120 Pump Assy, Fuel W/motor & Bracket[04.2016 -] 1KRFE..M710 |
23210-B1120 |
US $465.92 |
||
|
23221
|
23221
23100-B1080 Pump Assy, Fuel[04.2016 -] 1KRFE..M710 |
23100-B1080 |
US $556.92 |
||
|
23232A
|
23232A
23232-87401 Gasket, Fuel Pump Bracket[04.2016 -] 1KRFE..M710 |
23232-87401 |
US $7.17 |
||
|
77100
|
77100
77001-B1051 Tank Assy, Fuel[04.2016 -] M710 |
77001-B1051 |
US $400.92 |
||
|
77108B
|
77108B
77108-B2010 Valve Sub-Assy, Fuel Tank Filler Check[04.2016 -] M710 |
77108-B2010 |
US $8.42 |
||
|
77141B
|
77141B
77141-B1020 Plate, Fuel Tank Side[04.2016 -] M710 |
77141-B1020 |
US $10.04 |
||
|
77179A
|
77179A
77179-33010 Gasket, Fuel Tank Evap/vent Tube[04.2016 -] M710 |
77179-33010 |
from US $3.20 |
||
|
77201
|
77201
77201-B1110 Pipe Sub-Assy, Fuel Tank InletFUEL TANK INLET [04.2016 -] M710 |
77201-B1110 |
US $103.38 |
||
|
77203A
|
77203A
77203-B1020 Tube Sub-Assy, Fuel Suction[04.2016 -] M710 |
77203-B1020 |
US $26.64 |
||
|
77203C
|
77203C
23265-B2010 Bracket, Fuel Pump[04.2016 -] M710 |
23265-B2010 |
US $8.26 |
||
|
77213B
|
77213B
77213-B1020 Hose, Fuel Tank To Filler Pipe[04.2016 -] M710 |
77213-B1020 |
US $27.81 |
||
|
77251B
|
77251B
77251-B1110 Tube, Fuel Main[04.2016 -] M700,710 |
77251-B1110 |
US $69.22 |
||
|
77259A
|
77259A
77259-B2010 Hose, Fuel(For Breather Tube)[04.2016 -] M710 |
77259-B2010 |
US $13.40 |
||
|
77263
|
77263
77263-B1120 Tube, Fuel Tank To Canister, No.3[04.2016 -] M700,710 |
77263-B1120 |
US $52.92 |
||
|
77269A
|
77269A
77269-B1020 Hose, Fuel, No.1 (For Breather Tube)[04.2016 -] M710 |
77269-B1020 |
US $21.84 |
||
|
77289B
|
77289B
77289-B2010 Clamp, Fuel Tube, No.3[04.2016 -] M710 |
77289-B2010 |
US $2.91 |
||
|
77289C
|
77289C
90044-60129 Clamp Sub-Assy, Fuel Hose[04.2016 -] M700,710 |
90044-60129 |
US $5.73 |
||
|
77291A
|
77291A
77291-B2060 Shield, Fuel Tank Filler Pipe[04.2016 -] M700,710 |
77291-B2060 |
US $15.41 |
||
|
77310A
|
77310A
77300-52030 Cap Assy, Fuel Tank[04.2016 -] M700,710 |
77300-52030 |
from US $25.57 |
||
|
77380
|
77380
77380-B2010 Valve Assy, Fuel Cut Off[04.2016 -] M710 |
77380-B2010 |
US $14.16 |
||
|
21814B1010
|
21814B1010
21814-B1010 Bolt, Fuel Inlet |
21814-B1010 |
US $3.23 |
||
|
9004120292
|
9004120292
90041-20292 New Genuine Part |
90041-20292 |
US $3.40 |
||
|
9004467229
|
9004467229
90044-67229 New Genuine Part |
90044-67229 |
US $3.76 |
||
|
9004467244
|
9004467244
90044-67244 Clamp Or Clip, Hose(For Water By-Pass Pipe) |
90044-67244 |
US $14.34 |
||
|
9015950343
|
9015950343
90159-50343 SCREW, W-WASHER |
90159-50343 |
from US $0.67 |
||
|
9046022002
|
9046022002
90460-22002 CLAMP |
90460-22002 |
US $9.50 |
||
| replacement | |||||
|
9046022002
|
9046022002
90460-22001 CLAMP |
90460-22001 |
from US $4.12 |
||
|
9046609001
|
9046609001
90466-09001 Clip(For Fuel Vapor Feed Hose, No.1) |
90466-09001 |
US $2.33 |
||
