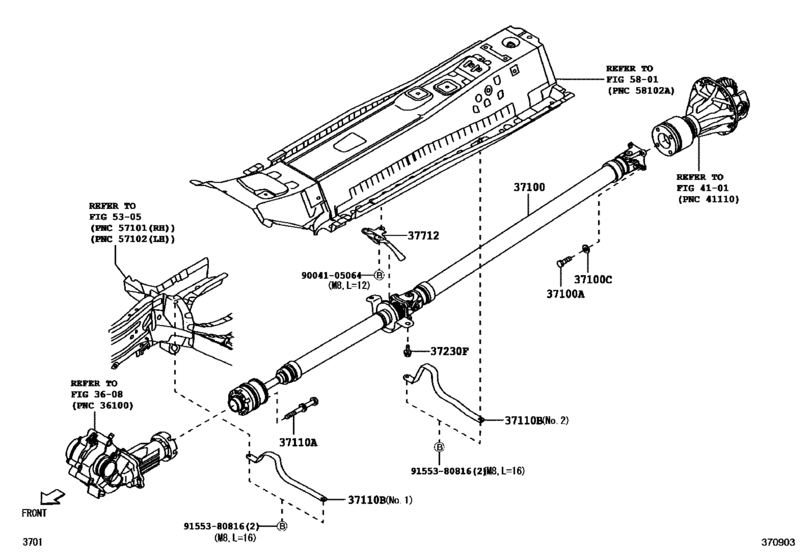

Propeller Shaft & Universal Joint ([04.2016 - ] (1604- )M710) Diagram Toyota PASSO
- Year
- 2016 - 2018
- Sales region
- Japan
- Frame
- M710A
- grade
- MODA
- ENGINE
- 1KRFE
- TRANSMISSION
- CVT
- Model
- PASSO MODA
- From
- 04.2016
- Drive Train
- 4WD
- Vehicle Model
- PASSO MODA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
37100
|
37100
37100-B1090 Shaft Assy, Propeller W/center Bearing[04.2016 -] M710 |
37100-B1090 |
US $1,025.02 |
||
|
37100A
|
37100A
90041-01681 Bolt, No.1 (For Propeller Shaft & Differential Setting)[04.2016 -] M710 Ｍ１０，Ｌ＝３０ |
90041-01681 |
US $3.20 |
||
|
37100C
|
37100C
90042-06065 Washer, No.1 (For Propeller Shaft & Differential Setting)[04.2016 -] M710 |
90042-06065 |
US $1.60 |
||
|
37110A
|
37110A
90041-01684 Bolt (For Propeller Shaft)[04.2016 -] M710 Ｍ８，Ｌ＝１０２．７ |
90041-01684 |
US $6.26 |
||
|
37110B
|
37110B
51569-B1010 Guard, Propeller Shaft[04.2016 -] M710 ＮＯ．１ |
51569-B1010 |
US $39.82 |
||
|
37110B
|
37110B
51569-B1020 Guard, Propeller Shaft[04.2016 -] M710 ＮＯ．２ |
51569-B1020 |
US $50.23 |
||
|
37230F
|
37230F
91652-B1025
Bolt, No.1 (For Center Support Bearing)
[04.2016 -] M710 ＊１０−１．２５ＰＸ２５−２５,Ｍ１０，Ｌ＝２５ |
91652-B1025 |
— | ||
| replacements | |||||
|
37230F
|
37230F
91651-B1025 Bolt, Winch R0Ller Bracket[04.2016 -] M710 ＊１０−１．２５ＰＸ２５−２５,Ｍ１０，Ｌ＝２５ |
91651-B1025 |
US $1.38 |
||
|
37230F
|
37230F
55539-52060
Cover, Spare Switch Hole
[04.2016 -] M710 ＊１０−１．２５ＰＸ２５−２５,Ｍ１０，Ｌ＝２５ |
55539-52060 |
— | ||
|
37712
|
37712
37710-B1010 Guard, Propeller Shaft[04.2016 -] M710 |
37710-B1010 |
US $13.83 |
||
|
9004105064
|
9004105064
90041-05064 New Genuine Part |
90041-05064 |
US $1.75 |
||
|
9155380816
|
9155380816
91553-80816 Bolt (For Transmission Control Cable Bracket) |
91553-80816 |
from US $0.82 |
||
