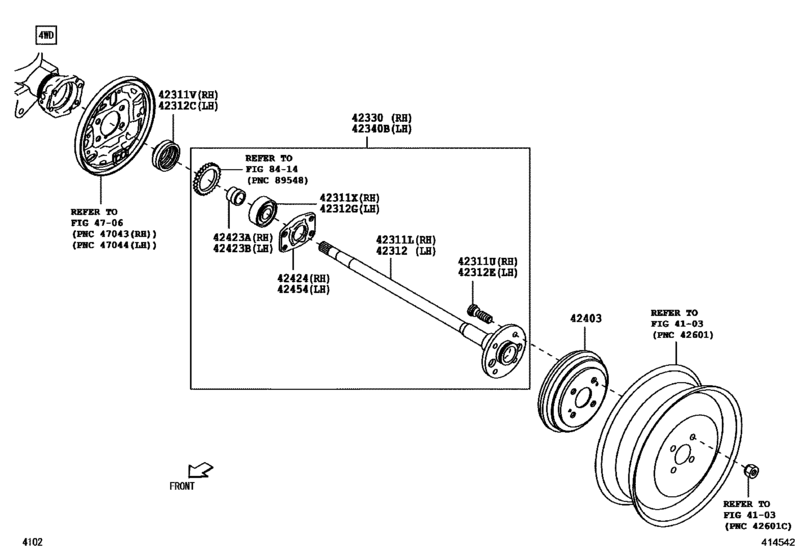

Rear Axle Shaft & Hub ([04.2016 - ] (1604- )M710) Diagram Toyota PASSO
- Year
- 2016 - 2018
- Sales region
- Japan
- Frame
- M710A
- grade
- MODA
- ENGINE
- 1KRFE
- TRANSMISSION
- CVT
- Model
- PASSO MODA
- From
- 04.2016
- Drive Train
- 4WD
- Vehicle Model
- PASSO MODA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42311L
|
42311L
42311-B1020 Shaft, Rear Axle, Rh[04.2016 -] M710 |
42311-B1020 |
US $174.72 |
||
|
42311U
|
42311U
90049-12055 Bolt, Hub (For Rear Axle Rh)[04.2016 -] M710 Ｍ１２，Ｌ＝３９ |
90049-12055 |
from US $3.88 |
||
|
42311V
|
42311V
90043-11291 Seal, Oil (For Rear Axle Shaft)[04.2016 -] M710 |
90043-11291 |
US $6.45 |
||
|
42311X
|
42311X
90043-63402 Bearing (For Rear Axle Shaft Rh)[04.2016 -] M710 |
90043-63402 |
from US $30.91 |
||
|
42312
|
42312
42312-B1020 Shaft, Rear Axle, Lh[04.2016 -] M710 |
42312-B1020 |
US $174.72 |
||
|
42312C
|
42312C
90043-11291 Seal, Oil (For Rear Axle Shaft)[04.2016 -] M710 |
90043-11291 |
US $6.45 |
||
|
42312E
|
42312E
90049-12055 Bolt, Hub (For Rear Axle Rh)[04.2016 -] M710 Ｍ１２，Ｌ＝３９ |
90049-12055 |
from US $3.88 |
||
|
42312G
|
42312G
90043-63402 Bearing (For Rear Axle Shaft Rh)[04.2016 -] M710 |
90043-63402 |
from US $30.91 |
||
|
42330
|
42330
42301-B1060 Shaft Assy, Rear Drive, Rh[04.2016 -] M710 |
42301-B1060 |
US $286.83 |
||
|
42340B
|
42340B
42302-B1060 Shaft Assy, Rear Drive, Lh[04.2016 -] M710 |
42302-B1060 |
US $286.83 |
||
|
42403
|
42403
42431-B2080 Drum Sub-Assy, Rear Brake[04.2016 -] M710 |
42431-B2080 |
US $168 |
||
|
42423A
|
42423A
42423-B2010 Retainer, Rear Axle Bearing, InnerREAR AXLE BEARING, INNER [04.2016 -] M710 |
42423-B2010 |
US $23.18 |
||
|
42423B
|
42423B
42423-B2010 Retainer, Rear Axle Bearing, InnerREAR AXLE BEARING, INNER [04.2016 -] M710 |
42423-B2010 |
US $23.18 |
||
|
42424
|
42424
42424-97501 Retainer, Rear Axle Bearing, Outer, Rh[04.2016 -] M710 |
42424-97501 |
US $9.46 |
||
|
42454
|
42454
42424-97501 Retainer, Rear Axle Bearing, Outer, Rh[04.2016 -] M710 |
42424-97501 |
US $9.46 |
