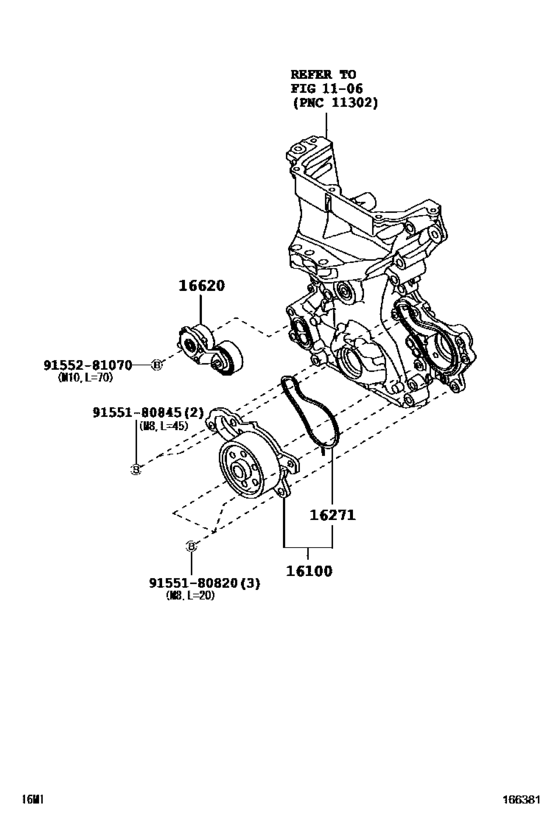

Water Pump ([04.2016 - ] (1604- )) Diagram Toyota PASSO
- Year
- 2016 - 2018
- Sales region
- Japan
- Frame
- M710A
- grade
- MODA
- ENGINE
- 1KRFE
- TRANSMISSION
- CVT
- Model
- PASSO MODA
- From
- 04.2016
- Drive Train
- 4WD
- Vehicle Model
- PASSO MODA
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16100
|
16100
16100-80012
Pump Assy, Engine Water
[04.2016 -] 1KRFE..M700,710 |
16100-80012 |
— | ||
| replacement | |||||
|
16100
|
16100
16100-80017 Pump Assy, Engine Water[04.2016 -] 1KRFE..M700,710 |
16100-80017 |
from US $81.02 |
||
|
16271
|
16271
16271-40030 Gasket, Water Pump[04.2016 -] 1KRFE..M700,710 |
16271-40030 |
US $3.40 |
||
|
16620
|
16620
16620-40020 Tensioner Assy, V-Ribbed Belt[04.2016 -] 1KRFE..M700,710 |
16620-40020 |
US $140.08 |
||
| replacement | |||||
|
16620
|
16620
16620-40021 Tensioner Assy, V-Ribbed Belt[04.2016 -] 1KRFE..M700,710 |
16620-40021 |
US $161.60 |
||
|
9155180820
|
9155180820
91551-80820 Bolt, W/washer (For Transmission Oil Pump Cover) |
91551-80820 |
from US $0.76 |
||
|
9155180845
|
9155180845
91551-80845 BOLT FLANGE |
91551-80845 |
from US $1.16 |
||
|
9155281070
|
9155281070
91552-81070 Bolt(For Alternator) |
91552-81070 |
from US $1.48 |
||
