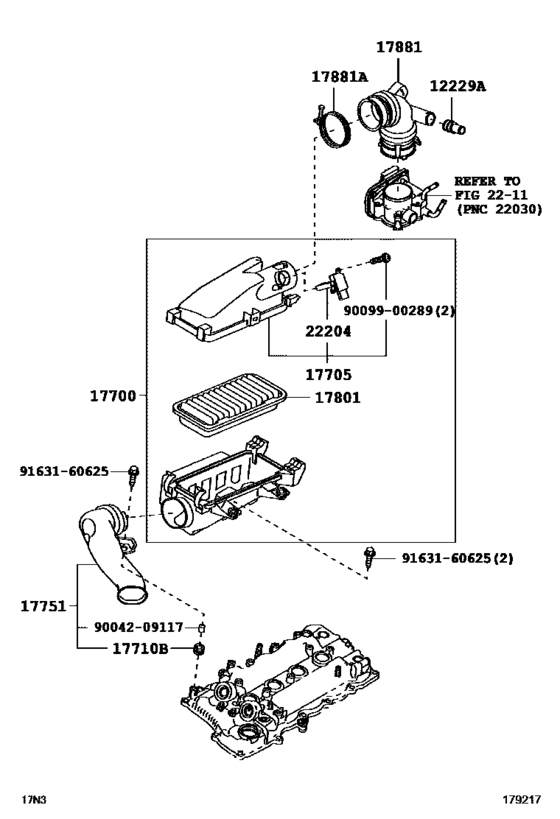

Air Cleaner ([02.2010 - ] (1002- )1NRFE) Diagram Toyota PASSO
- Year
- 2010 - 2016
- Sales region
- Japan
- Frame
- NGC30
- grade
- G
- ENGINE
- 1NRFE
- Model
- PASSO
- From
- 02.2010
- To
- 04.2016
- Vehicle Model
- PASSO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12229A
|
12229A
12229-21010 Pipe, VentilationVENTILATION [02.2010 - 06.2012] 1NRFE..NGC30 |
12229-21010 |
US $9.50 |
||
|
17700
|
17700
17700-47140 Cleaner Assy, AirAIR [02.2010 - 08.2011] 1NRFE..NGC30 |
17700-47140 |
US $279.55 |
||
| replacement | |||||
|
17700
|
17700
17700-47141 Cleaner Assy, Air[02.2010 - 08.2011] 1NRFE..NGC30 |
17700-47141 |
US $232.96 |
||
|
17700
|
17700
17700-47141 Cleaner Assy, Air[09.2011 - 06.2012] 1NRFE..NGC30 |
17700-47141 |
US $232.96 |
||
|
17705
|
17705
17705-47101
Cap Sub-Assy, Air Cleaner
[02.2010 - 08.2011] 1NRFE..NGC30 |
17705-47101 |
— | ||
| replacement | |||||
|
17705
|
17705
17705-47102
Cap Sub-Assy, Air Cleaner
[02.2010 - 08.2011] 1NRFE..NGC30 |
17705-47102 |
— | ||
|
17705
|
17705
17705-47102
Cap Sub-Assy, Air Cleaner
[09.2011 - 06.2012] 1NRFE..NGC30 |
17705-47102 |
— | ||
|
17710B
|
17710B
90044-80392
Bush(For Air Cleaner)
[02.2010 - 06.2012] 1NRFE..NGC30 |
90044-80392 |
— | ||
|
17751
|
17751
17751-B1010 Inlet, Air Cleaner, No.1AIR CLEANER, NO.1 [02.2010 - 06.2012] 1NRFE..NGC30 |
17751-B1010 |
US $23.73 |
||
|
17801
|
17801
17801-21030 Element Sub-Assy, Air Cleaner Filter[02.2010 - 06.2012] 1NRFE..NGC30 |
17801-21030 |
from US $25.71 |
||
|
17881
|
17881
17881-47050
Hose, Air Cleaner, No.1
[02.2010 - 06.2012] 1NRFE..NGC30 |
17881-47050 |
— | ||
|
17881A
|
17881A
96111-10690 Clamp, Hose[02.2010 - 06.2012] 1NRFE..NGC30 |
96111-10690 |
from US $2.87 |
||
|
22204
|
22204
22204-28010 Meter Sub-Assy, Intake Air FlowINTAKE AIR FLOW [09.2011 - 06.2012] 1NRFE..NGC30 |
22204-28010 |
from US $130.15 |
||
|
22204
|
22204
22204-37010
Meter Sub-Assy, Intake Air Flow
[02.2010 - 08.2011] 1NRFE..NGC30 |
22204-37010 |
— | ||
| replacement | |||||
|
22204
|
22204
22204-28010 Meter Sub-Assy, Intake Air FlowINTAKE AIR FLOW [02.2010 - 08.2011] 1NRFE..NGC30 |
22204-28010 |
from US $130.15 |
||
|
9004209117
|
9004209117
90042-09117
Spacer(For Air Cleaner)
|
90042-09117 |
— | ||
|
9009900289
|
9009900289
90099-00289 SCREW |
90099-00289 |
from US $0.65 |
||
|
9163160625
|
9163160625
91631-60625 BOLT WWASHER |
91631-60625 |
US $1.61 |
||
