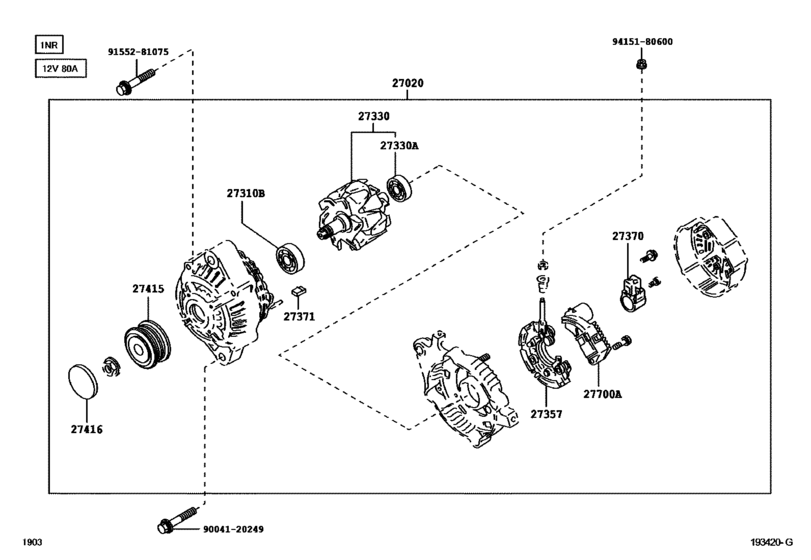

Alternator ([02.2010 - ] (1002- )1NRFE) Diagram Toyota PASSO
- Year
- 2010 - 2016
- Sales region
- Japan
- Frame
- NGC30
- grade
- G
- ENGINE
- 1NRFE
- Model
- PASSO
- From
- 02.2010
- To
- 04.2016
- Vehicle Model
- PASSO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-B1110 Alternator Assy[02.2010 - 06.2012] 1NRFE..NGC30 １２Ｖ ８０Ａ |
27060-B1110 |
US $1,039.58 |
||
|
27310B
|
27310B
27791-87703
Bearing(For Alternator Drive End Frame)
[02.2010 - 02.2011] 1NRFE..NGC30 |
27791-87703 |
— | ||
| replacement | |||||
|
27310B
|
27310B
9004C-37002 Bearing(For Alternator Drive End Frame)[02.2010 - 02.2011] 1NRFE..NGC30 |
9004C-37002 |
US $15.59 |
||
|
27310B
|
27310B
9004C-37002 Bearing(For Alternator Drive End Frame)[03.2011 - 06.2012] 1NRFE..NGC30 |
9004C-37002 |
US $15.59 |
||
|
27310B
|
27310B
9004C-37008 Bearing(For Alternator Drive End Frame)[09.2013 - 04.2014] 1NRFE..NGC30 |
9004C-37008 |
from US $14.12 |
||
|
27330
|
27330
27330-B1010
Rotor Assy, Alternator
[02.2010 - 06.2012] 1NRFE..NGC30 |
27330-B1010 |
— | ||
| replacement | |||||
|
27330
|
27330
27330-B1020
Rotor Assy, Alternator
[02.2010 - 06.2012] 1NRFE..NGC30 |
27330-B1020 |
— | ||
|
27330
|
27330
27330-B1020
Rotor Assy, Alternator
[12.2013 - 04.2014] 1NRFE..NGC30 |
27330-B1020 |
— | ||
|
27330A
|
27330A
27791-87708 Bearing(For Alternator Rotor)[02.2010 - 06.2012] 1KRFE,1NRFE..KGC3#,NGC30 |
27791-87708 |
US $11.11 |
||
|
27357
|
27357
27357-B1010
Holder, Alternator, W/rectifier
[02.2010 - 06.2012] 1NRFE..NGC30 |
27357-B1010 |
— | ||
|
27370
|
27370
27370-B1010
Holder Assy, Alternator Brush
[02.2010 - 06.2012] 1NRFE..NGC30 |
27370-B1010 |
— | ||
|
27371
|
27371
27371-B1010
Brush, Alternator
[10.2010 - 06.2012] 1NRFE..NGC30 |
27371-B1010 |
— | ||
|
27415
|
27415
27415-B1010
Pulley, Alternator W/clutch
[02.2010 - 06.2012] 1NRFE..NGC30 |
27415-B1010 |
— | ||
| replacement | |||||
|
27415
|
27415
27415-B1011 Pulley, Alternator W/clutch[02.2010 - 06.2012] 1NRFE..NGC30 |
27415-B1011 |
US $93.72 |
||
|
27415
|
27415
27415-B1011 Pulley, Alternator W/clutch[07.2013 - 04.2014] 1NRFE..NGC30 |
27415-B1011 |
US $93.72 |
||
|
27416
|
27416
27416-0W050 Cap, Alternator Pulley[02.2010 - 06.2012] 1NRFE..NGC30 |
27416-0W050 |
from US $3.74 |
||
|
27700A
|
27700A
27700-B1040 Regulator Assy, GeneratorGENERATOR [02.2010 - 06.2012] 1NRFE..NGC30 |
27700-B1040 |
US $253.34 |
||
|
9004120249
|
9004120249
90041-20249 New Genuine Part |
90041-20249 |
US $3.06 |
||
|
9155281075
|
9155281075
91552-81075 Bolt, No.1(For Alternator) |
91552-81075 |
US $3.58 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.65 |
||
