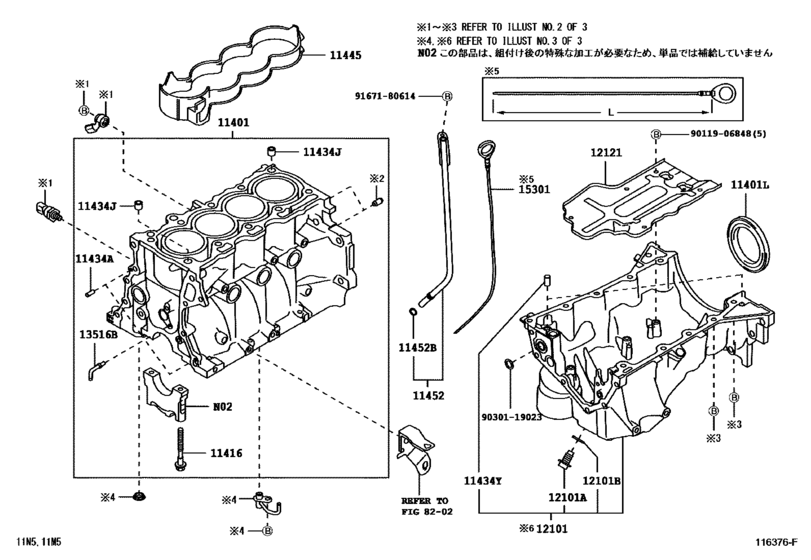

Cylinder Block ([02.2010 - ] (1002- )1NRFE) Diagram Toyota PASSO
- Year
- 2010 - 2016
- Sales region
- Japan
- Frame
- NGC30
- grade
- G
- ENGINE
- 1NRFE
- Model
- PASSO
- From
- 02.2010
- To
- 04.2016
- Vehicle Model
- PASSO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11401
|
11401
11410-49016 Block Sub-Assy, CylinderCYLINDER [02.2010 - 05.2010] 1NRFE..NGC30 |
11410-49016 |
US $1,834.56 |
||
| replacement | |||||
|
11401
|
11401
11410-49045 Block Sub-Assy, Cylinder[02.2010 - 05.2010] 1NRFE..NGC30 |
11410-49045 |
US $1,387.57 |
||
|
11401
|
11401
11410-49017 Block Sub-Assy, Cylinder[06.2010 - 06.2012] 1NRFE..NGC30 |
11410-49017 |
US $1,528.80 |
||
| replacement | |||||
|
11401
|
11401
11410-49045 Block Sub-Assy, Cylinder[06.2010 - 06.2012] 1NRFE..NGC30 |
11410-49045 |
US $1,387.57 |
||
|
11401
|
11401
11410-49018 Block Sub-Assy, Cylinder[07.2013 - 09.2013] 1NRFE..NGC30 |
11410-49018 |
US $1,528.80 |
||
| replacement | |||||
|
11401
|
11401
11410-49045 Block Sub-Assy, Cylinder[07.2013 - 09.2013] 1NRFE..NGC30 |
11410-49045 |
US $1,387.57 |
||
|
11401
|
11401
11410-49045 Block Sub-Assy, Cylinder[09.2013 - 04.2014] 1NRFE..NGC30 |
11410-49045 |
US $1,387.57 |
||
|
11401L
|
11401L
90311-78003
Seal, Engine Rear Oil
[02.2010 - 06.2012] 1NRFE..NGC30 |
90311-78003 |
— | ||
| replacement | |||||
|
11401L
|
11401L
90311-78005 Seal, Engine Rear Oil[02.2010 - 06.2012] 1NRFE..NGC30 |
90311-78005 |
from US $59.30 |
||
|
11401L
|
11401L
90311-78005 Seal, Engine Rear Oil[05.2013 - 04.2014] 1NRFE..NGC30 |
90311-78005 |
from US $59.30 |
||
|
11416
|
11416
90910-02175 Bolt(For Crankshaft Bearing Cap Set)[02.2010 - 06.2012] 1NRFE..NGC30 |
90910-02175 |
US $3.40 |
||
|
11434A
|
11434A
90250-04097 Pin, Straight(For Camshaft Housing Rh)[02.2010 - 06.2012] 1NRFE..NGC30 長さ＝１２，外径＝４．０ |
90250-04097 |
US $0.90 |
||
|
11434J
|
11434J
90253-13017 Pin, Ring W/head[02.2010 - 06.2012] 1NRFE..NGC30 |
90253-13017 |
from US $1.31 |
||
|
11434Y
|
11434Y
90250-08074 Pin, Straight(For Timing Gear Case)[02.2010 - 06.2012] 1NRFE..NGC30 |
90250-08074 |
US $1.79 |
||
|
11445
|
11445
11445-47010 Spacer, Cylinder Block Water JacketCYLINDER BLOCK WATER JACKET [02.2010 - 06.2012] 1NRFE..NGC30 |
11445-47010 |
US $22.86 |
||
|
11452
|
11452
11409-47011 Guide, Oil Level Gage[05.2010 - 06.2012] 1NRFE..NGC30 |
11409-47011 |
US $21.69 |
||
| replacement | |||||
|
11452
|
11452
11409-47012 Guide, Oil Level Gage[05.2010 - 06.2012] 1NRFE..NGC30 |
11409-47012 |
US $16.31 |
||
|
11452
|
11452
11409-47012 Guide, Oil Level Gage[07.2012 - 04.2014] 1NRFE..NGC30 |
11409-47012 |
US $16.31 |
||
|
11452
|
11452
11409-B1070 Guide, Oil Level GageOIL LEVEL GAGE [02.2010 - 05.2010] 1NRFE..NGC30 |
11409-B1070 |
US $18.05 |
||
| replacement | |||||
|
11452
|
11452
11409-47012 Guide, Oil Level Gage[02.2010 - 05.2010] 1NRFE..NGC30 |
11409-47012 |
US $16.31 |
||
|
11452B
|
11452B
96741-19010 Ring, O(For Oil Level Gage Guide)[02.2010 - 06.2012] 1NRFE..NGC30 |
96741-19010 |
from US $2.13 |
||
|
12101
|
12101
12101-47110 Pan Sub-Assy, Oil[05.2010 - 12.2011] 1NRFE..NGC30 タイプ Ｂ |
12101-47110 |
US $576.58 |
||
| replacements | |||||
|
12101
|
12101
12101-47111 Pan Sub-Assy, Oil[05.2010 - 12.2011] 1NRFE..NGC30 タイプ Ｂ |
12101-47111 |
US $505.44 |
||
|
12101
|
12101
91551-F0855 Bolt(For Cylinder Head Set Sub)[05.2010 - 12.2011] 1NRFE..NGC30 タイプ Ｂ |
91551-F0855 |
from US $0.91 |
||
|
12101
|
12101
12101-47111 Pan Sub-Assy, Oil[12.2011 - 06.2012] 1NRFE..NGC30 |
12101-47111 |
US $505.44 |
||
|
12101
|
12101
12101-B1050 Pan Sub-Assy, OilOIL [02.2010 - 05.2010] 1NRFE..NGC30 タイプ Ａ |
12101-B1050 |
US $599.87 |
||
| replacements | |||||
|
12101
|
12101
11409-47012 Guide, Oil Level Gage[02.2010 - 05.2010] 1NRFE..NGC30 タイプ Ａ |
11409-47012 |
US $16.31 |
||
|
12101
|
12101
12101-47111 Pan Sub-Assy, Oil[02.2010 - 05.2010] 1NRFE..NGC30 タイプ Ａ |
12101-47111 |
US $505.44 |
||
|
12101
|
12101
15301-47050 Gage Sub-Assy, Oil LevelOIL LEVEL [02.2010 - 05.2010] 1NRFE..NGC30 タイプ Ａ |
15301-47050 |
US $9.49 |
||
|
12101
|
12101
91551-F0855 Bolt(For Cylinder Head Set Sub)[02.2010 - 05.2010] 1NRFE..NGC30 タイプ Ａ |
91551-F0855 |
from US $0.91 |
||
|
12101A
|
12101A
90341-12032 Plug(For Oil Pan Drain)[02.2010 - 06.2012] 1KRFE..KGC3#; 1NRFE..NGC30 |
90341-12032 |
from US $3.15 |
||
|
12101B
|
12101B
90430-12031 Gasket (For Oil Pan Drain Plug)[02.2010 - 06.2012] 1KRFE..KGC3#; 1NRFE..NGC30 |
90430-12031 |
from US $0.80 |
||
|
12121
|
12121
12121-B1060 Plate, Oil Pan Baffle, No.1OIL PAN BAFFLE, NO.1 [02.2010 - 06.2012] 1NRFE..NGC30 |
12121-B1060 |
US $32.50 |
||
|
13516B
|
13516B
13516-40010 Jet, Oil[02.2010 - 06.2012] 1KRFE..KGC3#; 1NRFE..NGC30 |
13516-40010 |
US $4.80 |
||
|
15301
|
15301
15301-47050 Gage Sub-Assy, Oil LevelOIL LEVEL [05.2010 - 06.2012] 1NRFE..NGC30 長さ＝５４５ |
15301-47050 |
US $9.49 |
||
|
15301
|
15301
15301-B1110 Gage Sub-Assy, Oil LevelOIL LEVEL [02.2010 - 05.2010] 1NRFE..NGC30 長さ＝５４３ |
15301-B1110 |
US $18.05 |
||
|
9011906848
|
9011906848
90119-06848 BOLT WWASHER |
90119-06848 |
from US $0.70 |
||
|
9030119023
|
9030119023
90301-19023 Ring, O(For Oil Pan) |
90301-19023 |
from US $2.45 |
||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.63 |
||
