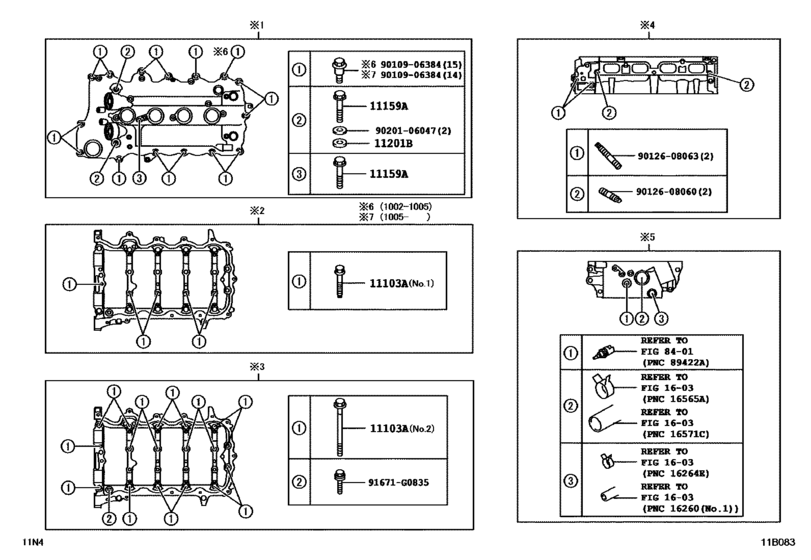

Cylinder Head ([02.2010 - ] (1002- )1NRFE) Diagram Toyota PASSO
- Year
- 2010 - 2016
- Sales region
- Japan
- Frame
- NGC30
- grade
- G
- ENGINE
- 1NRFE
- Model
- PASSO
- From
- 02.2010
- To
- 04.2016
- Vehicle Model
- PASSO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11103A
|
11103A
90105-08455 Bolt(For Camshaft Housing Set)[02.2010 - 06.2012] 1NRFE..NGC30 ＮＯ．２ |
90105-08455 |
US $2.15 |
||
|
11103A
|
11103A
90119-07009 Bolt(For Camshaft Housing Set)[02.2010 - 06.2012] 1NRFE..NGC30 ＮＯ．１ |
90119-07009 |
from US $0.82 |
||
|
11159A
|
11159A
91551-80635 Bolt(For Head To Camshaft Bearing Cap)[02.2010 - 06.2012] 1NRFE..NGC30 |
91551-80635 |
from US $0.76 |
||
|
11201B
|
11201B
90210-12011 Washer, Seal(For Cylinder Head Cover)SEAL(FOR CYLINDER HEAD COVER) [02.2010 - 06.2012] 1NRFE..NGC30 |
90210-12011 |
US $1.43 |
||
|
91671G0835
|
91671G0835
91671-G0835 New Genuine Part |
91671-G0835 |
US $1.31 |
||
|
9010906384
|
9010906384
90109-06384 Bolt(For Cylinder Head Cover) |
90109-06384 |
from US $0.74 |
||
|
9012608060
|
9012608060
90126-08060 Bolt, Stud(For Intake Manifold To Cylinder Head)STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD) |
90126-08060 |
from US $2.34 |
||
|
9012608063
|
9012608063
90126-08063 Bolt, Stud(For Exhaust Manifold To Cylinder Head)STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD) |
90126-08063 |
from US $0.82 |
||
|
9020106047
|
9020106047
90201-06047 New Genuine Part |
90201-06047 |
US $1.43 |
