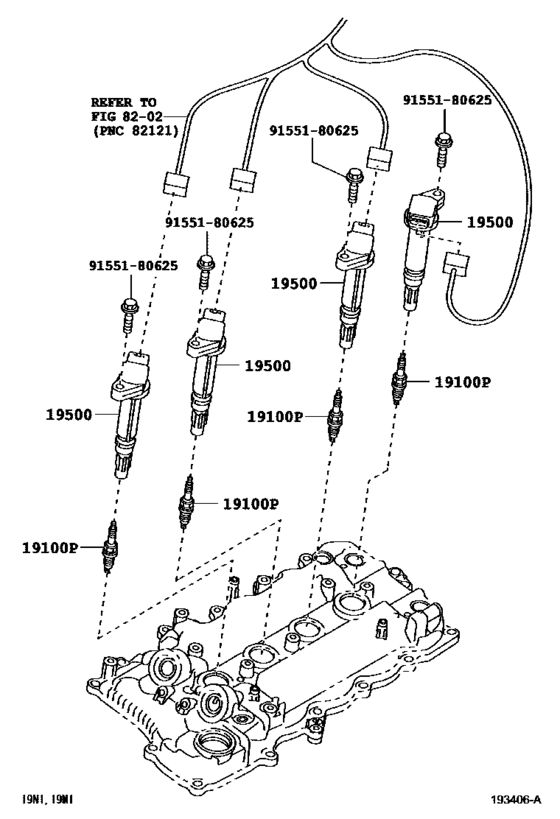

Ignition Coil & Spark Plug ([02.2010 - ] (1002- )1NRFE) Diagram Toyota PASSO
- Year
- 2010 - 2016
- Sales region
- Japan
- Frame
- NGC30
- grade
- G
- ENGINE
- 1NRFE
- Model
- PASSO
- From
- 02.2010
- To
- 04.2016
- Vehicle Model
- PASSO
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
19100P
|
19100P
90919-01253
Spark Plug (Denso SC20HR11 Iridium)
[02.2010 - 06.2012] 1NRFE..NGC30 ＳＣ２０ＨＲ１１ |
90919-01253 |
— | ||
| replacement | |||||
|
19100P
|
19100P
90919-01275 Spark Plug (Denso SC16HR11 Iridium)[02.2010 - 06.2012] 1NRFE..NGC30 ＳＣ２０ＨＲ１１ |
90919-01275 |
from US $21.72 |
||
|
19100P
|
19100P
90919-01275 Spark Plug (Denso SC16HR11 Iridium)[11.2013 - 04.2014] 1NRFE..NGC30 ＳＣ１６ＨＲ１１ |
90919-01275 |
from US $21.72 |
||
|
19500
|
19500
19500-B1020
Coil Assy, Ignition
[02.2010 - 06.2012] 1NRFE..NGC30 |
19500-B1020 |
— | ||
| replacement | |||||
|
19500
|
19500
19500-B1021 Coil Assy, Ignition[02.2010 - 06.2012] 1NRFE..NGC30 |
19500-B1021 |
US $137.76 |
||
|
9155180625
|
9155180625
91551-80625 Bolt(For Camshaft Housing Set) |
91551-80625 |
from US $0.63 |
||
