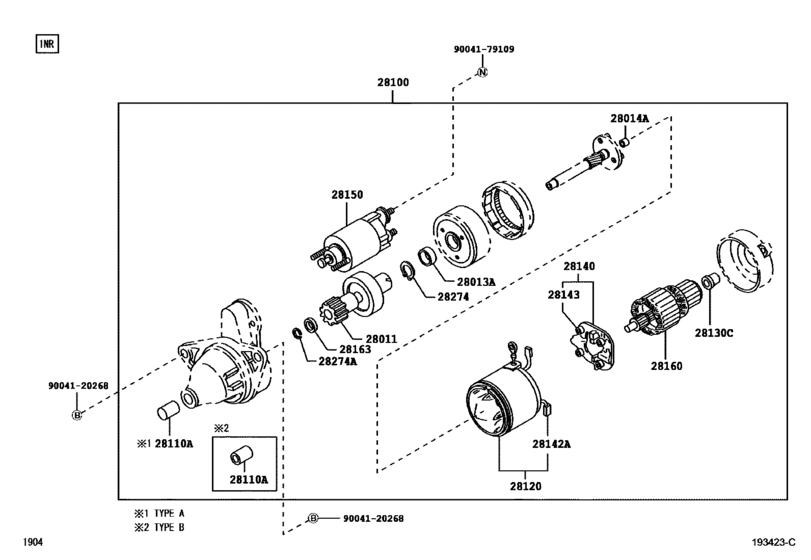

Starter ([02.2010 - ] (1002- )1NRFE) Diagram Toyota PASSO
- Year
- 2010 - 2016
- Sales region
- Japan
- Frame
- NGC30
- grade
- G
- ENGINE
- 1NRFE
- Model
- PASSO
- From
- 02.2010
- To
- 04.2016
- Vehicle Model
- PASSO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-B1030 Clutch Sub-Assy, StarterSTARTER [02.2010 - 06.2012] 1NRFE..NGC30 |
28011-B1030 |
US $77.17 |
||
|
28013A
|
28013A
90099-10181
Bearing, Starter Center & Shock Absorber, No.2
[02.2010 - 06.2012] 1NRFE..NGC30 |
90099-10181 |
— | ||
|
28014A
|
28014A
90099-10180
Bush Or Bearing, Planet Carrier Shaft
[02.2010 - 06.2012] 1NRFE..NGC30 |
90099-10180 |
— | ||
|
28100
|
28100
28100-B1030 Starter Assy[02.2010 - 06.2012] 1NRFE..NGC30 １２Ｖ ０．８ＫＷ |
28100-B1030 |
US $541.63 |
||
|
28100
|
28100
28100-B1040 Starter Assy[02.2010 - 06.2012] 1NRFE..NGC30 １２Ｖ １．０ＫＷ,寒冷地仕様 |
28100-B1040 |
US $618.80 |
||
|
28110A
|
28110A
28277-87201
Bearing(For Starter Housing)
[02.2010 - 06.2012] 1NRFE..NGC30 タイプ Ａ; 1KRFE..KGC3# 寒冷地仕様,タイプ Ａ |
28277-87201 |
— | ||
|
28110A
|
28110A
9004C-03001 Bearing(For Starter Housing)[02.2010 - 06.2012] 1NRFE..NGC30 タイプ Ｂ |
9004C-03001 |
US $9.90 |
||
|
28120
|
28120
28120-87216
Yoke Assy, Starter
[02.2010 - 06.2012] 1NRFE..NGC30 寒冷地仕様 |
28120-87216 |
— | ||
|
28120
|
28120
28120-87401
Yoke Assy, Starter
[02.2010 - 06.2012] 1NRFE..NGC30 |
28120-87401 |
— | ||
|
28130C
|
28130C
90099-10183
Bearing, Starter Flange
[02.2010 - 06.2012] 1NRFE..NGC30; 1KRFE..KGC3# 寒冷地仕様 |
90099-10183 |
— | ||
|
28140
|
28140
28140-87202
Holder Assy, Starter Brush
[02.2010 - 06.2012] 1NRFE..NGC30; 1KRFE..KGC3# 寒冷地仕様 |
28140-87202 |
— | ||
|
28142A
|
28142A
28142-87204 Brush, Starter[02.2010 - 06.2012] 1NRFE..NGC30; 1KRFE..KGC3# 寒冷地仕様 |
28142-87204 |
US $3.49 |
||
|
28143
|
28143
28143-87202
Spring, Starter Brush
[02.2010 - 06.2012] 1NRFE..NGC30; 1KRFE..KGC3# 寒冷地仕様 |
28143-87202 |
— | ||
|
28150
|
28150
28150-87536 Switch Assy, Magnet Starter[02.2010 - 06.2012] 1KRFE,1NRFE..KGC3#,NGC30 |
28150-87536 |
US $109.20 |
||
|
28160
|
28160
28160-87207 Armature Assy, Starter[02.2010 - 06.2012] 1NRFE..NGC30 |
28160-87207 |
US $180.54 |
||
|
28160
|
28160
28160-87208 Armature Assy, Starter[02.2010 - 06.2012] 1KRFE,1NRFE..KGC3#,NGC30 寒冷地仕様 |
28160-87208 |
US $180.54 |
||
|
28163
|
28163
28163-87202
Nut Or Collar, Pinion Stop, Starter
[02.2010 - 06.2012] 1NRFE..NGC30; 1KRFE..KGC3# 寒冷地仕様 |
28163-87202 |
— | ||
|
28274
|
28274
90096-90030
Ring, Snap, Starter Clutch Housing Disc
[02.2010 - 06.2012] 1NRFE..NGC30 |
90096-90030 |
— | ||
|
28274A
|
28274A
28274-87503
Ring, Snap(For Starter Pinion Stop Nut)
[02.2010 - 06.2012] 1NRFE..NGC30 |
28274-87503 |
— | ||
|
9004120268
|
9004120268
90041-20268 New Genuine Part |
90041-20268 |
US $5.24 |
||
|
9004179109
|
9004179109
90041-79109 New Genuine Part |
90041-79109 |
US $1.31 |
