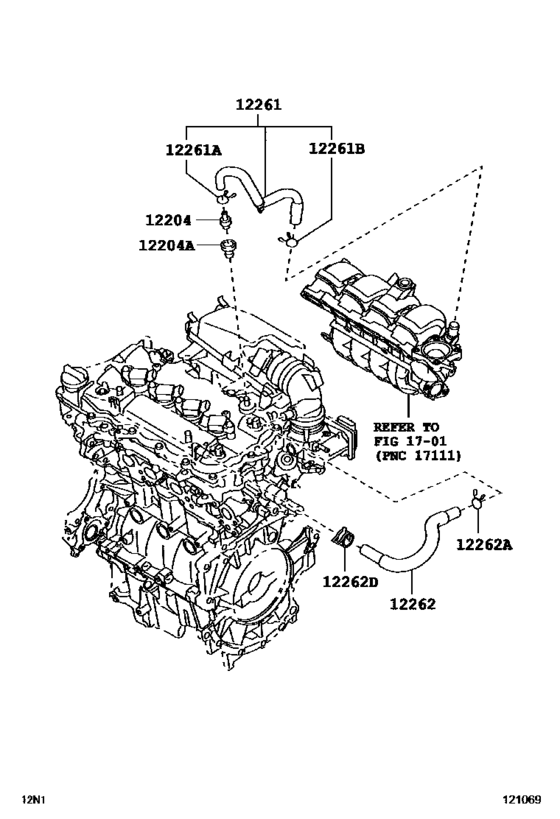

Ventilation Hose ([02.2010 - ] (1002- )1NRFE) Diagram Toyota PASSO
- Year
- 2010 - 2016
- Sales region
- Japan
- Frame
- NGC30
- grade
- G
- ENGINE
- 1NRFE
- Model
- PASSO
- From
- 02.2010
- To
- 04.2016
- Vehicle Model
- PASSO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12204
|
12204
12204-47010 Valve Sub-Assy, VentilationVENTILATION [02.2010 - 06.2012] 1NRFE..NGC30 |
12204-47010 |
US $21.67 |
||
|
12204
|
12204
12204-47060 Valve Sub-Assy, Ventilation[07.2014 -] 1NRFE..NGC30 |
12204-47060 |
US $11.36 |
||
|
12204A
|
12204A
11249-47020 Grommet(For Ventilation System)[12.2014 -] 1NRFE..NGC30 |
11249-47020 |
US $15.77 |
||
|
12204A
|
12204A
90480-18016 Grommet(For Ventilation System)[02.2010 - 06.2012] 1NRFE..NGC30 |
90480-18016 |
US $3.23 |
||
|
12261
|
12261
12261-B1050 Hose, VentilationVENTILATION [02.2010 - 06.2012] 1NRFE..NGC30 |
12261-B1050 |
US $41.35 |
||
|
12261A
|
12261A
90467-15120 Clip Or Clamp(For Ventilation Hose)[02.2010 - 06.2012] 1KRFE..KGC3#; 1NRFE..NGC30 |
90467-15120 |
from US $0.93 |
||
|
12261B
|
12261B
90044-66041 Clip Or Clamp(For Ventilation Hose)[02.2010 - 06.2012] 1NRFE..NGC30 |
90044-66041 |
US $3.64 |
||
|
12262
|
12262
12262-47010 Hose, Ventilation, No.2VENTILATION, NO.2 [02.2010 - 06.2012] 1NRFE..NGC30 |
12262-47010 |
US $12.81 |
||
|
12262A
|
12262A
90467-21004 Clip Or Clamp(For Ventilation Hose)[02.2010 - 06.2012] 1NRFE..NGC30 |
90467-21004 |
from US $1.24 |
||
|
12262D
|
12262D
96136-52201 Clip(For Ventilation Hose No.2)[02.2010 - 06.2012] 1NRFE..NGC30 |
96136-52201 |
from US $2.89 |
