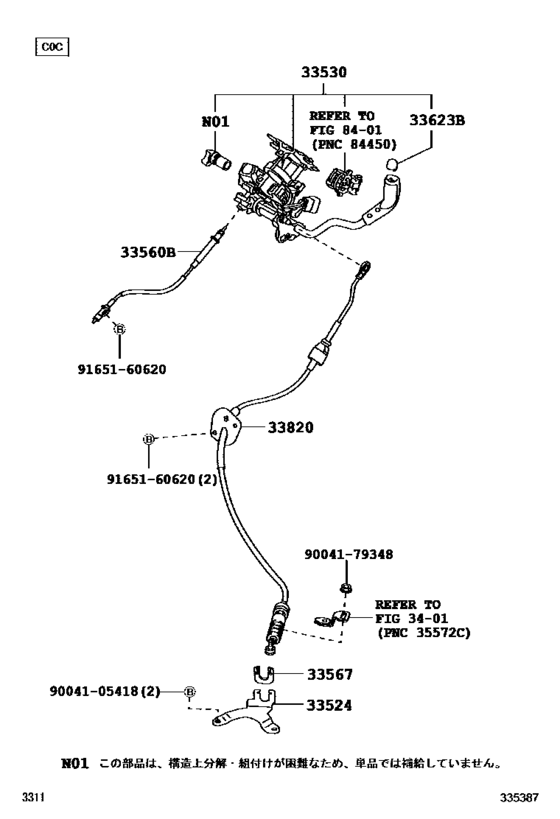

Control Shaft & Crossshaft ([02.2010 - ] C0C (1002- )NGC30) Diagram Toyota PASSO
- Year
- 2010 - 2016
- Sales region
- Japan
- Frame
- NGC30
- grade
- HANA
- ENGINE
- 1NRFE
- Model
- PASSO
- From
- 02.2010
- To
- 04.2016
- Vehicle Model
- PASSO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33524
|
33524
33524-B1010 Bracket, Control Lever Housing Support (For Column Shift)CONTROL LEVER HOUSING SUPPORT (FOR COLUMN SHIFT) [02.2010 - 06.2012] NGC30 |
33524-B1010 |
US $14.27 |
||
|
33530
|
33530
33530-B1110-E0 Lever Assy, Shift (For Column Shift)SHIFT (FOR COLUMN SHIFT) [02.2010 - 06.2012] NGC30 EBONY BROWN,TRIM4# |
33530-B1110-E0 |
US $480.48 |
||
|
33560B
|
33560B
33560-B1080 Cable Assy, Shift Lock ReleaseSHIFT LOCK RELEASE [02.2010 - 05.2011] KGC3#,NGC30 |
33560-B1080 |
US $33.05 |
||
| replacement | |||||
|
33560B
|
33560B
33560-B1082 Cable Assy, Shift Lock Release[02.2010 - 05.2011] KGC3#,NGC30 |
33560-B1082 |
US $112.11 |
||
|
33560B
|
33560B
33560-B1081 Cable Assy, Shift Lock Release[06.2011 - 06.2012] KGC3#,NGC30 |
33560-B1081 |
US $29.56 |
||
| replacement | |||||
|
33560B
|
33560B
33560-B1082 Cable Assy, Shift Lock Release[06.2011 - 06.2012] KGC3#,NGC30 |
33560-B1082 |
US $112.11 |
||
|
33560B
|
33560B
33560-B1082 Cable Assy, Shift Lock Release[03.2013 - 04.2014] KGC3#,NGC30 |
33560-B1082 |
US $112.11 |
||
|
33560B
|
33560B
33560-B1083 Cable Assy, Shift Lock Release[02.2016 -] KGC3#,NGC30 |
33560-B1083 |
US $112.11 |
||
|
33567
|
33567
33567-B1010 Clamp, Control Shaft TubeCONTROL SHAFT TUBE [02.2010 - 06.2012] KGC3#,NGC30 |
33567-B1010 |
US $4.30 |
||
|
33623B
|
33623B
33623-B1010-E0 Button, Shift Lever Knob[02.2010 - 06.2012] KGC3#,NGC30 EBONY BROWN,TRIM4# |
33623-B1010-E0 |
US $4.48 |
||
|
33820
|
33820
33820-B1090 Cable Assy, Transmission Control (For Column Shift)TRANSMISSION CONTROL (FOR COLUMN SHIFT) [02.2010 - 06.2012] KGC3#,NGC30 |
33820-B1090 |
US $158.70 |
||
|
33820
|
33820
33820-B1130 Cable Assy, Transmission Control (For Column Shift)[04.2014 -] KGC3#,NGC30 |
33820-B1130 |
US $142.69 |
||
|
9004105418
|
9004105418
90041-05418 New Genuine Part |
90041-05418 |
US $2.48 |
||
|
9004179348
|
9004179348
90041-79348 Nut (For Transmission Control Cable) |
90041-79348 |
US $1.75 |
||
|
9165160620
|
9165160620
91651-60620 BOLTWWASHER |
91651-60620 |
US $1.43 |
||
