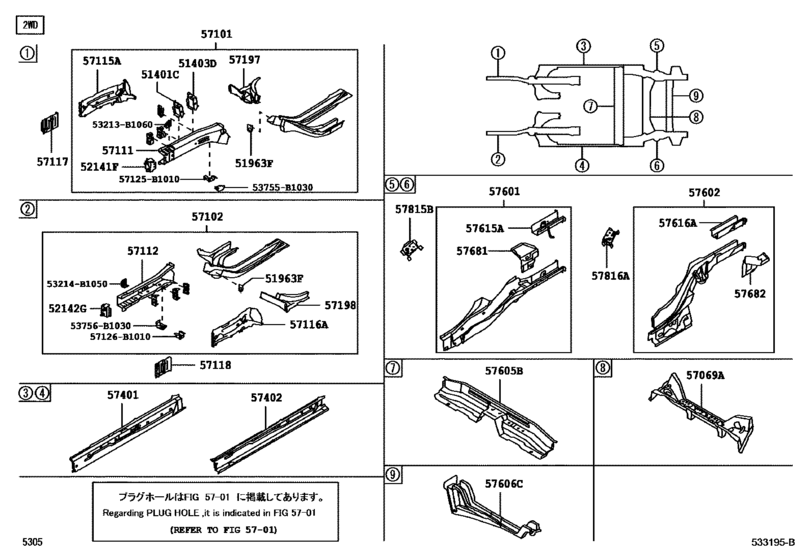

Floor Side Member ([02.2010 - ] 2WD (1002- )KGC30,NGC30) Diagram Toyota PASSO
- Year
- 2010 - 2016
- Sales region
- Japan
- Frame
- NGC30
- grade
- HANA
- ENGINE
- 1NRFE
- Model
- PASSO
- From
- 02.2010
- To
- 04.2016
- Vehicle Model
- PASSO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51401C
|
51401C
51401-B1010 Bracket Sub-Assy, Engine Front Mounting, RhENGINE FRONT MOUNTING, RH [02.2010 - 06.2012] KGC3#,NGC30 |
51401-B1010 |
US $24.17 |
||
|
51403D
|
51403D
51403-B1010 Bracket Sub-Assy, Engine Rear MountingENGINE REAR MOUNTING [02.2010 - 06.2012] KGC3#,NGC30 |
51403-B1010 |
US $24.17 |
||
|
51963F
|
51963F
51963-B1010 Hook, Transport[02.2010 - 06.2012] KGC3#,NGC30 |
51963-B1010 |
US $10.63 |
||
|
52141F
|
52141F
52141-B1020 Arm, Front Bumper, RhFRONT BUMPER, RH [02.2010 - 06.2012] KGC3#,NGC30 |
52141-B1020 |
US $32.79 |
||
|
52142G
|
52142G
52142-B1020 Arm, Front Bumper, LhFRONT BUMPER, LH [02.2010 - 06.2012] KGC3#,NGC30 |
52142-B1020 |
US $28.39 |
||
|
57069A
|
57069A
57069-B1010 Member, Rear Floor, Center[02.2010 - 06.2012] KGC30,NGC30 |
57069-B1010 |
US $138.32 |
||
|
57101
|
57101
57101-B1040 Member Sub-Assy, Front Side, RhFRONT SIDE, RH [02.2010 - 06.2012] KGC3#,NGC30 |
57101-B1040 |
US $371.28 |
||
|
57102
|
57102
57102-B1050 Member Sub-Assy, Front Side, LhFRONT SIDE, LH [02.2010 - 06.2012] KGC3#,NGC30 |
57102-B1050 |
US $371.28 |
||
|
57111
|
57111
57111-B1040 Member, Front Side, RhFRONT SIDE, RH [02.2010 - 06.2012] KGC3#,NGC30 |
57111-B1040 |
US $169.60 |
||
|
57112
|
57112
57112-B1030 Member, Front Side, LhFRONT SIDE, LH [02.2010 - 06.2012] KGC3#,NGC30 |
57112-B1030 |
US $142.69 |
||
|
57115A
|
57115A
57115-B1030 Plate, Front Side Member, Outer RhFRONT SIDE MEMBER, OUTER RH [02.2010 - 06.2012] KGC3#,NGC30 |
57115-B1030 |
US $44.26 |
||
|
57116A
|
57116A
57116-B1010 Plate, Front Side Member, Outer Lh[02.2010 - 06.2012] KGC3#,NGC30 |
57116-B1010 |
US $44.26 |
||
|
57117
|
57117
57117-B1010 Plate Sub-Assy, Front Side Member, Front Rh[02.2010 - 06.2012] KGC3#,NGC30 |
57117-B1010 |
US $19.82 |
||
|
57118
|
57118
57118-B1010 Plate Sub-Assy, Front Side Member, Front Lh[02.2010 - 06.2012] KGC3#,NGC30 |
57118-B1010 |
US $15.87 |
||
|
57197
|
57197
57197-B1010 Box, Torque, Front Rh[02.2010 - 06.2012] KGC3#,NGC30 |
57197-B1010 |
US $33.78 |
||
|
57198
|
57198
57198-B1010 Box, Torque, Front Lh[02.2010 - 06.2012] KGC3#,NGC30 |
57198-B1010 |
US $33.78 |
||
|
57401
|
57401
57401-B1040 Member Sub-Assy, Main Floor Side, RhMAIN FLOOR SIDE, RH [02.2010 - 06.2012] KGC3#,NGC30 |
57401-B1040 |
US $198.02 |
||
|
57402
|
57402
57402-B1040 Member Sub-Assy, Main Floor Side, LhMAIN FLOOR SIDE, LH [02.2010 - 06.2012] KGC3#,NGC30 |
57402-B1040 |
US $198.02 |
||
|
57601
|
57601
57601-B1011 Member Sub-Assy, Rear Floor Side, Rh[02.2010 - 06.2012] KGC30,NGC30 |
57601-B1011 |
US $313.04 |
||
|
57602
|
57602
57602-B1011 Member Sub-Assy, Rear Floor Side, Lh[02.2010 - 06.2012] KGC30,NGC30 |
57602-B1011 |
US $313.04 |
||
|
57605B
|
57605B
57605-B1010 Member Sub-Assy, Rear Floor Cross, No.1[02.2010 - 01.2012] KGC30,NGC30 |
57605-B1010 |
US $173.26 |
||
| replacement | |||||
|
57605B
|
57605B
57605-B1011 Member Sub-Assy, Rear Floor Cross, No.1[02.2010 - 01.2012] KGC30,NGC30 |
57605-B1011 |
US $182 |
||
|
57605B
|
57605B
57605-B1011 Member Sub-Assy, Rear Floor Cross, No.1[02.2012 - 06.2012] KGC30,NGC30 |
57605-B1011 |
US $182 |
||
|
57606C
|
57606C
57606-B1021 Member Sub-Assy, Rear Floor Cross, No.2[02.2010 - 06.2012] KGC30,NGC30 |
57606-B1021 |
US $142.68 |
||
|
57615A
|
57615A
57033-B1010 Bracket Sub-Assy, Body Mounting, No.1 Rh[02.2010 - 06.2012] KGC30,NGC30 |
57033-B1010 |
US $33.78 |
||
|
57616A
|
57616A
57034-B1010
Member, Rear Floor Side, Rear Lh
[02.2010 - 06.2012] KGC3#,NGC30 |
57034-B1010 |
— | ||
|
57681
|
57681
61063-B1010 Bracket, Rear Shock Absorber, Rh[02.2010 - 06.2012] KGC3#,NGC30 |
61063-B1010 |
US $31.60 |
||
|
57682
|
57682
61064-B1010 Bracket, Rear Shock Absorber, Lh[02.2010 - 06.2012] KGC3#,NGC30 |
61064-B1010 |
US $55.56 |
||
|
57815B
|
57815B
58298-B1010 Reinforcement, Belt Anchor, No.1 Rh[02.2010 - 06.2012] KGC3#,NGC30 |
58298-B1010 |
US $21.26 |
||
|
57816A
|
57816A
58299-B1010 Reinforcement, Belt Anchor, No.1 Lh[02.2010 - 06.2012] KGC3#,NGC30 |
58299-B1010 |
US $21.26 |
||
|
53213B1060
|
53213B1060
53213-B1060 Panel, Front Under, Rh |
53213-B1060 |
US $6.12 |
||
|
53214B1050
|
53214B1050
53214-B1050 Panel, Front Under, Lh |
53214-B1050 |
US $6.12 |
||
|
53755B1030
|
53755B1030
53755-B1030 Retainer, Front Frame Support |
53755-B1030 |
US $16.31 |
||
|
53756B1030
|
53756B1030
53756-B1030 Weatherstrip, Front Fender Apron To Frame, No.1 |
53756-B1030 |
US $16.31 |
||
|
57125B1010
|
57125B1010
57125-B1010 Bracket, Front Side Member, Rh |
57125-B1010 |
US $29.74 |
||
|
57126B1010
|
57126B1010
57126-B1010 Bracket, Front Side Member, Lh |
57126-B1010 |
US $29.74 |
||
