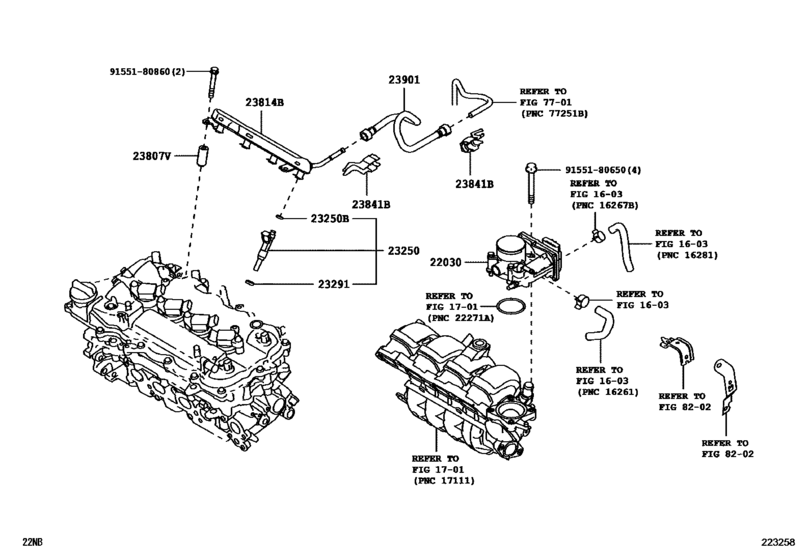

Fuel Injection System ([02.2010 - ] (1002- )1NRFE) Diagram Toyota PASSO
- Year
- 2010 - 2016
- Sales region
- Japan
- Frame
- NGC30
- grade
- HANA
- ENGINE
- 1NRFE
- Model
- PASSO
- From
- 02.2010
- To
- 04.2016
- Vehicle Model
- PASSO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22030
|
22030
22030-47010 Body Assy, Throttle W/motorTHROTTLE W/MOTOR [02.2010 - 06.2012] 1NRFE..NGC30 |
22030-47010 |
US $822.12 |
||
|
23250
|
23250
23209-49205 Injector Assy, FuelFUEL [02.2010 - 06.2012] 1NRFE..NGC30 |
23209-49205 |
US $170.35 |
||
|
23250B
|
23250B
90301-07042 Ring, O(For Fuel Injector)O(FOR FUEL INJECTOR) [02.2010 - 06.2012] 1NRFE..NGC30 |
90301-07042 |
from US $2.39 |
||
|
23291
|
23291
23291-23010 Insulator, Injector Vibration[02.2010 - 06.2012] 1NRFE..NGC30 |
23291-23010 |
from US $2.51 |
||
|
23807V
|
23807V
23891-47010 Spacer, No.1(For Delivery Pipe)NO.1(FOR DELIVERY PIPE) [02.2010 - 06.2012] 1NRFE..NGC30 |
23891-47010 |
US $5.24 |
||
| replacement | |||||
|
23807V
|
23807V
23891-47030 Spacer, No.1(For Delivery Pipe)[02.2010 - 06.2012] 1NRFE..NGC30 |
23891-47030 |
US $3.93 |
||
|
23807V
|
23807V
23891-47030 Spacer, No.1(For Delivery Pipe)[02.2013 - 04.2014] 1NRFE..NGC30 |
23891-47030 |
US $3.93 |
||
|
23814B
|
23814B
23814-47020 Pipe, Fuel DeliveryFUEL DELIVERY [02.2010 - 06.2012] 1NRFE..NGC30 |
23814-47020 |
US $100.46 |
||
| replacement | |||||
|
23814B
|
23814B
23814-47050 Pipe, Fuel Delivery[02.2010 - 06.2012] 1NRFE..NGC30 |
23814-47050 |
US $94.64 |
||
|
23814B
|
23814B
23814-47050 Pipe, Fuel Delivery[07.2014 -] 1NRFE..NGC30 |
23814-47050 |
US $94.64 |
||
|
23841B
|
23841B
23841-B1010 Clamp, Fuel Pipe, No.1(For Efi)FUEL PIPE, NO.1(FOR EFI) [02.2010 - 06.2012] 1KRFE..KGC3#; 1NRFE..NGC30 |
23841-B1010 |
US $4.08 |
||
|
23901
|
23901
23901-B1020 Tube Sub-Assy, FuelFUEL [02.2010 - 06.2012] 1NRFE..NGC30 |
23901-B1020 |
US $49.50 |
||
|
9155180650
|
9155180650
91551-80650 BOLT FLANGE |
91551-80650 |
from US $0.78 |
||
|
9155180860
|
9155180860
91551-80860 Bolt(For Head To Camshaft Bearing Cap) |
91551-80860 |
US $1.79 |
||
