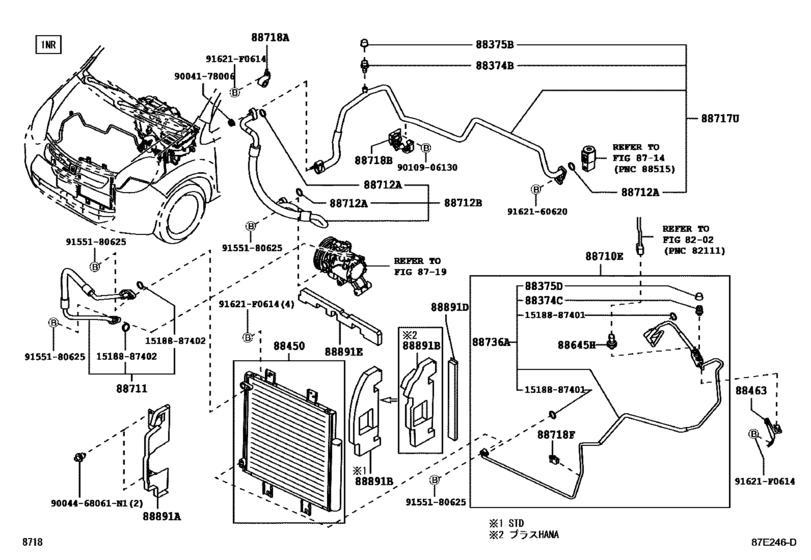

Heating & Air Conditioning - Cooler Piping ([04.2014 - ] (1404- )NGC30) Diagram Toyota PASSO
- Year
- 2010 - 2016
- Sales region
- Japan
- Frame
- NGC30
- grade
- HANA
- ENGINE
- 1NRFE
- Model
- PASSO
- From
- 02.2010
- To
- 04.2016
- Vehicle Model
- PASSO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88374B
|
88374B
88374-87601 Valve, Service, No.1[02.2010 - 06.2012] KGC3#,NGC30 |
88374-87601 |
US $6.27 |
||
|
88374C
|
88374C
88374-87601 Valve, Service, No.1[02.2010 - 06.2012] KGC3#,NGC30 |
88374-87601 |
US $6.27 |
||
|
88375B
|
88375B
88375-87601 Cap, Service Valve, No.1[02.2010 - 06.2012] KGC3#,NGC30 |
88375-87601 |
US $1.22 |
||
|
88375D
|
88375D
88375-87603
Cap, Service Valve (For Cooler Pipe)
[02.2010 - 06.2012] KGC3#,NGC30 |
88375-87603 |
— | ||
|
88450
|
88450
88450-B1030 Condenser Assy, W/receiver[02.2010 - 06.2012] KGC3#,NGC30 |
88450-B1030 |
US $606.84 |
||
|
88463
|
88463
88688-B1070
Bracket, Cooler Condenser, No.1
[02.2010 - 06.2012] KGC3#,NGC30 |
88688-B1070 |
— | ||
|
88645H
|
88645H
88645-87602
Switch, Pressure No.1
[02.2010 - 06.2012] KGC3#,NGC30 |
88645-87602 |
— | ||
|
88710E
|
88710E
88716-B1170 Tube & Accessory Assy, Air ConditionerAIRCONDITIONER [02.2010 - 06.2012] KGC3#,NGC30..HANA |
88716-B1170 |
US $106.29 |
||
| replacement | |||||
|
88710E
|
88710E
88716-B1171 Tube & Accessory Assy, Air Conditioner[02.2010 - 06.2012] KGC3#,NGC30..HANA |
88716-B1171 |
US $129.36 |
||
|
88710E
|
88710E
88716-B1171 Tube & Accessory Assy, Air Conditioner[04.2014 -] NGC30 |
88716-B1171 |
US $129.36 |
||
|
88711
|
88711
88711-B1120 Hose, Cooler Refrigerant Discharge, No.1COOLER REFRIGERANT DISCHARGE, NO.1 [02.2010 - 06.2012] NGC30 |
88711-B1120 |
US $97.55 |
||
|
88712A
|
88712A
15188-87403 Ring, O(For Cooler Refrigerant Suction Hose)[02.2010 - 06.2012] NGC30 |
15188-87403 |
from US $1.94 |
||
|
88712B
|
88712B
88712-B1170 Hose, Cooler Refrigerant SuctionCOOLER REFRIGERANT SUCTION [02.2010 - 06.2012] NGC30 |
88712-B1170 |
US $103.38 |
||
|
88717U
|
88717U
88717-B1040 Tube, Suction, No.1SUCTION, NO.1 [02.2010 - 06.2012] NGC30 |
88717-B1040 |
US $55.62 |
||
|
88718A
|
88718A
88718-B1010
Clamp(For Cooler Refrigerant Pipe), No.1
[02.2010 - 06.2012] NGC30 |
88718-B1010 |
— | ||
|
88718B
|
88718B
88718-B1080
Clamp(For Cooler Refrigerant Pipe), No.2
[02.2010 - 06.2012] KGC3#,NGC30 |
88718-B1080 |
— | ||
|
88718F
|
88718F
88718-B1100
Clamp(For Cooler Refrigerant Hose), No.1
[02.2010 - 06.2012] KGC3#,NGC30 |
88718-B1100 |
— | ||
|
88736A
|
88736A
88716-B1270 Tube, Liquid, A(For Cool Box)LIQUID, A(FOR COOL BOX) [02.2010 - 06.2012] KGC3#,NGC30..HANA |
88716-B1270 |
US $110.66 |
||
|
88736A
|
88736A
88716-B1290 Tube, Liquid, A(For Cool Box)[04.2014 -] KGC3#,NGC30 |
88716-B1290 |
US $72.80 |
||
|
88891A
|
88891A
88578-B1390 Packing A (For Cooler)[02.2010 - 06.2012] KGC3#,NGC30..HANA |
88578-B1390 |
US $10.39 |
||
|
88891A
|
88891A
88892-B1120 Packing A (For Cooler)[04.2014 -] KGC3#,NGC30 |
88892-B1120 |
US $56.28 |
||
|
88891B
|
88891B
88578-B1420 Packing B (For Cooler)[02.2010 - 06.2012] KGC3#,NGC30..HANA |
88578-B1420 |
US $10.39 |
||
|
88891B
|
88891B
88578-B1580 Packing B (For Cooler)[04.2014 -] KGC3#,NGC30..HANA |
88578-B1580 |
US $10.39 |
||
|
88891D
|
88891D
88578-B1530 Packing D (For Cooler)[02.2010 - 06.2012] KGC3#,NGC30 |
88578-B1530 |
US $10.39 |
||
|
88891E
|
88891E
88578-B1540 Packing E (For Cooler)[02.2010 - 06.2012] KGC3#,NGC30 |
88578-B1540 |
US $6.99 |
||
|
91621F0614
|
91621F0614
91621-F0614
BOLT WWASHER
|
91621-F0614 |
— | ||
| replacement | |||||
|
91621F0614
|
91621F0614
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.65 |
||
|
1518887401
|
1518887401
15188-87401 Ring, O |
15188-87401 |
from US $1.82 |
||
|
1518887402
|
1518887402
15188-87402 Ring, O |
15188-87402 |
from US $2.09 |
||
|
9004178006
|
9004178006
90041-78006 New Genuine Part |
90041-78006 |
US $0.87 |
||
|
9004468061N1
|
9004468061N1
90044-68061-N1 New Genuine Part |
90044-68061-N1 |
US $2.87 |
||
|
9010906130
|
9010906130
90109-06130 New Genuine Part |
90109-06130 |
US $1.16 |
||
|
9155180625
|
9155180625
91551-80625 Bolt(For Camshaft Housing Set) |
91551-80625 |
from US $0.63 |
||
|
9162160620
|
9162160620
91621-60620 Bolt, W/washer(For Repair Actuator Set) |
91621-60620 |
US $0.69 |
||
