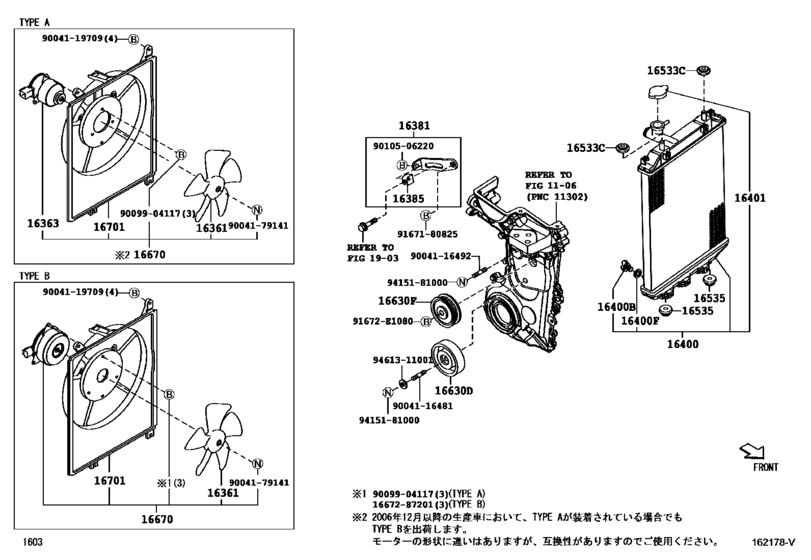

Radiator & Water Outlet ([05.2004 - 02.2010] (0405-1002)K3VE) Diagram Toyota PASSO
- Year
- 2004 - 2010
- Sales region
- Japan
- Frame
- QNC10
- grade
- RACY
- ENGINE
- K3VE
- TRANSMISSION
- ATM
- Model
- PASSO
- From
- 12.2004
- To
- 02.2010
- Gear Shift Type
- 4HC
- Vehicle Model
- PASSO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16361
|
16361
16361-B1070 Fan[12.2006 - 02.2010] K3VE..QNC10 タイプ Ｂ; 1KRFE..KGC1# タイプ Ｂ |
16361-B1070 |
US $39.75 |
||
|
16361
|
16361
16690-97201 Fan[05.2004 - 12.2006] K3VE..QNC10 |
16690-97201 |
US $44.26 |
||
|
16363
|
16363
16680-87402
Motor, Cooling Fan
[05.2004 - 12.2006] K3VE..QNC10 タイプ Ａ |
16680-87402 |
— | ||
| replacement | |||||
|
16363
|
16363
16363-B0010 Motor, Cooling FanCOOLING FAN [05.2004 - 12.2006] K3VE..QNC10 タイプ Ａ |
16363-B0010 |
US $365.04 |
||
|
16381
|
16381
16380-B1010 Bar, Fan Belt Adjusting[05.2004 - 12.2006] K3VE..QNC10 |
16380-B1010 |
US $24.75 |
||
|
16385
|
16385
16385-B1010 Slider, Fan Belt Adjusting[05.2004 - 12.2006] K3VE..QNC10 |
16385-B1010 |
US $8.88 |
||
|
16400
|
16400
16400-B1070 Radiator Assy[05.2004 - 12.2006] K3VE..QNC10 |
16400-B1070 |
US $445.54 |
||
| replacement | |||||
|
16400
|
16400
16400-B1071 Radiator Assy[05.2004 - 12.2006] K3VE..QNC10 |
16400-B1071 |
US $516.36 |
||
|
16400
|
16400
16400-B1071 Radiator Assy[12.2009 - 02.2010] K3VE..QNC10 |
16400-B1071 |
US $516.36 |
||
|
16400B
|
16400B
23322-87101
Plug, Radiator Drain Cock
[05.2004 - 12.2006] 1KRFE..KGC1#; K3VE..QNC10 |
23322-87101 |
— | ||
|
16400F
|
16400F
16442-97201 Packing(For Radiator Drain Cock)[05.2004 - 12.2006] 1KRFE..KGC1#; K3VE..QNC10 |
16442-97201 |
from US $2.15 |
||
|
16401
|
16401
16401-97202 Cap Sub-Assy, Radiator[05.2004 - 12.2006] 1KRFE..KGC1#; K3VE..QNC10 |
16401-97202 |
US $21.50 |
||
|
16533C
|
16533C
90044-80621 Grommet(For Radiator Support)[05.2004 - 12.2006] 1KRFE..KGC1#; K3VE..QNC10 |
90044-80621 |
US $4.84 |
||
|
16535
|
16535
90044-80592 Grommet[05.2004 - 12.2006] 1KRFE..KGC1#; K3VE..QNC10 |
90044-80592 |
from US $4.92 |
||
|
16630D
|
16630D
16603-97401 Pulley Sub-Assy, Idler, No.1[05.2004 - 12.2006] K3VE..QNC10 |
16603-97401 |
US $72.74 |
||
|
16630F
|
16630F
16630-97402 Pulley Assy, Idler, No.2[05.2004 - 12.2006] K3VE..QNC10 |
16630-97402 |
US $123 |
||
|
16670
|
16670
16360-B1220 Moter Assy, Fan W/shroud[12.2006 - 02.2010] K3VE..QNC10 タイプ Ｂ; 1KRFE..KGC1# タイプ Ｂ |
16360-B1220 |
US $663 |
||
|
16670
|
16670
16360-B2010 Moter Assy, Fan W/shroud[05.2004 - 12.2006] 1KRFE..KGC1#; K3VE..QNC10 |
16360-B2010 |
US $345.07 |
||
|
16701
|
16701
16700-97205 Shroud Sub-Assy, Fan[05.2004 - 12.2006] K3VE..QNC10 |
16700-97205 |
US $66.10 |
||
|
16701
|
16701
16700-97206 Shroud Sub-Assy, Fan[12.2006 - 02.2010] K3VE..QNC10 タイプ Ｂ; 1KRFE..KGC1# タイプ Ｂ |
16700-97206 |
US $65.23 |
||
|
91672E1080
|
91672E1080
91672-E1080 New Genuine Part |
91672-E1080 |
US $1.49 |
||
|
1667287201
|
1667287201
16672-87201
Bolt, Radiator Side Support Plate
|
16672-87201 |
— | ||
|
9004116481
|
9004116481
90041-16481 New Genuine Part |
90041-16481 |
US $3.58 |
||
|
9004116492
|
9004116492
90041-16492 New Genuine Part |
90041-16492 |
US $4.37 |
||
|
9004119709
|
9004119709
90041-19709 New Genuine Part |
90041-19709 |
US $1.51 |
||
|
9004179141
|
9004179141
90041-79141
New Genuine Part
|
90041-79141 |
— | ||
|
9009904117
|
9009904117
90099-04117 Bolt, Radiator Side Support Plate |
90099-04117 |
from US $0.61 |
||
|
9010506220
|
9010506220
90105-06220 BOLT WASHER BASED |
90105-06220 |
US $1.79 |
||
|
9167180825
|
9167180825
91671-80825 Bolt, Compressor, No.1 |
91671-80825 |
from US $0.76 |
||
|
9415181000
|
9415181000
94151-81000 NUT FLANGE |
94151-81000 |
US $1.79 |
||
|
9461311001
|
9461311001
94613-11001 WASHER |
94613-11001 |
US $2.15 |
||
