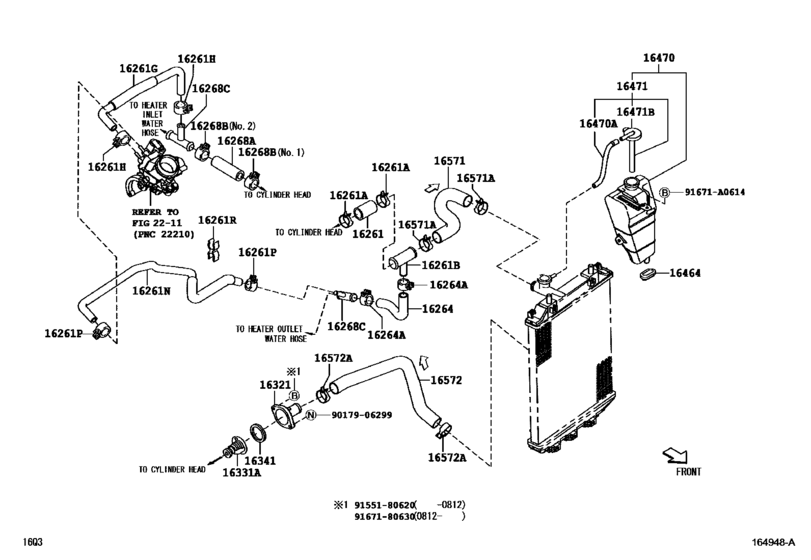

Radiator & Water Outlet ([05.2004 - 02.2010] (0405-1002)K3VE) Diagram Toyota PASSO
- Year
- 2004 - 2010
- Sales region
- Japan
- Frame
- QNC10
- grade
- RACY
- ENGINE
- K3VE
- TRANSMISSION
- ATM
- Model
- PASSO
- From
- 12.2004
- To
- 02.2010
- Gear Shift Type
- 4HC
- Vehicle Model
- PASSO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16261
|
16261
16261-B1010 Hose, Water By-Pass[05.2004 - 12.2006] K3VE..QNC10 |
16261-B1010 |
US $16.31 |
||
|
16261
|
16261
16261-B1200 Hose, Water By-PassWATER BY-PASS [10.2009 - 02.2010] K3VE..QNC10 |
16261-B1200 |
US $17.92 |
||
|
16261A
|
16261A
90044-66014 Clamp Or Clip, Hose(For Water By-Pass Hose)[01.2005 - 12.2006] K3VE..QNC10 内径＝３２．２，幅＝１０．２ |
90044-66014 |
US $6.09 |
||
|
16261A
|
16261A
90044-67176 Clamp Or Clip, Hose(For Water By-Pass Hose)[05.2004 - 01.2005] K3VE..QNC10 内径＝３１，幅＝１５ |
90044-67176 |
US $11.29 |
||
|
16261B
|
16261B
90044-13100 Union(For Water By-Pass Hose)[05.2004 - 12.2006] K3VE..QNC10 |
90044-13100 |
US $27.72 |
||
|
16261G
|
16261G
16261-97401 Hose, Water By-Pass[05.2004 - 12.2006] K3VE..QNC10 |
16261-97401 |
US $18.70 |
||
|
16261H
|
16261H
90044-67301 Clamp Or Clip, Hose(For Water By-Pass Hose)[05.2004 - 12.2006] K3VE..QNC10 |
90044-67301 |
US $4.84 |
||
|
16261N
|
16261N
16261-B1050 Hose, Water By-Pass, No.2[05.2004 - 12.2006] K3VE..QNC10 |
16261-B1050 |
US $41.66 |
||
|
16261P
|
16261P
90044-67301 Clamp Or Clip, Hose(For Water By-Pass Hose)[05.2004 - 12.2006] K3VE..QNC10 |
90044-67301 |
US $4.84 |
||
|
16261R
|
16261R
90044-64402 Clamp Or Clip(For Water By-Pass Hose)[05.2004 - 12.2006] K3VE..QNC10 |
90044-64402 |
US $2.48 |
||
|
16264
|
16264
16264-B1010 Hose, Water By-Pass, No.2[05.2004 - 12.2006] K3VE..QNC10 |
16264-B1010 |
US $17.92 |
||
|
16264A
|
16264A
90044-67207 Clamp Or Clip(For Water By-Pass Hose No.2)[05.2004 - 12.2006] K3VE..QNC10 |
90044-67207 |
US $5.02 |
||
|
16268A
|
16268A
16267-B1010 Hose(For Water By-Pass Pipe)[03.2009 - 02.2010] K3VE..QNC10 |
16267-B1010 |
US $8.74 |
||
|
16268A
|
16268A
16337-97401 Hose, Water By-Pass, No.2[05.2004 - 12.2006] K3VE..QNC10 |
16337-97401 |
US $14.87 |
||
|
16268B
|
16268B
90044-67124
Clip(For Water By-Pass Hose No.2)
[05.2004 - 12.2005] K3VE..QNC10 ＮＯ．２ |
90044-67124 |
— | ||
| replacement | |||||
|
16268B
|
16268B
90044-67223 Clamp Or Clip, Hose(For Water By-Pass Pipe)[05.2004 - 12.2005] K3VE..QNC10 ＮＯ．２ |
90044-67223 |
US $8.60 |
||
|
16268B
|
16268B
90044-67207 Clamp Or Clip(For Water By-Pass Hose No.2)[05.2004 - 12.2005] K3VE..QNC10 ＮＯ．１ |
90044-67207 |
US $5.02 |
||
|
16268B
|
16268B
90044-67223 Clamp Or Clip, Hose(For Water By-Pass Pipe)[12.2005 - 12.2006] K3VE..QNC10 ＮＯ．１ ＆ ＮＯ．２ |
90044-67223 |
US $8.60 |
||
|
16268C
|
16268C
90044-13070 Pipe, Water By-Pass, No.1[05.2004 - 12.2006] K3VE..QNC10 |
90044-13070 |
US $29.90 |
||
|
16321
|
16321
16321-97401
Inlet, Water
[05.2004 - 12.2006] K3VE..QNC10 |
16321-97401 |
— | ||
| replacements | |||||
|
16321
|
16321
16321-B1031 Inlet, Water[05.2004 - 12.2006] K3VE..QNC10 |
16321-B1031 |
US $49.39 |
||
|
16321
|
16321
90179-06299 Nut, Wire Adjusting, No.1[05.2004 - 12.2006] K3VE..QNC10 |
90179-06299 |
from US $0.65 |
||
|
16321
|
16321
91671-80630 Bolt(For Cylinder Head Cover)[05.2004 - 12.2006] K3VE..QNC10 |
91671-80630 |
US $1.43 |
||
|
16321
|
16321
92132-80625 Bolt, Stud(For Cylinder Head Cover Set)[05.2004 - 12.2006] K3VE..QNC10 |
92132-80625 |
US $1.97 |
||
|
16321
|
16321
16321-B1030 Inlet, Water[12.2008 - 04.2009] K3VE..QNC10 |
16321-B1030 |
US $26.21 |
||
| replacement | |||||
|
16321
|
16321
16321-B1031 Inlet, Water[12.2008 - 04.2009] K3VE..QNC10 |
16321-B1031 |
US $49.39 |
||
|
16321
|
16321
16321-B1031 Inlet, Water[04.2009 - 02.2010] K3VE..QNC10 |
16321-B1031 |
US $49.39 |
||
|
16331A
|
16331A
90048-33088 Thermostat[05.2004 - 12.2006] K3VE..QNC10 |
90048-33088 |
from US $19.89 |
||
|
16341
|
16341
16341-35010 Gasket, Water Outlet[05.2004 - 12.2006] 1KRFE..KGC1#; K3VE..QNC10 |
16341-35010 |
from US $1.84 |
||
|
16464
|
16464
16464-97201 Bush, Tank Lower[05.2004 - 12.2006] 1KRFE..KGC1#; K3VE..QNC10 |
16464-97201 |
US $4.30 |
||
|
16470
|
16470
16470-B1010 Tank Assy, Radiator Reserve[05.2004 - 12.2006] 1KRFE..KGC1#; K3VE..QNC10 |
16470-B1010 |
US $51.89 |
||
|
16470A
|
16470A
16472-B1010 Hose Or Pipe(For Radiator Reserve Tank)[05.2004 - 12.2006] 1KRFE..KGC1#; K3VE..QNC10 |
16472-B1010 |
US $6.99 |
||
|
16471
|
16471
16405-B1010 Cap Sub-Assy, Reserve Tank[05.2004 - 12.2006] 1KRFE..KGC1#; K3VE..QNC10 |
16405-B1010 |
US $15.87 |
||
|
16471B
|
16471B
16471-B1010 Cap, Reserve Tank[05.2004 - 12.2006] 1KRFE..KGC1#; K3VE..QNC10 |
16471-B1010 |
US $5.39 |
||
|
16571
|
16571
16571-B1030 Hose, Radiator, Inlet[05.2004 - 12.2006] K3VE..QNC10 |
16571-B1030 |
US $19.22 |
||
| replacement | |||||
|
16571
|
16571
16571-B1031 Hose, Radiator, Inlet[05.2004 - 12.2006] K3VE..QNC10 |
16571-B1031 |
US $37.30 |
||
|
16571A
|
16571A
90044-66014 Clamp Or Clip, Hose(For Water By-Pass Hose)[01.2005 - 12.2006] 1KRFE..KGC1# 内径＝３２．２，幅＝１０．２; K3VE..QNC10 内径＝３２．２，幅＝１０．２ |
90044-66014 |
US $6.09 |
||
|
16571A
|
16571A
90044-67176 Clamp Or Clip, Hose(For Water By-Pass Hose)[05.2004 - 01.2005] 1KRFE..KGC1# 内径＝３１，幅＝１５; K3VE..QNC10 内径＝３１，幅＝１５ |
90044-67176 |
US $11.29 |
||
|
16572
|
16572
16572-B1030 Hose, Radiator, Outlet[05.2004 - 12.2006] K3VE..QNC10 |
16572-B1030 |
US $48.55 |
||
|
16572A
|
16572A
90044-66014 Clamp Or Clip, Hose(For Water By-Pass Hose)[01.2005 - 12.2006] 1KRFE..KGC1# 内径＝３２．２，幅＝１０．２; K3VE..QNC10 内径＝３２．２，幅＝１０．２ |
90044-66014 |
US $6.09 |
||
|
16572A
|
16572A
90044-67176 Clamp Or Clip, Hose(For Water By-Pass Hose)[05.2004 - 01.2005] 1KRFE..KGC1# 内径＝３１，幅＝１５; K3VE..QNC10 内径＝３１，幅＝１５ |
90044-67176 |
US $11.29 |
||
|
91671A0614
|
91671A0614
91671-A0614 Bolt |
91671-A0614 |
US $1.08 |
||
|
9017906299
|
9017906299
90179-06299 Nut, Wire Adjusting, No.1 |
90179-06299 |
from US $0.65 |
||
|
9155180620
|
9155180620
91551-80620 Bolt |
91551-80620 |
from US $0.63 |
||
|
9167180630
|
9167180630
91671-80630 Bolt(For Cylinder Head Cover) |
91671-80630 |
US $1.43 |
||
