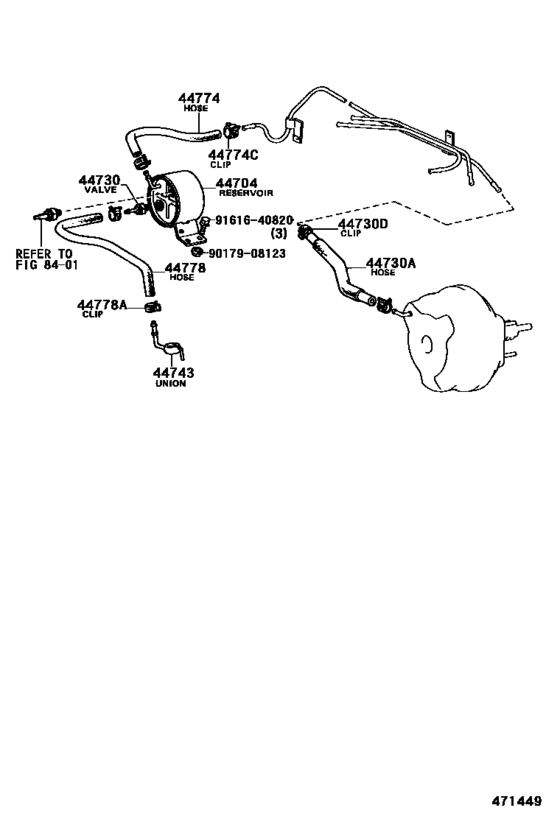

Brake Booster & Vacuum Tube ([01.1981 - ] (8101- )LN40) Diagram Toyota PICKUP
- Year
- 1981 - 1983
- Sales region
- U.S.A.
- Frame
- LN40
- grade
- DLX
- ENGINE
- L
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 01.1981
- To
- 07.1983
- Gear Shift Type
- 5F
- Loading Capacity
- HLF
- Building Condition
- IV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44704
|
44704
44704-35020
Reservoir Sub-Assy, Vacuum
[01.1981 - 07.1983] LN40 |
44704-35020 |
— | ||
|
44730
|
44730
44730-60040 Booster Kit, Brake[01.1981 - 07.1983] LN40 |
44730-60040 |
US $77.93 |
||
|
44730A
|
44730A
90445-17033 Hose(For Connector To Brake Booster Tube)[01.1981 - 11.1982] LN40 |
90445-17033 |
US $11.36 |
||
| replacement | |||||
|
44730A
|
44730A
95446-09300 Hose, Solenoid To Vacuum Tube[01.1981 - 11.1982] LN40 |
95446-09300 |
US $11.65 |
||
|
44730A
|
44730A
95441-09220 Hose, No.2(For Clutch Booster Vacuum)[11.1982 - 07.1983] LN40 |
95441-09220 |
US $11.50 |
||
| replacement | |||||
|
44730A
|
44730A
95446-09300 Hose, Solenoid To Vacuum Tube[11.1982 - 07.1983] LN40 |
95446-09300 |
US $11.65 |
||
|
44730D
|
44730D
90467-16141
Clip(For Clutch Reservoir Tube)
[01.1981 - 07.1983] LN40 |
90467-16141 |
— | ||
|
44743
|
44743
90405-09004 Union(For Vacuum Pump)[01.1981 - 07.1983] LN40..USA W/COOLER |
90405-09004 |
US $10.77 |
||
|
44743
|
44743
90405-09005 Union(For Vacuum Pump)[01.1981 - 07.1983] LN40 |
90405-09005 |
US $9.17 |
||
|
44774
|
44774
44774-35030
Hose, Union To Connector Tube
[01.1981 - 07.1983] LN40 |
44774-35030 |
— | ||
| replacement | |||||
|
44774
|
44774
44774-35010
Hose, Union To Connector Tube
[01.1981 - 07.1983] LN40 |
44774-35010 |
— | ||
|
44774C
|
44774C
90467-16141
Clip(For Clutch Reservoir Tube)
[01.1981 - 07.1983] LN40 |
90467-16141 |
— | ||
|
44778
|
44778
44773-35180
Hose, Connector To Check Valve
[01.1981 - 07.1983] LN40 |
44773-35180 |
— | ||
|
44778A
|
44778A
90467-16141
Clip(For Clutch Reservoir Tube)
[01.1981 - 07.1983] LN40 |
90467-16141 |
— | ||
|
9017908123
|
9017908123
90179-08123 Nut (For Front Wiper Arm Setting) |
90179-08123 |
from US $0.78 |
||
|
9161640820
|
9161640820
91616-40820 Bolt, Engine Rear Cover Hinge Set |
91616-40820 |
US $1.93 |
||
