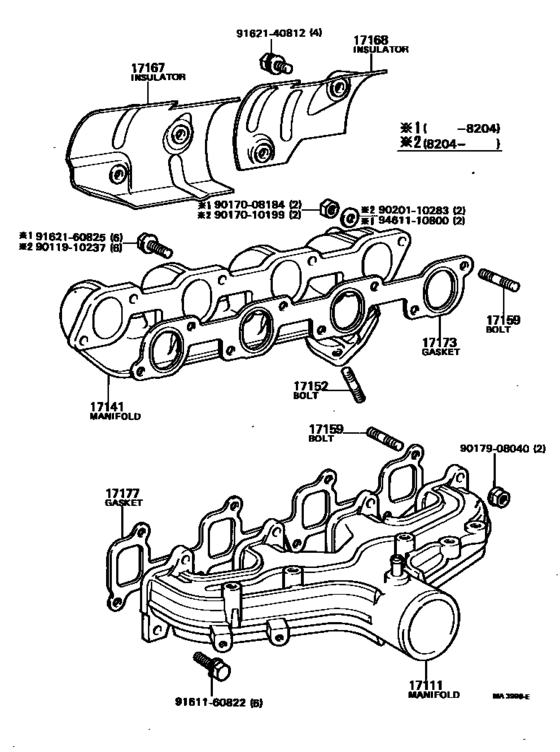

Manifold ([01.1981 - ] (8101- )L) Diagram Toyota PICKUP
- Year
- 1981 - 1983
- Sales region
- U.S.A.
- Frame
- LN40
- grade
- DLX
- ENGINE
- L
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 01.1981
- To
- 07.1983
- Gear Shift Type
- 5F
- Loading Capacity
- HLF
- Building Condition
- IV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17111
|
17111
17101-54030
Manifold, Intake
[01.1981 - 07.1983] L..LN40 |
17101-54030 |
— | ||
|
17141
|
17141
17141-54011 Manifold, Exhaust[01.1981 - 04.1982] L..LN40 |
17141-54011 |
US $257.71 |
||
| replacements | |||||
|
17141
|
17141
90116-10141 Bolt, Stud(For Exhaust Manifold To Cylinder Head)[01.1981 - 04.1982] L..LN40 |
90116-10141 |
US $4.12 |
||
|
17141
|
17141
17141-54040
Manifold, Exhaust
[01.1981 - 04.1982] L..LN40 |
17141-54040 |
— | ||
|
17141
|
17141
17141-54012 Manifold, Exhaust[04.1982 - 07.1983] L..LN40 |
17141-54012 |
US $285.38 |
||
| replacements | |||||
|
17141
|
17141
90116-10141 Bolt, Stud(For Exhaust Manifold To Cylinder Head)[04.1982 - 07.1983] L..LN40 |
90116-10141 |
US $4.12 |
||
|
17141
|
17141
17141-54040
Manifold, Exhaust
[04.1982 - 07.1983] L..LN40 |
17141-54040 |
— | ||
|
17152
|
17152
90116-10027 Bolt, Stud(For Manifold To Exhaust Pipe)[01.1981 - 07.1982] L..LN40 L=45.4,S=14&20 |
90116-10027 |
US $3.35 |
||
|
17152
|
17152
90116-10071 Bolt, Stud(For Manifold To Exhaust Pipe)[07.1982 - 02.1983] L..LN40 L=47.4,S=14&22 |
90116-10071 |
US $3.06 |
||
| replacement | |||||
|
17152
|
17152
90116-10088 Bolt, Stud(For Manifold To Exhaust Pipe)[07.1982 - 02.1983] L..LN40 L=47.4,S=14&22 |
90116-10088 |
from US $1.01 |
||
|
17152
|
17152
90116-10088 Bolt, Stud(For Manifold To Exhaust Pipe)[02.1983 - 07.1983] L..LN40 L=47.4,S=14&22 |
90116-10088 |
from US $1.01 |
||
|
17159
|
17159
90116-08053 Bolt, Stud(For Oil Filter)[04.1982 - 07.1983] L..LN40 INTAKE MANIFOLD SIDE |
90116-08053 |
US $2.04 |
||
|
17159
|
17159
90116-10027 Bolt, Stud(For Manifold To Exhaust Pipe)[04.1982 - 07.1982] L..LN40 EXHAUST MANIFOLD SIDE |
90116-10027 |
US $3.35 |
||
|
17159
|
17159
90116-10071 Bolt, Stud(For Manifold To Exhaust Pipe)[07.1982 - 02.1983] L..LN40 EXHAUST MANIFOLD SIDE |
90116-10071 |
US $3.06 |
||
| replacement | |||||
|
17159
|
17159
90116-10088 Bolt, Stud(For Manifold To Exhaust Pipe)[07.1982 - 02.1983] L..LN40 EXHAUST MANIFOLD SIDE |
90116-10088 |
from US $1.01 |
||
|
17159
|
17159
90116-10088 Bolt, Stud(For Manifold To Exhaust Pipe)[02.1983 - 07.1983] L..LN40 EXHAUST MANIFOLD SIDE |
90116-10088 |
from US $1.01 |
||
|
17167
|
17167
17167-54011 Insulator, Exhaust Manifold Heat, No.1[01.1981 - 07.1983] L..LN40 |
17167-54011 |
US $42.81 |
||
| replacement | |||||
|
17167
|
17167
17167-54042
Insulator, Exhaust Manifold Heat, No.1
[01.1981 - 07.1983] L..LN40 |
17167-54042 |
— | ||
|
17168
|
17168
17168-54011
Insulator, Exhaust Manifold Heat, No.2
[01.1981 - 07.1983] L..LN40 |
17168-54011 |
— | ||
| replacement | |||||
|
17168
|
17168
17168-54012
Insulator, Exhaust Manifold Heat, No.2
[01.1981 - 07.1983] L..LN40 |
17168-54012 |
— | ||
|
17173
|
17173
17173-54010
Gasket, Exhaust Manifold To Head
[01.1981 - 04.1982] L..LN40 |
17173-54010 |
— | ||
| replacement | |||||
|
17173
|
17173
17173-54012 Gasket, Exhaust Manifold To HeadEXHAUST MANIFOLD TO HEAD [01.1981 - 04.1982] L..LN40 |
17173-54012 |
US $10.87 |
||
|
17173
|
17173
17173-54011
Gasket, Exhaust Manifold To Head
[04.1982 - 07.1983] L..LN40 |
17173-54011 |
— | ||
| replacement | |||||
|
17173
|
17173
17173-54012 Gasket, Exhaust Manifold To HeadEXHAUST MANIFOLD TO HEAD [04.1982 - 07.1983] L..LN40 |
17173-54012 |
US $10.87 |
||
|
17177
|
17177
17177-54010
Gasket, Intake Manifold To Head, No.1
[01.1981 - 07.1981] L..LN40 |
17177-54010 |
— | ||
| replacement | |||||
|
17177
|
17177
17177-54012 Gasket, Intake Manifold To Head, No.1[01.1981 - 07.1981] L..LN40 |
17177-54012 |
from US $14.15 |
||
|
17177
|
17177
17177-54011
Gasket, Intake Manifold To Head, No.1
[07.1981 - 07.1983] L..LN40 |
17177-54011 |
— | ||
| replacement | |||||
|
17177
|
17177
17177-54012 Gasket, Intake Manifold To Head, No.1[07.1981 - 07.1983] L..LN40 |
17177-54012 |
from US $14.15 |
||
|
9011910237
|
9011910237
90119-10237
New Genuine Part
|
90119-10237 |
— | ||
|
9017008184
|
9017008184
90170-08184 New Genuine Part |
90170-08184 |
US $1.89 |
||
|
9017010199
|
9017010199
90170-10199 Nut, Exhaust Pipe Set Stud Bolt |
90170-10199 |
US $4.48 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.01 |
||
|
9020110283
|
9020110283
90201-10283 Washer, Plate(For Steering Tilt Lever) |
90201-10283 |
from US $0.76 |
||
|
9161160822
|
9161160822
91611-60822 Bolt |
91611-60822 |
from US $1.16 |
||
|
9162140812
|
9162140812
91621-40812 BOLT |
91621-40812 |
US $1.79 |
||
|
9162160825
|
9162160825
91621-60825
BOLT
|
91621-60825 |
— | ||
| replacement | |||||
|
9162160825
|
9162160825
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.82 |
||
|
9461110800
|
9461110800
94611-10800 Washer, Plate (For Transmission Control Cable) |
94611-10800 |
from US $0.84 |
||
