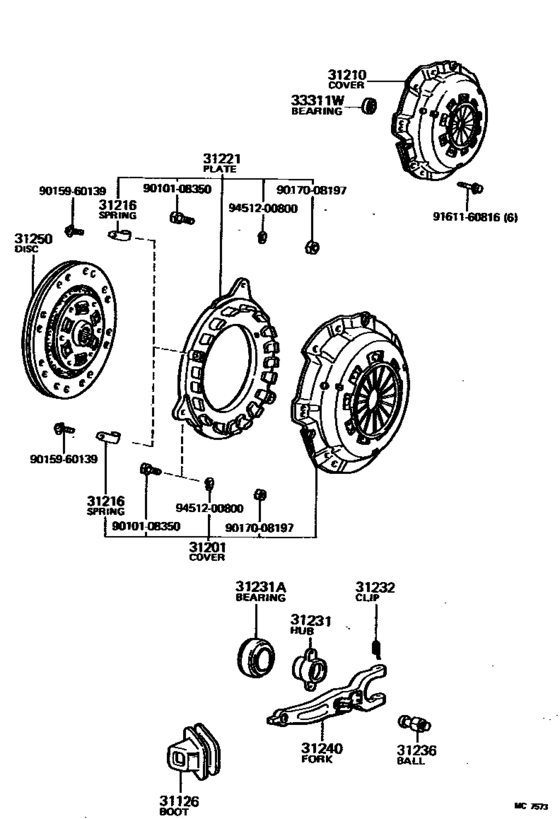

Clutch & Release Fork ([01.1981 - ] (8101- )LN40) Diagram Toyota PICKUP
- Year
- 1981 - 1983
- Sales region
- U.S.A.
- Frame
- LN40
- grade
- DLX
- ENGINE
- L
- TRANSMISSION
- MTM
- DESTINATION
- CND
- From
- 01.1981
- To
- 07.1983
- Gear Shift Type
- 5F
- Loading Capacity
- HLF
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-20070 Boot, Clutch Release Fork[08.1982 - 07.1983] LN40 |
31126-20070 |
from US $12.37 |
||
|
31126
|
31126
31126-25021
Boot, Clutch Release Fork
[01.1981 - 08.1982] LN40 |
31126-25021 |
— | ||
|
31201
|
31201
31201-29085
Cover Sub-Assy, Clutch
[01.1981 - 07.1983] LN40 |
31201-29085 |
— | ||
| replacement | |||||
|
31201
|
31201
31201-26010
Cover Sub-Assy, Clutch
[01.1981 - 07.1983] LN40 |
31201-26010 |
— | ||
|
31210
|
31210
31210-36029 Cover Assy, Clutch[01.1981 - 07.1983] LN40 |
31210-36029 |
US $200.93 |
||
| replacement | |||||
|
31210
|
31210
31210-30221 Cover Assy, Clutch[01.1981 - 07.1983] LN40 |
31210-30221 |
US $199.47 |
||
|
31216
|
31216
31216-30010
Spring, Clutch Retracting
[08.1978 - 07.1983] LN40,RN3#,4#..MTM |
31216-30010 |
— | ||
|
31221
|
31221
31221-39056 Spring, Clutch Retracting[01.1981 - 07.1983] LN40 |
31221-39056 |
US $80.08 |
||
| replacement | |||||
|
31221
|
31221
31221-36025
Spring, Clutch Retracting
[01.1981 - 07.1983] LN40 |
31221-36025 |
— | ||
|
31231
|
31231
31231-20090 Hub, Clutch Release Bearing[08.1982 - 07.1983] LN40,RN3#,4#..MTM |
31231-20090 |
US $21.77 |
||
|
31231
|
31231
31231-30080
Hub, Clutch Release Bearing
[01.1981 - 08.1982] LN40 |
31231-30080 |
— | ||
|
31231A
|
31231A
90363-40022 Bearing, Ball(For Clutch Release Hub)[12.1980 - 07.1983] LN40,RN3#,4#..MTM |
90363-40022 |
from US $39.84 |
||
|
31232
|
31232
31232-22010 Clip Or Spring, Release Bearing Hub[08.1982 - 07.1983] LN40,RN3#,4#..MTM |
31232-22010 |
from US $1.60 |
||
|
31232
|
31232
31232-30020 Clip Or Spring, Release Bearing Hub[01.1981 - 08.1982] LN40 |
31232-30020 |
US $3.06 |
||
|
31236
|
31236
31236-25010 Ball, Release Fork[01.1981 - 08.1982] LN40 |
31236-25010 |
US $10.77 |
||
|
31236
|
31236
31236-30060 Ball, Release Fork[08.1982 - 07.1983] LN40,RN34,44 |
31236-30060 |
from US $9.98 |
||
|
31240
|
31240
31204-20090 Fork Sub-Assy, Clutch Release[08.1982 - 07.1983] LN40 |
31204-20090 |
US $37.97 |
||
|
31240
|
31240
31204-26010
Fork Assy, Clutch Release
[01.1981 - 08.1982] LN40 |
31204-26010 |
— | ||
|
31250
|
31250
31250-22101
Disc Assy, Clutch
[05.1981 - 08.1981] LN40 |
31250-22101 |
— | ||
| replacement | |||||
|
31250
|
31250
31250-35410 Disc Assy, ClutchCLUTCH [05.1981 - 08.1981] LN40 |
31250-35410 |
from US $247.53 |
||
|
31250
|
31250
31250-25063
Disc Assy, Clutch
[01.1981 - 03.1981] LN40 |
31250-25063 |
— | ||
| replacement | |||||
|
31250
|
31250
31250-35410 Disc Assy, ClutchCLUTCH [01.1981 - 03.1981] LN40 |
31250-35410 |
from US $247.53 |
||
|
31250
|
31250
31250-35080
Disc Assy, Clutch
[03.1981 - 05.1981] LN40 |
31250-35080 |
— | ||
| replacement | |||||
|
31250
|
31250
31250-35410 Disc Assy, ClutchCLUTCH [03.1981 - 05.1981] LN40 |
31250-35410 |
from US $247.53 |
||
|
31250
|
31250
31250-35090 Disc Assy, Clutch[08.1981 - 10.1982] LN40 |
31250-35090 |
US $163.07 |
||
| replacement | |||||
|
31250
|
31250
31250-35410 Disc Assy, ClutchCLUTCH [08.1981 - 10.1982] LN40 |
31250-35410 |
from US $247.53 |
||
|
31250
|
31250
31250-60060
Disc Assy, Clutch
[10.1982 - 07.1983] LN40 |
31250-60060 |
— | ||
| replacement | |||||
|
31250
|
31250
31250-35410 Disc Assy, ClutchCLUTCH [10.1982 - 07.1983] LN40 |
31250-35410 |
from US $247.53 |
||
|
33311W
|
33311W
90363-12002
Bearing (For Input Shaft)
[08.1980 - 07.1983] LN40,RN3#,4#..MTM |
90363-12002 |
— | ||
| replacement | |||||
|
33311W
|
33311W
90363-12024 Bearing, Radial Ball[08.1980 - 07.1983] LN40,RN3#,4#..MTM |
90363-12024 |
from US $5.53 |
||
|
9010108350
|
9010108350
90101-08350
Bolt, Clutch Pressure Plate
|
90101-08350 |
— | ||
| replacement | |||||
|
9010108350
|
9010108350
90101-08022
Bolt, Clutch Pressure Plate
|
90101-08022 |
— | ||
|
9015960139
|
9015960139
90159-60139
New Genuine Part
|
90159-60139 |
— | ||
|
9017008197
|
9017008197
90170-08197
New Genuine Part
|
90170-08197 |
— | ||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $0.99 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.68 |
||
