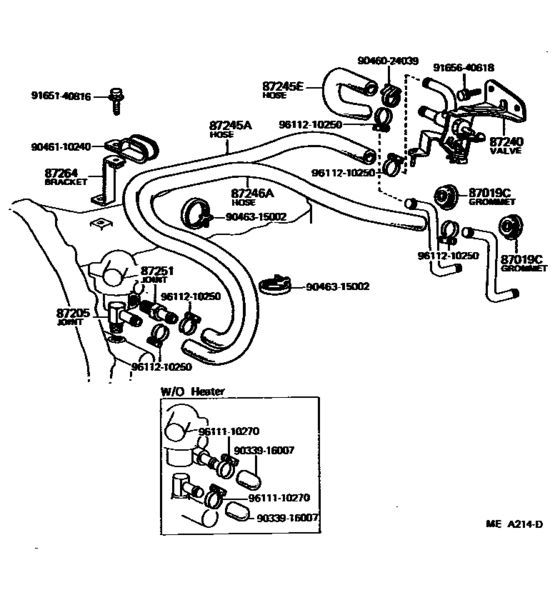

Heating & Air Conditioning - Water Piping ([01.1981 - ] (8101- )LN40) Diagram Toyota PICKUP
- Year
- 1981 - 1983
- Sales region
- U.S.A.
- Frame
- LN40
- grade
- DLX
- ENGINE
- L
- TRANSMISSION
- MTM
- DESTINATION
- CND
- From
- 01.1981
- To
- 07.1983
- Gear Shift Type
- 5F
- Loading Capacity
- HLF
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87019C
|
87019C
90480-36005 Grommet, Heater Hose[08.1978 - 07.1983] LN40,RN3#,4# |
90480-36005 |
US $3.58 |
||
|
87205
|
87205
87251-30230 Joint Or Union, Front Heater Hose Through Or Inlet Valve[01.1981 - 07.1983] LN40 |
87251-30230 |
from US $8.56 |
||
|
87240
|
87240
87240-89111
Valve Assy, Heater Water
[08.1978 - 07.1983] LN40,RN3#,4# |
87240-89111 |
— | ||
|
87245A
|
87245A
87245-89133 Hose, Heater Water, Outlet A[01.1981 - 07.1983] LN40 |
87245-89133 |
US $54.16 |
||
|
87245E
|
87245E
87245-89122
Hose, Heater Water, Inlet E
[08.1978 - 07.1983] LN40,RN3#,4# |
87245-89122 |
— | ||
|
87246A
|
87246A
87245-89137 Hose, Heater Water, Inlet A[01.1981 - 07.1983] LN40 |
87245-89137 |
US $55.91 |
||
|
87251
|
87251
87251-30200 Union(For Water By-Pass Hose)[01.1981 - 07.1983] LN40 |
87251-30200 |
from US $5.24 |
||
|
87264
|
87264
87263-89108
Bracket, Heater Water Hose
[01.1981 - 07.1983] LN40 |
87263-89108 |
— | ||
|
9033916007
|
9033916007
90339-16007
Plug
|
90339-16007 |
— | ||
| replacement | |||||
|
9033916007
|
9033916007
90339-16001 Plug, Heater Water |
90339-16001 |
from US $2.85 |
||
|
9046024039
|
9046024039
90460-24039 Clamp Or Clip, Hose(For Oil Cooler Hose) |
90460-24039 |
US $1.54 |
||
| replacement | |||||
|
9046024039
|
9046024039
90467-21010 Clip(For Ventilation Hose No.2) |
90467-21010 |
from US $2.43 |
||
|
9046110240
|
9046110240
90461-10240
New Genuine Part
|
90461-10240 |
— | ||
|
9046315002
|
9046315002
90463-15002 Clamp (For Accelerator Wire Set) |
90463-15002 |
US $2.15 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $0.95 |
||
|
9165640618
|
9165640618
91656-40618
Bolt (For Rear Differential Breather Plug Oil Deflector)
|
91656-40618 |
— | ||
| replacement | |||||
|
9165640618
|
9165640618
91651-60614 Bolt |
91651-60614 |
from US $1.16 |
||
|
9611110270
|
9611110270
96111-10270
Clamp Or Clip, Hose(For Oil Cooler Hose)
|
96111-10270 |
— | ||
| replacement | |||||
|
9611110270
|
9611110270
96112-10270 Clamp Or Clip, Hose(For Water By-Pass Hose) |
96112-10270 |
US $3.94 |
||
|
9611210250
|
9611210250
96112-10250 Clamp Or Clip, Hose(For Oil Cooler Hose) |
96112-10250 |
from US $2.22 |
||
