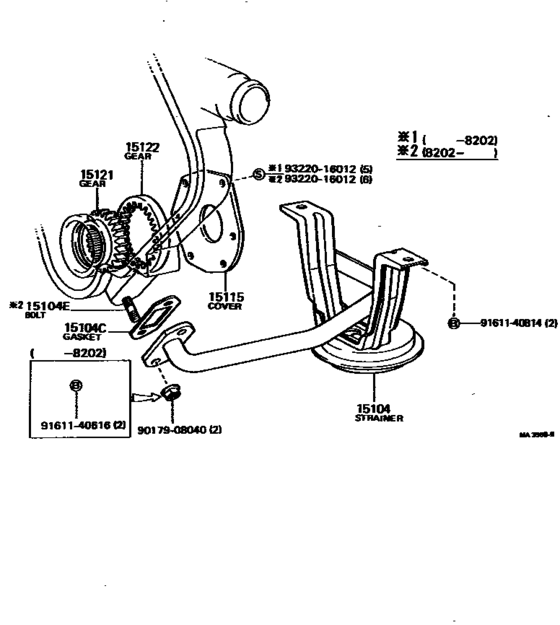

Engine Oil Pump ([01.1981 - ] (8101- )L) Diagram Toyota PICKUP
- Year
- 1982 - 1983
- Sales region
- U.S.A.
- Frame
- LN40
- grade
- SR5
- ENGINE
- L
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 08.1982
- To
- 07.1983
- Gear Shift Type
- 5F
- Loading Capacity
- HLF
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15104
|
15104
15104-54042 Strainer Sub-Assy, Oil[02.1982 - 07.1983] L..LN40 |
15104-54042 |
US $97.55 |
||
| replacement | |||||
|
15104
|
15104
15104-54044 Strainer Sub-Assy, Oil[02.1982 - 07.1983] L..LN40 |
15104-54044 |
US $97.55 |
||
|
15104C
|
15104C
15149-54011
Gasket(For Oil Strainer)
[02.1982 - 07.1983] L..LN40 |
15149-54011 |
— | ||
| replacement | |||||
|
15104C
|
15104C
15149-54030 Gasket(For Oil Strainer)[02.1982 - 07.1983] L..LN40 |
15149-54030 |
from US $2.03 |
||
|
15104E
|
15104E
92122-40816 Bolt, Stud(For Oil Strainer)[02.1982 - 07.1983] L..LN40 |
92122-40816 |
US $1.40 |
||
|
15115
|
15115
15115-54011 Cover, Oil Pump[02.1982 - 07.1983] L..LN40 |
15115-54011 |
US $21.40 |
||
| replacement | |||||
|
15115
|
15115
15115-54012
Cover, Oil Pump
[02.1982 - 07.1983] L..LN40 |
15115-54012 |
— | ||
|
15121
|
15121
15121-54010 Gear, Oil Pump Drive[02.1982 - 07.1983] L..LN40 |
15121-54010 |
US $67.70 |
||
|
15122
|
15122
15122-54010 Gear, Oil Pump Driven[02.1982 - 07.1983] L..LN40 |
15122-54010 |
US $74.26 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.01 |
||
|
9161140616
|
9161140616
91611-40616
Bolt, Hexagon(For Steering Column Bracket)
|
91611-40616 |
— | ||
| replacement | |||||
|
9161140616
|
9161140616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $0.84 |
||
|
9161140814
|
9161140814
91611-40814
Bolt(For Manual Transmission Oil Pan Setting)
|
91611-40814 |
— | ||
| replacement | |||||
|
9161140814
|
9161140814
91611-60814 Bolt |
91611-60814 |
from US $0.74 |
||
|
9322016012
|
9322016012
93220-16012 SCREW |
93220-16012 |
US $1.40 |
||
