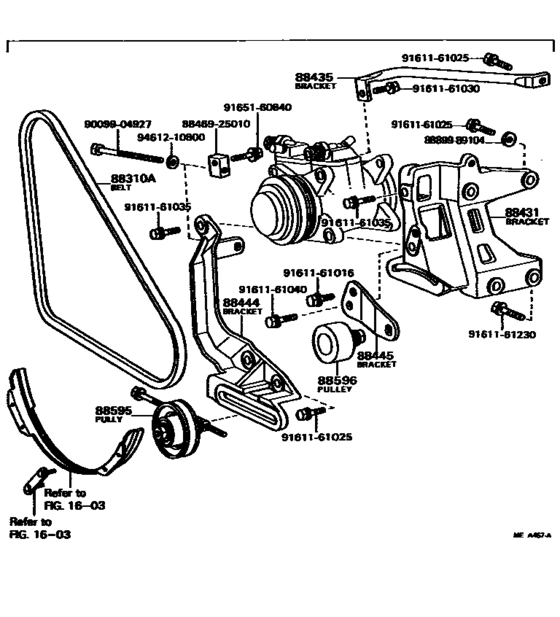

Heating & Air Conditioning - Compressor ([01.1981 - ] (8101- )LN40) Diagram Toyota PICKUP
- Year
- 1982 - 1983
- Sales region
- U.S.A.
- Frame
- LN40
- grade
- SR5
- ENGINE
- L
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 08.1982
- To
- 07.1983
- Gear Shift Type
- 5F
- Loading Capacity
- HLF
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88310A
|
88310A
99332-11250 Belt, V (Cooler Compressor To Crankshaft Pulley), No.1[01.1981 - 07.1983] LN40..USA L=1250 |
99332-11250 |
US $33.49 |
||
|
88431
|
88431
88431-25020
Bracket, Compressor Mounting, No.1
[01.1981 - 07.1983] LN40..USA |
88431-25020 |
— | ||
|
88435
|
88435
88433-35010
Bracket, Compressor Mounting, No.5
[01.1981 - 07.1983] LN40..USA |
88433-35010 |
— | ||
|
88444
|
88444
88444-25020
Bracket, Idle Pulley
[01.1981 - 07.1983] LN40..USA |
88444-25020 |
— | ||
|
88445
|
88445
88444-25030
Bracket, Idle Pulley
[01.1981 - 07.1983] LN40..USA |
88444-25030 |
— | ||
|
88595
|
88595
88440-25010
Pulley, Cooler Compressor Idle
[01.1981 - 07.1983] LN40..USA |
88440-25010 |
— | ||
| replacement | |||||
|
88595
|
88595
88440-28050
Pulley, Cooler Compressor Idle
[01.1981 - 07.1983] LN40..USA |
88440-28050 |
— | ||
|
88596
|
88596
88440-25020 Pulley Assy, Idle, No.2[01.1981 - 07.1983] LN40..USA |
88440-25020 |
US $78.62 |
||
|
8846925010
|
8846925010
88469-25010
Switch, Pressure Control
|
88469-25010 |
— | ||
|
8889989104
|
8889989104
88899-89104
Cover, Evaporator
|
88899-89104 |
— | ||
|
9009904927
|
9009904927
90099-04927
New Genuine Part
|
90099-04927 |
— | ||
|
9161161016
|
9161161016
91611-61016
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-61016 |
— | ||
| replacement | |||||
|
9161161016
|
9161161016
91612-61016 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91612-61016 |
US $2.51 |
||
|
9161161025
|
9161161025
91611-61025
Bolt(For Transaxle & Engine Setting)
|
91611-61025 |
— | ||
| replacement | |||||
|
9161161025
|
9161161025
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $0.93 |
||
|
9161161030
|
9161161030
91611-61030
Bolt (For Transmission Control Cable Bracket)
|
91611-61030 |
— | ||
| replacement | |||||
|
9161161030
|
9161161030
91612-61030 Bolt (For Transmission Control Cable Bracket) |
91612-61030 |
from US $1.05 |
||
|
9161161035
|
9161161035
91611-61035
BOLT
|
91611-61035 |
— | ||
| replacement | |||||
|
9161161035
|
9161161035
91612-61035 Bolt(For Hybrid Vehicle Transaxle & Engine Setting) |
91612-61035 |
from US $1.10 |
||
|
9161161040
|
9161161040
91611-61040
Bolt(For Transaxle Case & Engine Setting)
|
91611-61040 |
— | ||
| replacement | |||||
|
9161161040
|
9161161040
91612-61040 Bolt(For Transmission Case & Engine Setting) |
91612-61040 |
US $2.33 |
||
|
9161161230
|
9161161230
91611-61230 New Genuine Part |
91611-61230 |
US $2.77 |
||
| replacement | |||||
|
9161161230
|
9161161230
91619-61230 BOLT |
91619-61230 |
US $1.97 |
||
|
9165160840
|
9165160840
91651-60840 BOLT |
91651-60840 |
US $1.61 |
||
|
9461210800
|
9461210800
94612-10800 Washer, Plate(For Repair Actuator Set) |
94612-10800 |
from US $0.82 |
||
