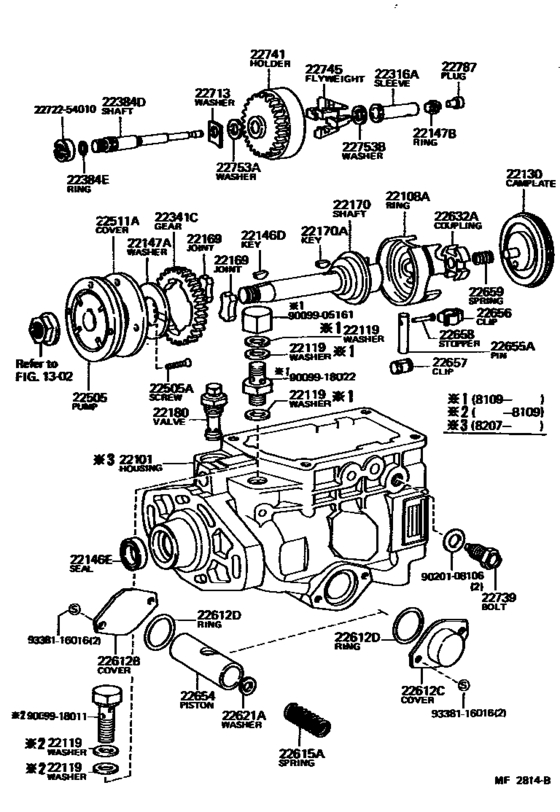

Injection Pump Body ([01.1981 - 10.1982] (8101-8210)L) Diagram Toyota PICKUP
- Year
- 1982 - 1983
- Sales region
- U.S.A.
- Frame
- LN40
- grade
- SR5
- ENGINE
- L
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 08.1982
- To
- 07.1983
- Gear Shift Type
- 5F
- Loading Capacity
- HLF
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22101
|
22101
22101-54250 Housing Sub-Assy, Injection PumpINJECTION PUMP [07.1982 - 10.1982] L..LN40 |
22101-54250 |
US $160.74 |
||
|
22101
|
22101
22101-54290
Housing Sub-Assy, Injection Pump
[10.1982 - 07.1983] L..LN40..SR5 |
22101-54290 |
— | ||
|
22108A
|
22108A
22108-54010
Ring Sub-Assy, Roller
[01.1981 - 07.1983] L..LN40 |
22108-54010 |
— | ||
|
22119
|
22119
22119-77020
Washer, Air Bleeder Nipple
[01.1981 - 07.1983] L..LN40 |
22119-77020 |
— | ||
| replacement | |||||
|
22119
|
22119
90201-12109 Washer, Air Bleeder Nipple[01.1981 - 07.1983] L..LN40 |
90201-12109 |
from US $1.25 |
||
|
22130
|
22130
22130-54010 Camplate Sub-Assy, Face[01.1981 - 07.1983] L..LN40 |
22130-54010 |
US $225.17 |
||
|
22146D
|
22146D
90099-13018 Key(For Drive Gear)[01.1981 - 07.1983] L..LN40 |
90099-13018 |
US $7.71 |
||
|
22146E
|
22146E
90099-15028
Seal(For Drive Shaft)
[01.1981 - 07.1983] L..LN40 |
90099-15028 |
— | ||
| replacement | |||||
|
22146E
|
22146E
22544-64740 Seal, Oil, Injection Pump Camshaft[01.1981 - 07.1983] L..LN40 |
22544-64740 |
from US $3.32 |
||
|
22147A
|
22147A
22161-54010 Washer, Drive Shaft[01.1981 - 07.1983] L..LN40 |
22161-54010 |
US $6.99 |
||
|
22147B
|
22147B
22147-54010
Ring, Governor Sleeve
[01.1981 - 10.1982] L..LN40 |
22147-54010 |
— | ||
|
22147B
|
22147B
22147-54290
Ring, Governor Sleeve
[10.1982 - 07.1983] L..LN40 |
22147-54290 |
— | ||
|
22169
|
22169
22169-54180
Joint, Rubber
[02.1981 - 07.1983] L..LN40 |
22169-54180 |
— | ||
|
22170
|
22170
22170-54180 Shaft Sub-Assy, Drive[02.1981 - 07.1983] L..LN40 |
22170-54180 |
US $47.17 |
||
|
22170A
|
22170A
90099-13017 Key(For Drive Gear)[01.1981 - 07.1983] L..LN40 |
90099-13017 |
US $8.80 |
||
|
22180
|
22180
22180-54010
Valve Sub-Assy, Regulator
[01.1981 - 07.1983] L..LN40 |
22180-54010 |
— | ||
|
22316A
|
22316A
22316-54010
Sleeve, Governor
[09.1981 - 10.1982] L..LN40 |
22316-54010 |
— | ||
|
22316A
|
22316A
22316-54290
Sleeve, Governor
[10.1982 - 07.1983] L..LN40 ID=0.80 |
22316-54290 |
— | ||
|
22341C
|
22341C
22341-54010
Gear, Governor Drive
[01.1981 - 07.1983] L..LN40 |
22341-54010 |
— | ||
|
22384D
|
22384D
22384-54010
Shaft, Governor
[09.1981 - 07.1983] L..LN40 |
22384-54010 |
— | ||
|
22384E
|
22384E
90099-14049 Ring, O(For Governor Main Shaft)[01.1981 - 07.1983] L..LN40 |
90099-14049 |
US $2.15 |
||
|
22505
|
22505
22505-54010 Pump Sub-Assy, Fuel Feed[01.1981 - 07.1983] L..LN40 |
22505-54010 |
from US $104.83 |
||
|
22505A
|
22505A
90099-00723
Screw(For Fuel Feed Pump)
[01.1981 - 07.1983] L..LN40 |
90099-00723 |
— | ||
|
22511A
|
22511A
22511-54020
Cover, Feed Pump
[01.1981 - 07.1983] L..LN40 |
22511-54020 |
— | ||
|
22612B
|
22612B
22612-54010
Cover, Timer
[01.1981 - 07.1983] L..LN40 |
22612-54010 |
— | ||
|
22612C
|
22612C
22612-54020
Cover, Timer
[01.1981 - 07.1983] L..LN40 |
22612-54020 |
— | ||
|
22612D
|
22612D
90099-14051
Ring, O, Distributor Housing
[01.1981 - 07.1983] L..LN40 |
90099-14051 |
— | ||
| replacement | |||||
|
22612D
|
22612D
22193-17840 Ring, O(For Timer Cover)[01.1981 - 07.1983] L..LN40 |
22193-17840 |
from US $2.64 |
||
|
22615A
|
22615A
22615-54020
Spring, Timer Outer
[01.1981 - 10.1982] L..LN40 |
22615-54020 |
— | ||
| replacement | |||||
|
22615A
|
22615A
22615-54180
Spring, Timer Outer
[01.1981 - 10.1982] L..LN40 |
22615-54180 |
— | ||
|
22615A
|
22615A
22615-54290
Spring, Timer Outer
[10.1982 - 07.1983] L..LN40 K=2.30,L=37.9,C.W=8.0 |
22615-54290 |
— | ||
|
22615A
|
22615A
22615-54291
Spring, Timer Outer
[10.1982 - 07.1983] L..LN40 K=2.50,L=35.6,C.W=7.5 |
22615-54291 |
— | ||
|
22615A
|
22615A
22615-58200
Spring, Timer Outer
[10.1982 - 07.1983] L..LN40 K=2.10,C.W=8.6 |
22615-58200 |
— | ||
|
22621A
|
22621A
22621-54010
Washer, Timer Adjusting
[01.1981 - 07.1983] L..LN40 T=0.5,T=0.5 |
22621-54010 |
— | ||
|
22621A
|
22621A
22622-54010
Washer, Timer Adjusting
[01.1981 - 07.1983] L..LN40 T=1.0,T=1.0 |
22622-54010 |
— | ||
|
22621A
|
22621A
22624-54010
Washer, Timer Adjusting
[01.1981 - 07.1983] L..LN40 T=0.2,T=0.2 |
22624-54010 |
— | ||
|
22632A
|
22632A
22632-54010 Coupling, Injection Pump[01.1981 - 07.1983] L..LN40 |
22632-54010 |
from US $49.10 |
||
|
22654
|
22654
22654-54010
Piston, Timer
[01.1981 - 10.1982] L..LN40 |
22654-54010 |
— | ||
|
22654
|
22654
22654-54290
Piston, Timer
[10.1982 - 07.1983] L..LN40 |
22654-54290 |
— | ||
|
22655A
|
22655A
22655-54010
Pin, Timer Slide
[01.1981 - 07.1983] L..LN40 |
22655-54010 |
— | ||
|
22656
|
22656
22656-54010
Clip, Timer
[01.1981 - 07.1983] L..LN40 |
22656-54010 |
— | ||
| replacement | |||||
|
22656
|
22656
22656-17840
Clip, Timer
[01.1981 - 07.1983] L..LN40 |
22656-17840 |
— | ||
|
22657
|
22657
22657-54010
Clip, Timer
[01.1981 - 07.1983] L..LN40 |
22657-54010 |
— | ||
|
22658
|
22658
22658-54010
Stopper, Timer
[01.1981 - 07.1983] L..LN40 |
22658-54010 |
— | ||
| replacement | |||||
|
22658
|
22658
22658-17840
Stopper, Timer
[01.1981 - 07.1983] L..LN40 |
22658-17840 |
— | ||
|
22659
|
22659
22659-54010
Spring, Coupling
[01.1981 - 07.1983] L..LN40 |
22659-54010 |
— | ||
| replacement | |||||
|
22659
|
22659
22659-64150
Spring, Coupling
[01.1981 - 07.1983] L..LN40 |
22659-64150 |
— | ||
|
22713
|
22713
22713-54010
Washer, Governor Gear Adjusting
[01.1981 - 07.1983] L..LN40 T=1.05,T=1.05 |
22713-54010 |
— | ||
|
22713
|
22713
22714-54010
Washer, Governor Gear Adjusting
[01.1981 - 07.1983] L..LN40 T=1.25,T=1.25 |
22714-54010 |
— | ||
|
22713
|
22713
22715-54010
Washer, Governor Gear Adjusting
[01.1981 - 07.1983] L..LN40 T=1.45,T=1.45 |
22715-54010 |
— | ||
|
22713
|
22713
22716-54010
Washer, Governor Gear Adjusting
[01.1981 - 07.1983] L..LN40 T=1.65,T=1.65 |
22716-54010 |
— | ||
|
22713
|
22713
22717-54010 Washer, Governor Gear Adjusting[01.1981 - 07.1983] L..LN40 T=1.85,T=1.85 |
22717-54010 |
US $6.86 |
||
|
22739
|
22739
22739-54020
Bolt, Governor Link Support
[01.1981 - 07.1983] L..LN40 |
22739-54020 |
— | ||
|
22741
|
22741
22741-54020
Holder Sub-Assy, Flyweight
[01.1981 - 07.1983] L..LN40 |
22741-54020 |
— | ||
|
22745
|
22745
22745-54010 Flyweight, Distributive Pump[01.1981 - 07.1983] L..LN40 |
22745-54010 |
US $36.33 |
||
|
22753A
|
22753A
22753-54010
Washer, Flyweight, No.1
[01.1981 - 07.1983] L..LN40 |
22753-54010 |
— | ||
|
22753B
|
22753B
22753-54020 Washer, Flyweight, No.2[01.1981 - 10.1982] L..LN40 |
22753-54020 |
US $1.54 |
||
|
22753B
|
22753B
22753-54290
Washer, Flyweight, No.1
[10.1982 - 07.1983] L..LN40 |
22753-54290 |
— | ||
| replacement | |||||
|
22753B
|
22753B
22753-54020 Washer, Flyweight, No.2[10.1982 - 07.1983] L..LN40 |
22753-54020 |
US $1.54 |
||
|
22787
|
22787
22787-54018
Plug, Governor Sleeve
[01.1981 - 10.1982] L..LN40 L=4.3,L=4.3 |
22787-54018 |
— | ||
|
22787
|
22787
22787-54019
Plug, Governor Sleeve
[01.1981 - 10.1982] L..LN40 L=4.5,L=4.5 |
22787-54019 |
— | ||
|
22787
|
22787
22787-54020
Plug, Governor Sleeve
[01.1981 - 10.1982] L..LN40 L=4.7,L=4.7 |
22787-54020 |
— | ||
|
22787
|
22787
22787-54021
Plug, Governor Sleeve
[01.1981 - 10.1982] L..LN40 L=4.9,L=4.9 |
22787-54021 |
— | ||
|
22787
|
22787
22787-54022
Plug, Governor Sleeve
[01.1981 - 10.1982] L..LN40 L=5.1,L=5.1 |
22787-54022 |
— | ||
|
22787
|
22787
22787-54023
Plug, Governor Sleeve
[01.1981 - 10.1982] L..LN40 L=5.3,L=5.3 |
22787-54023 |
— | ||
|
22787
|
22787
22787-54024
Plug, Governor Sleeve
[01.1981 - 10.1982] L..LN40 L=5.5,L=5.5 |
22787-54024 |
— | ||
|
22787
|
22787
22787-54025
Plug, Governor Sleeve
[01.1981 - 10.1982] L..LN40 L=5.7,L=5.7 |
22787-54025 |
— | ||
|
22787
|
22787
22787-54026
Plug, Governor Sleeve
[10.1982 - 07.1983] L..LN40 L=3.3,L=3.2 |
22787-54026 |
— | ||
|
22787
|
22787
22787-54027
Plug, Governor Sleeve
[10.1982 - 07.1983] L..LN40 L=3.4,L=3.4 |
22787-54027 |
— | ||
|
22787
|
22787
22787-54028
Plug, Governor Sleeve
[10.1982 - 07.1983] L..LN40 L=3.5,L=3.5 |
22787-54028 |
— | ||
|
22787
|
22787
22787-54029
Plug, Governor Sleeve
[10.1982 - 07.1983] L..LN40 L=3.6,L=3.6 |
22787-54029 |
— | ||
|
22787
|
22787
22787-54030
Plug, Governor Sleeve
[10.1982 - 07.1983] L..LN40 L=3.7,T=3.7 |
22787-54030 |
— | ||
|
22787
|
22787
22787-54031
Plug, Governor Sleeve
[10.1982 - 07.1983] L..LN40 L=3.8,T=3.8 |
22787-54031 |
— | ||
|
22787
|
22787
22787-54032
Plug, Governor Sleeve
[10.1982 - 07.1983] L..LN40 L=3.9,T=3.9 |
22787-54032 |
— | ||
|
22787
|
22787
22787-54033
Plug, Governor Sleeve
[10.1982 - 07.1983] L..LN40 L=4.0,T=4.0 |
22787-54033 |
— | ||
|
2272254010
|
2272254010
22722-54010
Nut, Governor Shaft Rock
|
22722-54010 |
— | ||
| replacement | |||||
|
2272254010
|
2272254010
22722-54470
Nut, Governor Shaft Rock
|
22722-54470 |
— | ||
|
9009905161
|
9009905161
90099-05161 Nut, Timer Round |
90099-05161 |
from US $1.25 |
||
|
9009918011
|
9009918011
90099-18011
Screw, Fuel Pipe Follow
|
90099-18011 |
— | ||
|
9009918022
|
9009918022
90099-18022
SCREW
|
90099-18022 |
— | ||
|
9020108106
|
9020108106
90201-08106 Washer(For Cap Nut) |
90201-08106 |
from US $0.76 |
||
|
9338116016
|
9338116016
93381-16016 SCREWWWASHER |
93381-16016 |
US $3.05 |
||
