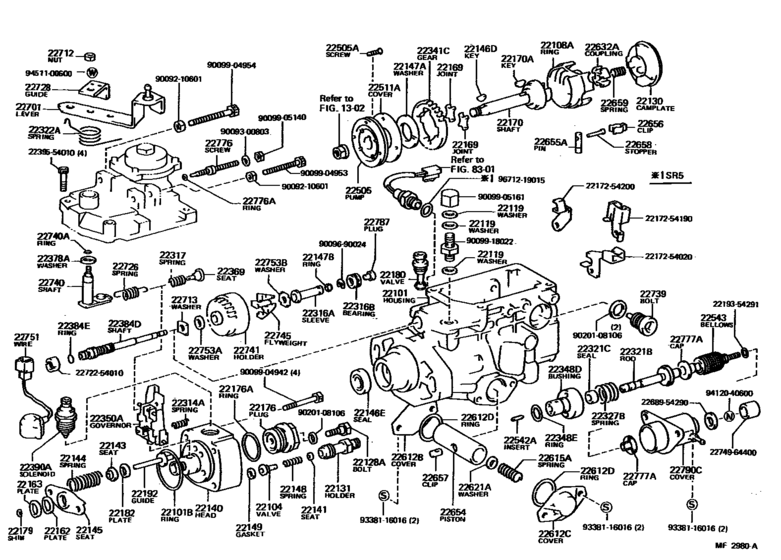

Injection Pump Body ([10.1982 - ] (8210- )L) Diagram Toyota PICKUP
- Year
- 1982 - 1983
- Sales region
- U.S.A.
- Frame
- LN40
- grade
- SR5
- ENGINE
- L
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 08.1982
- To
- 07.1983
- Gear Shift Type
- 5F
- Loading Capacity
- HLF
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22101
|
22101
22101-54250 Housing Sub-Assy, Injection PumpINJECTION PUMP [07.1982 - 10.1982] L..LN40 |
22101-54250 |
US $160.74 |
||
|
22101
|
22101
22101-54290
Housing Sub-Assy, Injection Pump
[10.1982 - 07.1983] L..LN40..SR5 |
22101-54290 |
— | ||
|
22101B
|
22101B
90099-14053 Ring, O(For Injection Pump Housing)[01.1981 - 07.1983] L..LN40 |
90099-14053 |
from US $3.84 |
||
|
22104
|
22104
22104-54060 Valve Sub-Assy, Injection Pump Delivery[01.1981 - 07.1983] L..LN40 |
22104-54060 |
from US $53.44 |
||
|
22108A
|
22108A
22108-54010
Ring Sub-Assy, Roller
[01.1981 - 07.1983] L..LN40 |
22108-54010 |
— | ||
|
22119
|
22119
22119-77020
Washer, Air Bleeder Nipple
[01.1981 - 07.1983] L..LN40 |
22119-77020 |
— | ||
| replacement | |||||
|
22119
|
22119
90201-12109 Washer, Air Bleeder Nipple[01.1981 - 07.1983] L..LN40 |
90201-12109 |
from US $1.25 |
||
|
22128A
|
22128A
22128-54010
Bolt, Distributive Head
[01.1981 - 07.1983] L..LN40 |
22128-54010 |
— | ||
|
22130
|
22130
22130-54010 Camplate Sub-Assy, Face[01.1981 - 07.1983] L..LN40 |
22130-54010 |
US $225.17 |
||
|
22131
|
22131
22190-54170 Holder, Delivery Valve[01.1981 - 07.1983] L..LN40 |
22190-54170 |
US $38.44 |
||
|
22140
|
22140
22140-54110
Head Sub-Assy, Distributive Pump
[09.1981 - 10.1982] L..LN40 |
22140-54110 |
— | ||
| replacement | |||||
|
22140
|
22140
22140-54280
Head Sub-Assy, Distributive Pump
[09.1981 - 10.1982] L..LN40 |
22140-54280 |
— | ||
|
22140
|
22140
22140-54410
Head Sub-Assy, Distributive Pump
[10.1982 - 07.1983] L..LN40 |
22140-54410 |
— | ||
|
22141
|
22141
22141-54250
Seat, Delivery Valve Spring
[09.1981 - 07.1983] L..LN40 |
22141-54250 |
— | ||
|
22143
|
22143
22143-54010
Seat, Spring Upper
[01.1981 - 07.1983] L..LN40 |
22143-54010 |
— | ||
|
22144
|
22144
22144-54180 Spring, Pump Plunger[08.1981 - 07.1983] L..LN40 |
22144-54180 |
US $8.27 |
||
|
22145
|
22145
22145-54170
Seat, Spring, Lower
[02.1981 - 07.1983] L..LN40 |
22145-54170 |
— | ||
| replacement | |||||
|
22145
|
22145
22145-54010
Seat, Spring, Lower
[02.1981 - 07.1983] L..LN40 |
22145-54010 |
— | ||
|
22146D
|
22146D
90099-13018 Key(For Drive Gear)[01.1981 - 07.1983] L..LN40 |
90099-13018 |
US $7.71 |
||
|
22146E
|
22146E
90099-15028
Seal(For Drive Shaft)
[01.1981 - 07.1983] L..LN40 |
90099-15028 |
— | ||
| replacement | |||||
|
22146E
|
22146E
22544-64740 Seal, Oil, Injection Pump Camshaft[01.1981 - 07.1983] L..LN40 |
22544-64740 |
from US $3.32 |
||
|
22147A
|
22147A
22161-54010 Washer, Drive Shaft[01.1981 - 07.1983] L..LN40 |
22161-54010 |
US $6.99 |
||
|
22147B
|
22147B
22147-54010
Ring, Governor Sleeve
[01.1981 - 10.1982] L..LN40 |
22147-54010 |
— | ||
|
22147B
|
22147B
22147-54290
Ring, Governor Sleeve
[10.1982 - 07.1983] L..LN40 |
22147-54290 |
— | ||
|
22148
|
22148
22148-54010 Spring, Delivery Valve[01.1981 - 07.1983] L..LN40 |
22148-54010 |
from US $1.40 |
||
|
22149
|
22149
22149-54010 Gasket, Delivery Valve[01.1981 - 07.1983] L..LN40 |
22149-54010 |
US $1.25 |
||
|
22162
|
22162
22162-54170
Plate, Plunger Upper
[02.1981 - 07.1983] L..LN40 |
22162-54170 |
— | ||
| replacement | |||||
|
22162
|
22162
22162-54010 Plate, Plunger Upper[02.1981 - 07.1983] L..LN40 |
22162-54010 |
US $3.52 |
||
|
22163
|
22163
22163-54170
Plate, Plunger Lower
[02.1981 - 07.1983] L..LN40 |
22163-54170 |
— | ||
| replacement | |||||
|
22163
|
22163
22163-54010 Plate, Plunger Lower[02.1981 - 07.1983] L..LN40 |
22163-54010 |
from US $2.85 |
||
|
22169
|
22169
22169-54180
Joint, Rubber
[02.1981 - 07.1983] L..LN40 |
22169-54180 |
— | ||
|
22170
|
22170
22170-54180 Shaft Sub-Assy, Drive[02.1981 - 07.1983] L..LN40 |
22170-54180 |
US $47.17 |
||
|
22170A
|
22170A
90099-13017 Key(For Drive Gear)[01.1981 - 07.1983] L..LN40 |
90099-13017 |
US $8.80 |
||
|
22176
|
22176
22176-54020 Plug, Distributive Head[01.1981 - 07.1983] L..LN40 |
22176-54020 |
from US $10.48 |
||
|
22176A
|
22176A
90099-14052
Ring, O(For Distributive Head Plug)
[01.1981 - 07.1983] L..LN40 |
90099-14052 |
— | ||
| replacement | |||||
|
22176A
|
22176A
22193-54772 Ring, O(For Distributive Head Plug)[01.1981 - 07.1983] L..LN40 |
22193-54772 |
from US $2.62 |
||
|
22179
|
22179
22179-54010
Shim, Plunger Adjusting
[01.1981 - 07.1983] L..LN40 T=1.9,T=1.9 |
22179-54010 |
— | ||
|
22179
|
22179
22179-54011
Shim, Plunger Adjusting
[01.1981 - 07.1983] L..LN40 T=2.0,T=2.0 |
22179-54011 |
— | ||
|
22179
|
22179
22179-54012
Shim, Plunger Adjusting
[01.1981 - 07.1983] L..LN40 T=2.1,T=2.1 |
22179-54012 |
— | ||
|
22179
|
22179
22179-54013
Shim, Plunger Adjusting
[01.1981 - 07.1983] L..LN40 T=2.2,T=2.2 |
22179-54013 |
— | ||
|
22179
|
22179
22179-54014
Shim, Plunger Adjusting
[01.1981 - 07.1983] L..LN40 T=2.3,T=2.3 |
22179-54014 |
— | ||
|
22179
|
22179
22179-54015
Shim, Plunger Adjusting
[01.1981 - 07.1983] L..LN40 T=2.4,T=2.4 |
22179-54015 |
— | ||
|
22179
|
22179
22179-54016
Shim, Plunger Adjusting
[01.1981 - 07.1983] L..LN40 T=2.5,T=2.5 |
22179-54016 |
— | ||
|
22179
|
22179
22179-54017
Shim, Plunger Adjusting
[01.1981 - 07.1983] L..LN40 T=2.6,T=2.6 |
22179-54017 |
— | ||
|
22179
|
22179
22179-54018
Shim, Plunger Adjusting
[01.1981 - 07.1983] L..LN40 T=2.7,T=2.7 |
22179-54018 |
— | ||
|
22179
|
22179
22179-54019
Shim, Plunger Adjusting
[01.1981 - 07.1983] L..LN40 T=2.8,T=2.8 |
22179-54019 |
— | ||
|
22179
|
22179
22179-54020
Shim, Plunger Adjusting
[01.1981 - 07.1983] L..LN40 T=2.9,T=2.9 |
22179-54020 |
— | ||
|
22180
|
22180
22180-54010
Valve Sub-Assy, Regulator
[01.1981 - 07.1983] L..LN40 |
22180-54010 |
— | ||
|
22182
|
22182
22182-54010
Plate, Tappet Adjusting Shim
[01.1981 - 07.1983] L..LN40 T=0.5,T=0.5 |
22182-54010 |
— | ||
|
22182
|
22182
22183-54010
Plate, Tappet Adjusting Shim
[01.1981 - 07.1983] L..LN40 T=0.8,T=0.8 |
22183-54010 |
— | ||
|
22182
|
22182
22184-54010
Plate, Tappet Adjusting Shim
[01.1981 - 07.1983] L..LN40 T=1.0,T=1.0 |
22184-54010 |
— | ||
|
22182
|
22182
22185-54010
Plate, Tappet Adjusting Shim
[01.1981 - 07.1983] L..LN40 T=1.2,T=1.2 |
22185-54010 |
— | ||
|
22182
|
22182
22186-54010
Plate, Tappet Adjusting Shim
[01.1981 - 07.1983] L..LN40 T=1.5,T=1.5 |
22186-54010 |
— | ||
|
22182
|
22182
22187-54010
Plate, Tappet Adjusting Shim
[01.1981 - 07.1983] L..LN40 T=1.8,T=1.8 |
22187-54010 |
— | ||
|
22182
|
22182
22188-54010 Plate, Tappet Adjusting Shim[01.1981 - 07.1983] L..LN40 T=2.0,T=2.0 |
22188-54010 |
US $4.14 |
||
|
22192
|
22192
22192-54010 Plate, Tappet Adjusting Shim[01.1981 - 07.1983] L..LN40 |
22192-54010 |
US $11.97 |
||
|
22314A
|
22314A
22314-54010
Spring, Lever Support
[01.1981 - 07.1983] L..LN40 |
22314-54010 |
— | ||
|
22314A
|
22314A
23314-54010
Spring, Fuel Filter
[07.1982 - 07.1983] L..LN40 |
23314-54010 |
— | ||
|
22316A
|
22316A
22316-54010
Sleeve, Governor
[09.1981 - 10.1982] L..LN40 |
22316-54010 |
— | ||
|
22316A
|
22316A
22316-54290
Sleeve, Governor
[10.1982 - 07.1983] L..LN40 ID=0.80 |
22316-54290 |
— | ||
|
22316B
|
22316B
90099-10148
Bearing, Ball(For Governor Sleeve)
[10.1982 - 07.1983] L..LN40 |
90099-10148 |
— | ||
|
22317
|
22317
22317-54010
Spring, Governor Domper
[01.1981 - 07.1983] L..LN40 K=0.2,L=6.5 |
22317-54010 |
— | ||
|
22321B
|
22321B
22321-54292
Rod, Push
[10.1982 - 07.1983] L..LN40 |
22321-54292 |
— | ||
|
22321C
|
22321C
90099-15032
Seal, Oil(For Push Rod)
[10.1982 - 07.1983] L..LN40 |
90099-15032 |
— | ||
| replacement | |||||
|
22321C
|
22321C
22544-54291
Seal, Oil(For Push Rod)
[10.1982 - 07.1983] L..LN40 |
22544-54291 |
— | ||
|
22322A
|
22322A
22322-54010
Spring, Return
[01.1981 - 07.1983] L..LN40 |
22322-54010 |
— | ||
|
22327B
|
22327B
22327-54290
Spring(For Altitude Compensating Timer Advancer)
[10.1982 - 07.1983] L..LN40 |
22327-54290 |
— | ||
|
22341C
|
22341C
22341-54010
Gear, Governor Drive
[01.1981 - 07.1983] L..LN40 |
22341-54010 |
— | ||
|
22348D
|
22348D
22348-54290
Bushing, Guide(For Altitude Compensating Timer Advancer)
[10.1982 - 07.1983] L..LN40 |
22348-54290 |
— | ||
|
22348E
|
22348E
22193-54290
Ring, O(For Guide Bushing)
[10.1982 - 07.1983] L..LN40 |
22193-54290 |
— | ||
|
22350A
|
22350A
22350-54060
Governor Assy, Torque Control
[01.1981 - 07.1983] L..LN40 |
22350-54060 |
— | ||
|
22369
|
22369
22369-54010
Seat, Governor Spring
[01.1981 - 07.1983] L..LN40 |
22369-54010 |
— | ||
|
22378A
|
22378A
22378-54010
Washer, Governor Thrust
[01.1981 - 07.1983] L..LN40 |
22378-54010 |
— | ||
| replacement | |||||
|
22378A
|
22378A
22378-64010 Washer, Governor Thrust[01.1981 - 07.1983] L..LN40 |
22378-64010 |
from US $0.42 |
||
|
22384D
|
22384D
22384-54010
Shaft, Governor
[09.1981 - 07.1983] L..LN40 |
22384-54010 |
— | ||
|
22384E
|
22384E
90099-14049 Ring, O(For Governor Main Shaft)[01.1981 - 07.1983] L..LN40 |
90099-14049 |
US $2.15 |
||
|
22390A
|
22390A
22390-54110
Solenoid Assy, Fuel Cut
[01.1981 - 07.1983] L..LN40 |
22390-54110 |
— | ||
| replacement | |||||
|
22390A
|
22390A
22019-6A511
Solenoid Assy, Fuel Cut
[01.1981 - 07.1983] L..LN40 |
22019-6A511 |
— | ||
|
22505
|
22505
22505-54010 Pump Sub-Assy, Fuel Feed[01.1981 - 07.1983] L..LN40 |
22505-54010 |
from US $104.83 |
||
|
22505A
|
22505A
90099-00723
Screw(For Fuel Feed Pump)
[01.1981 - 07.1983] L..LN40 |
90099-00723 |
— | ||
|
22511A
|
22511A
22511-54020
Cover, Feed Pump
[01.1981 - 07.1983] L..LN40 |
22511-54020 |
— | ||
|
22542A
|
22542A
22542-54291
Insert(For Altitude Compensating Timer Advancer)
[10.1982 - 07.1983] L..LN40 |
22542-54291 |
— | ||
|
22543
|
22543
22554-54290
Bellows(For Altitude Compensating Timer Advancer)
[10.1982 - 07.1983] L..LN40 |
22554-54290 |
— | ||
|
22612B
|
22612B
22612-54010
Cover, Timer
[01.1981 - 07.1983] L..LN40 |
22612-54010 |
— | ||
|
22612C
|
22612C
22612-54020
Cover, Timer
[01.1981 - 07.1983] L..LN40 |
22612-54020 |
— | ||
|
22612D
|
22612D
90099-14051
Ring, O, Distributor Housing
[01.1981 - 07.1983] L..LN40 |
90099-14051 |
— | ||
| replacement | |||||
|
22612D
|
22612D
22193-17840 Ring, O(For Timer Cover)[01.1981 - 07.1983] L..LN40 |
22193-17840 |
from US $2.64 |
||
|
22615A
|
22615A
22615-54020
Spring, Timer Outer
[01.1981 - 10.1982] L..LN40 |
22615-54020 |
— | ||
| replacement | |||||
|
22615A
|
22615A
22615-54180
Spring, Timer Outer
[01.1981 - 10.1982] L..LN40 |
22615-54180 |
— | ||
|
22615A
|
22615A
22615-54290
Spring, Timer Outer
[10.1982 - 07.1983] L..LN40 K=2.30,L=37.9,C.W=8.0 |
22615-54290 |
— | ||
|
22615A
|
22615A
22615-54291
Spring, Timer Outer
[10.1982 - 07.1983] L..LN40 K=2.50,L=35.6,C.W=7.5 |
22615-54291 |
— | ||
|
22615A
|
22615A
22615-58200
Spring, Timer Outer
[10.1982 - 07.1983] L..LN40 K=2.10,C.W=8.6 |
22615-58200 |
— | ||
|
22621A
|
22621A
22621-54010
Washer, Timer Adjusting
[01.1981 - 07.1983] L..LN40 T=0.5,T=0.5 |
22621-54010 |
— | ||
|
22621A
|
22621A
22622-54010
Washer, Timer Adjusting
[01.1981 - 07.1983] L..LN40 T=1.0,T=1.0 |
22622-54010 |
— | ||
|
22621A
|
22621A
22624-54010
Washer, Timer Adjusting
[01.1981 - 07.1983] L..LN40 T=0.2,T=0.2 |
22624-54010 |
— | ||
|
22632A
|
22632A
22632-54010 Coupling, Injection Pump[01.1981 - 07.1983] L..LN40 |
22632-54010 |
from US $49.10 |
||
|
22654
|
22654
22654-54010
Piston, Timer
[01.1981 - 10.1982] L..LN40 |
22654-54010 |
— | ||
|
22654
|
22654
22654-54290
Piston, Timer
[10.1982 - 07.1983] L..LN40 |
22654-54290 |
— | ||
|
22655A
|
22655A
22655-54010
Pin, Timer Slide
[01.1981 - 07.1983] L..LN40 |
22655-54010 |
— | ||
|
22656
|
22656
22656-54010
Clip, Timer
[01.1981 - 07.1983] L..LN40 |
22656-54010 |
— | ||
| replacement | |||||
|
22656
|
22656
22656-17840
Clip, Timer
[01.1981 - 07.1983] L..LN40 |
22656-17840 |
— | ||
|
22657
|
22657
22657-54010
Clip, Timer
[01.1981 - 07.1983] L..LN40 |
22657-54010 |
— | ||
|
22658
|
22658
22658-54010
Stopper, Timer
[01.1981 - 07.1983] L..LN40 |
22658-54010 |
— | ||
| replacement | |||||
|
22658
|
22658
22658-17840
Stopper, Timer
[01.1981 - 07.1983] L..LN40 |
22658-17840 |
— | ||
|
22659
|
22659
22659-54010
Spring, Coupling
[01.1981 - 07.1983] L..LN40 |
22659-54010 |
— | ||
| replacement | |||||
|
22659
|
22659
22659-64150
Spring, Coupling
[01.1981 - 07.1983] L..LN40 |
22659-64150 |
— | ||
|
22701
|
22701
22701-54120
Lever Sub-Assy, Adjusting
[01.1981 - 07.1983] L..LN40 NO MARK |
22701-54120 |
— | ||
| replacement | |||||
|
22701
|
22701
22701-56350 Lever Sub-Assy, Adjusting[01.1981 - 07.1983] L..LN40 NO MARK |
22701-56350 |
US $8.74 |
||
|
22701
|
22701
22701-54121
Lever Sub-Assy, Adjusting
[01.1981 - 07.1983] L..LN40 MARK "0" |
22701-54121 |
— | ||
| replacement | |||||
|
22701
|
22701
22701-17010 Lever Sub-Assy, Adjusting[01.1981 - 07.1983] L..LN40 MARK "0" |
22701-17010 |
US $8.74 |
||
|
22712
|
22712
22775-77121
Nut, Rock
[01.1981 - 07.1983] L..LN40 |
22775-77121 |
— | ||
|
22713
|
22713
22713-54010
Washer, Governor Gear Adjusting
[01.1981 - 07.1983] L..LN40 T=1.05,T=1.05 |
22713-54010 |
— | ||
|
22713
|
22713
22714-54010
Washer, Governor Gear Adjusting
[01.1981 - 07.1983] L..LN40 T=1.25,T=1.25 |
22714-54010 |
— | ||
|
22713
|
22713
22715-54010
Washer, Governor Gear Adjusting
[01.1981 - 07.1983] L..LN40 T=1.45,T=1.45 |
22715-54010 |
— | ||
|
22713
|
22713
22716-54010
Washer, Governor Gear Adjusting
[01.1981 - 07.1983] L..LN40 T=1.65,T=1.65 |
22716-54010 |
— | ||
|
22713
|
22713
22717-54010 Washer, Governor Gear Adjusting[01.1981 - 07.1983] L..LN40 T=1.85,T=1.85 |
22717-54010 |
US $6.86 |
||
|
22726
|
22726
22726-54060
Spring, Speed Control
[01.1981 - 07.1983] L..LN40 |
22726-54060 |
— | ||
|
22728
|
22728
22728-54010
Guide, Return Spring
[01.1981 - 07.1983] L..LN40 |
22728-54010 |
— | ||
|
22739
|
22739
22739-54020
Bolt, Governor Link Support
[01.1981 - 07.1983] L..LN40 |
22739-54020 |
— | ||
|
22740
|
22740
22740-54010
Shaft Sub-Assy, Governor Adjusting
[01.1981 - 07.1983] L..LN40 |
22740-54010 |
— | ||
|
22740A
|
22740A
90099-14048
Bearing, Ball(For Governor Sleeve)
[01.1981 - 07.1983] L..LN40 |
90099-14048 |
— | ||
| replacement | |||||
|
22740A
|
22740A
22193-54770 Ring, O(For Governor Adjusting Shaft)[01.1981 - 07.1983] L..LN40 |
22193-54770 |
from US $1.98 |
||
|
22741
|
22741
22741-54020
Holder Sub-Assy, Flyweight
[01.1981 - 07.1983] L..LN40 |
22741-54020 |
— | ||
|
22745
|
22745
22745-54010 Flyweight, Distributive Pump[01.1981 - 07.1983] L..LN40 |
22745-54010 |
US $36.33 |
||
|
22751
|
22751
22751-54110
Wire Sub-Assy, Fuel Cut Solenoid
[01.1981 - 07.1983] L..LN40 |
22751-54110 |
— | ||
| replacement | |||||
|
22751
|
22751
22751-54150
Wire Sub-Assy, Fuel Cut Solenoid
[01.1981 - 07.1983] L..LN40 |
22751-54150 |
— | ||
|
22753A
|
22753A
22753-54010
Washer, Flyweight, No.1
[01.1981 - 07.1983] L..LN40 |
22753-54010 |
— | ||
|
22753B
|
22753B
22753-54020 Washer, Flyweight, No.2[01.1981 - 10.1982] L..LN40 |
22753-54020 |
US $1.54 |
||
|
22753B
|
22753B
22753-54290
Washer, Flyweight, No.1
[10.1982 - 07.1983] L..LN40 |
22753-54290 |
— | ||
| replacement | |||||
|
22753B
|
22753B
22753-54020 Washer, Flyweight, No.2[10.1982 - 07.1983] L..LN40 |
22753-54020 |
US $1.54 |
||
|
22776
|
22776
22776-54110 Screw, Smoke Set Adjusting[01.1981 - 07.1983] L..LN40 |
22776-54110 |
US $4.72 |
||
|
22776A
|
22776A
90099-14047
Ring, O(For Smoke Set Screw)
[01.1981 - 07.1983] L..LN40 |
90099-14047 |
— | ||
| replacement | |||||
|
22776A
|
22776A
22193-54771 Ring, O(For Smoke Set Screw)[01.1981 - 07.1983] L..LN40 |
22193-54771 |
US $1.27 |
||
|
22777A
|
22777A
22777-54290
Cap, Rubber(For Altitude Compensating Timer Advancer)
[10.1982 - 07.1983] L..LN40 |
22777-54290 |
— | ||
|
22787
|
22787
22787-54018
Plug, Governor Sleeve
[01.1981 - 10.1982] L..LN40 L=4.3,L=4.3 |
22787-54018 |
— | ||
|
22787
|
22787
22787-54019
Plug, Governor Sleeve
[01.1981 - 10.1982] L..LN40 L=4.5,L=4.5 |
22787-54019 |
— | ||
|
22787
|
22787
22787-54020
Plug, Governor Sleeve
[01.1981 - 10.1982] L..LN40 L=4.7,L=4.7 |
22787-54020 |
— | ||
|
22787
|
22787
22787-54021
Plug, Governor Sleeve
[01.1981 - 10.1982] L..LN40 L=4.9,L=4.9 |
22787-54021 |
— | ||
|
22787
|
22787
22787-54022
Plug, Governor Sleeve
[01.1981 - 10.1982] L..LN40 L=5.1,L=5.1 |
22787-54022 |
— | ||
|
22787
|
22787
22787-54023
Plug, Governor Sleeve
[01.1981 - 10.1982] L..LN40 L=5.3,L=5.3 |
22787-54023 |
— | ||
|
22787
|
22787
22787-54024
Plug, Governor Sleeve
[01.1981 - 10.1982] L..LN40 L=5.5,L=5.5 |
22787-54024 |
— | ||
|
22787
|
22787
22787-54025
Plug, Governor Sleeve
[01.1981 - 10.1982] L..LN40 L=5.7,L=5.7 |
22787-54025 |
— | ||
|
22787
|
22787
22787-54026
Plug, Governor Sleeve
[10.1982 - 07.1983] L..LN40 L=3.3,L=3.2 |
22787-54026 |
— | ||
|
22787
|
22787
22787-54027
Plug, Governor Sleeve
[10.1982 - 07.1983] L..LN40 L=3.4,L=3.4 |
22787-54027 |
— | ||
|
22787
|
22787
22787-54028
Plug, Governor Sleeve
[10.1982 - 07.1983] L..LN40 L=3.5,L=3.5 |
22787-54028 |
— | ||
|
22787
|
22787
22787-54029
Plug, Governor Sleeve
[10.1982 - 07.1983] L..LN40 L=3.6,L=3.6 |
22787-54029 |
— | ||
|
22787
|
22787
22787-54030
Plug, Governor Sleeve
[10.1982 - 07.1983] L..LN40 L=3.7,T=3.7 |
22787-54030 |
— | ||
|
22787
|
22787
22787-54031
Plug, Governor Sleeve
[10.1982 - 07.1983] L..LN40 L=3.8,T=3.8 |
22787-54031 |
— | ||
|
22787
|
22787
22787-54032
Plug, Governor Sleeve
[10.1982 - 07.1983] L..LN40 L=3.9,T=3.9 |
22787-54032 |
— | ||
|
22787
|
22787
22787-54033
Plug, Governor Sleeve
[10.1982 - 07.1983] L..LN40 L=4.0,T=4.0 |
22787-54033 |
— | ||
|
22790C
|
22790C
22790-54291
Cover, Timer(For Altitude Compensating Timer Advancer)
[10.1982 - 07.1983] L..LN40 |
22790-54291 |
— | ||
| replacements | |||||
|
22790C
|
22790C
22193-54400
Ring, O(For Timer Cover)
[10.1982 - 07.1983] L..LN40 |
22193-54400 |
— | ||
|
22790C
|
22790C
22790-64410 Cover, Timer(For Altitude Compensating Timer Advancer)TIMER(FOR ALTITUDE COMPENSATING TIMER ADVANCER) [10.1982 - 07.1983] L..LN40 |
22790-64410 |
US $119.39 |
||
|
2217254020
|
2217254020
22172-54020
Clip, Connector Support, Solenoid
|
22172-54020 |
— | ||
|
2217254190
|
2217254190
22172-54190
Clip, Connector Support, Solenoid
|
22172-54190 |
— | ||
|
2217254200
|
2217254200
22172-54200
Clip, Connector Support, Solenoid
|
22172-54200 |
— | ||
|
2219354291
|
2219354291
22193-54291
Ring, O(For Bellows Sub-Assy)
|
22193-54291 |
— | ||
|
2239554010
|
2239554010
22395-54010
Bolt, Socket(For Injection Pump Governor Cover)
|
22395-54010 |
— | ||
|
2268954290
|
2268954290
22689-54290
Washer, Air Bleeder Nipple(For Screw Plug)
|
22689-54290 |
— | ||
|
2272254010
|
2272254010
22722-54010
Nut, Governor Shaft Rock
|
22722-54010 |
— | ||
| replacement | |||||
|
2272254010
|
2272254010
22722-54470
Nut, Governor Shaft Rock
|
22722-54470 |
— | ||
|
2274964400
|
2274964400
22749-64400
Collar, Smoke Set Adjusting
|
22749-64400 |
— | ||
|
9009210601
|
9009210601
90092-10601
Nut, Rock
|
90092-10601 |
— | ||
| replacement | |||||
|
9009210601
|
9009210601
90092-10101
Nut (For Front Wiper Arm Setting)
|
90092-10101 |
— | ||
|
9009300803
|
9009300803
90093-00803
Washer, Plate(For Connecting Pin)
|
90093-00803 |
— | ||
| replacement | |||||
|
9009300803
|
9009300803
90093-00802
Washer, Plate(For Connecting Pin)
|
90093-00802 |
— | ||
|
9009690024
|
9009690024
90096-90024
Ring, O(For Stopper Lever)
|
90096-90024 |
— | ||
|
9009904942
|
9009904942
90099-04942
Bolt, Socket(For Injection Pump Governor Cover)
|
90099-04942 |
— | ||
| replacement | |||||
|
9009904942
|
9009904942
22395-58200
Bolt, Socket(For Injection Pump Governor Cover)
|
22395-58200 |
— | ||
|
9009904953
|
9009904953
90099-04953
New Genuine Part
|
90099-04953 |
— | ||
|
9009904954
|
9009904954
90099-04954
BOLT
|
90099-04954 |
— | ||
|
9009905140
|
9009905140
90099-05140
New Genuine Part
|
90099-05140 |
— | ||
|
9009905161
|
9009905161
90099-05161 Nut, Timer Round |
90099-05161 |
from US $1.25 |
||
|
9009918022
|
9009918022
90099-18022
SCREW
|
90099-18022 |
— | ||
|
9020108106
|
9020108106
90201-08106 Washer(For Cap Nut) |
90201-08106 |
from US $0.76 |
||
|
9338116016
|
9338116016
93381-16016 SCREWWWASHER |
93381-16016 |
US $3.05 |
||
|
9412040600
|
9412040600
94120-40600 Nut, Wire Adjusting, No.1 |
94120-40600 |
US $3.05 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $2.15 |
||
|
9671219015
|
9671219015
96712-19015
Ring, O(For Lever Connecting Pin)
|
96712-19015 |
— | ||
| replacement | |||||
|
9671219015
|
9671219015
22193-64750 Ring, O(For Lever Connecting Pin) |
22193-64750 |
from US $0.84 |
||
