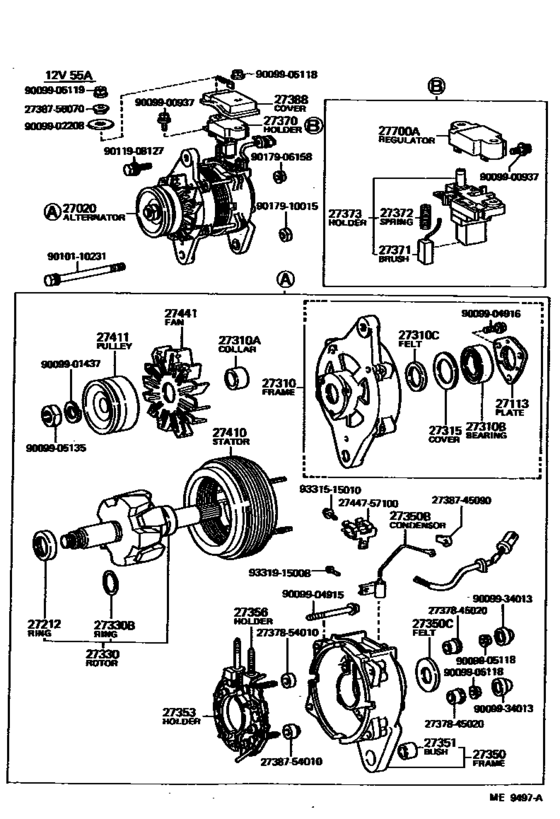

Alternator ([01.1981 - ] (8101- )L) Diagram Toyota PICKUP
- Year
- 1982 - 1983
- Sales region
- U.S.A.
- Frame
- LN40
- grade
- SR5
- ENGINE
- L
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 08.1982
- To
- 07.1983
- Gear Shift Type
- 5F
- Loading Capacity
- HLF
- Building Condition
- IV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27020-54080 Alternator Assy[01.1981 - 07.1983] L..LN40 12V 55A,W/O REGULATOR |
27020-54080 |
US $1,164.80 |
||
|
27113
|
27113
27312-56070
Plate, Bearing Retainer, Alternator
[01.1981 - 07.1983] L..LN40 12V 55A |
27312-56070 |
— | ||
|
27212
|
27212
27412-54040
Ring, Space(For Alternator Rotor)
[01.1981 - 07.1983] L..LN40 12V 55A |
27412-54040 |
— | ||
|
27310
|
27310
27310-54080
Frame Assy, Drive End, Alternator
[01.1981 - 07.1983] L..LN40 12V 55A |
27310-54080 |
— | ||
|
27310A
|
27310A
90099-19251
Collar Or Nut(For Alternator Drive End Frame)
[01.1981 - 07.1983] L..LN40 12V 55A |
90099-19251 |
— | ||
|
27310B
|
27310B
90099-10120
Bearing(For Alternator Drive End Frame)
[01.1981 - 07.1983] L..LN40 12V 55A |
90099-10120 |
— | ||
|
27310C
|
27310C
90099-02207
Felt(For Alternator Drive End Frame)
[01.1981 - 07.1983] L..LN40 12V 55A |
90099-02207 |
— | ||
|
27315
|
27315
27315-56070
Cover, Alternator Felt, Inner No.1
[01.1981 - 07.1983] L..LN40 12V 55A |
27315-56070 |
— | ||
|
27330
|
27330
27330-54060
Rotor Assy, Alternator
[01.1981 - 07.1983] L..LN40 12V 55A |
27330-54060 |
— | ||
|
27330B
|
27330B
90099-07108
Ring, Snap(For Alternator Rotor)
[01.1981 - 07.1983] L..LN40 12V 55A |
90099-07108 |
— | ||
|
27350
|
27350
27350-57061
Frame Assy, Rectifier End
[01.1981 - 07.1983] L..LN40 12V 55A |
27350-57061 |
— | ||
|
27350B
|
27350B
90099-52066
Condenser, Alternator
[01.1981 - 07.1983] L..LN40 12V 55A |
90099-52066 |
— | ||
| replacement | |||||
|
27350B
|
27350B
90099-52035 Condenser, AlternatorRECTIFIER END [01.1981 - 07.1983] L..LN40 12V 55A |
90099-52035 |
US $13.11 |
||
|
27350C
|
27350C
90099-02181
Felt (For Alternator Rectifier End Frame)
[01.1981 - 07.1983] L..LN40 12V 55A |
90099-02181 |
— | ||
|
27351
|
27351
27351-56013
Bush(For Alternator Rectifier End Frame)
[01.1981 - 07.1983] L..LN40 12V 55A |
27351-56013 |
— | ||
|
27353
|
27353
27353-57070
Holder, W/rectifier Positive, Alternator
[01.1981 - 07.1983] L..LN40 12V 55A |
27353-57070 |
— | ||
| replacement | |||||
|
27353
|
27353
27353-54180
Holder, W/rectifier Positive, Alternator
[01.1981 - 07.1983] L..LN40 12V 55A |
27353-54180 |
— | ||
|
27356
|
27356
27356-57070
Holder, W/rectifier Negative, Alternator
[01.1981 - 07.1983] L..LN40 12V 55A |
27356-57070 |
— | ||
| replacement | |||||
|
27356
|
27356
27356-54180
Holder, W/rectifier Negative, Alternator
[01.1981 - 07.1983] L..LN40 12V 55A |
27356-54180 |
— | ||
|
27370
|
27370
27370-57070
Holder Assy, Alternator Brush
[01.1981 - 07.1983] L..LN40 12V 55A |
27370-57070 |
— | ||
|
27371
|
27371
27371-56070
Brush, Alternator
[01.1981 - 07.1983] L..LN40 12V 55A |
27371-56070 |
— | ||
| replacement | |||||
|
27371
|
27371
27371-54412 Brush, Alternator[01.1981 - 07.1983] L..LN40 12V 55A |
27371-54412 |
from US $3.32 |
||
|
27372
|
27372
27372-56070
Spring, Alternator Brush
[01.1981 - 07.1983] L..LN40 12V 55A |
27372-56070 |
— | ||
|
27373
|
27373
27373-57070
Holder, Alternator Brush, A
[01.1981 - 07.1983] L..LN40 12V 55A |
27373-57070 |
— | ||
|
27388
|
27388
27388-54070
Cover, Frame Brush
[01.1981 - 07.1983] L..LN40 12V 55A |
27388-54070 |
— | ||
|
27410
|
27410
27410-57070
Stator Assy, Alternator
[01.1981 - 07.1983] L..LN40 12V 55A |
27410-57070 |
— | ||
|
27411
|
27411
27411-54020
Pulley, Alternator
[01.1981 - 07.1983] L..LN40 12V 55A |
27411-54020 |
— | ||
|
27441
|
27441
27441-54070
Fan, Alternator
[01.1981 - 07.1983] L..LN40 12V 55A |
27441-54070 |
— | ||
|
27700A
|
27700A
27700-57060 Regulator Assy, Generator[01.1981 - 07.1983] L..LN40 IC REGULATOR |
27700-57060 |
US $276.64 |
||
| replacements | |||||
|
27700A
|
27700A
27700-64030 Regulator Assy, Generator[01.1981 - 07.1983] L..LN40 IC REGULATOR |
27700-64030 |
US $276.64 |
||
|
27700A
|
27700A
90099-05118
New Genuine Part
[01.1981 - 07.1983] L..LN40 IC REGULATOR |
90099-05118 |
— | ||
|
2737845020
|
2737845020
27378-45020
Insulator, Alternator, No.1
|
27378-45020 |
— | ||
|
2737854010
|
2737854010
27378-54010
Insulator, Alternator, No.2
|
27378-54010 |
— | ||
|
2738745090
|
2738745090
27387-45090
Insulator, Terminal
|
27387-45090 |
— | ||
|
2738754010
|
2738754010
27387-54010
Insulator, Terminal
|
27387-54010 |
— | ||
|
2738756070
|
2738756070
27387-56070
Insulator, Terminal
|
27387-56070 |
— | ||
|
2744757100
|
2744757100
27447-57100
Clip, Alternator Cord
|
27447-57100 |
— | ||
|
9009900937
|
9009900937
90099-00937
New Genuine Part
|
90099-00937 |
— | ||
|
9009901437
|
9009901437
90099-01437
New Genuine Part
|
90099-01437 |
— | ||
|
9009902208
|
9009902208
90099-02208
New Genuine Part
|
90099-02208 |
— | ||
|
9009904915
|
9009904915
90099-04915
New Genuine Part
|
90099-04915 |
— | ||
|
9009904916
|
9009904916
90099-04916
New Genuine Part
|
90099-04916 |
— | ||
|
9009905118
|
9009905118
90099-05118
New Genuine Part
|
90099-05118 |
— | ||
|
9009905119
|
9009905119
90099-05119
New Genuine Part
|
90099-05119 |
— | ||
|
9009905135
|
9009905135
90099-05135
New Genuine Part
|
90099-05135 |
— | ||
|
9009934013
|
9009934013
90099-34013
Cap, Alternator Terminal
|
90099-34013 |
— | ||
|
9010110231
|
9010110231
90101-10231 Bolt(For Alternator) |
90101-10231 |
US $8.39 |
||
|
9011908127
|
9011908127
90119-08127 BOLT |
90119-08127 |
US $1.14 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.95 |
||
|
9017910015
|
9017910015
90179-10015 NUT |
90179-10015 |
from US $1.03 |
||
|
9331515010
|
9331515010
93315-15010 New Genuine Part |
93315-15010 |
US $1.25 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $3.05 |
||
