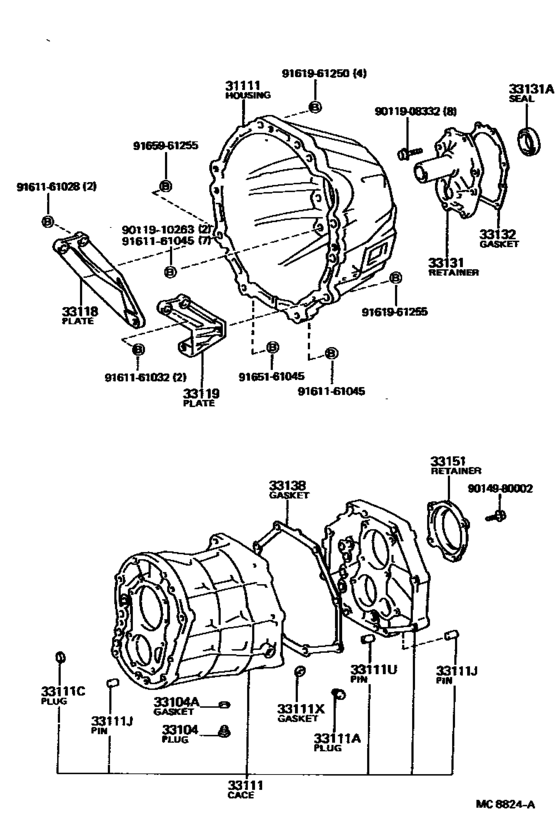

Clutch Housing & Transmission Case (Mtm) ([08.1982 - ] (8208- )LN40) Diagram Toyota PICKUP
- Year
- 1982 - 1983
- Sales region
- U.S.A.
- Frame
- LN40
- grade
- SR5
- ENGINE
- L
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 08.1982
- To
- 07.1983
- Gear Shift Type
- 5F
- Loading Capacity
- HLF
- Building Condition
- IV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31111
|
31111
31111-22111 Housing, Clutch[08.1982 - 07.1983] LN40 |
31111-22111 |
US $390.21 |
||
| replacement | |||||
|
31111
|
31111
31111-22114 Housing, Clutch[08.1982 - 07.1983] LN40 |
31111-22114 |
US $266.45 |
||
|
31111
|
31111
31112-35010 Housing, Clutch[03.1981 - 08.1982] LN40 |
31112-35010 |
US $417.87 |
||
|
33104
|
33104
90341-18057 Drain Plug (with Magnet)[08.1978 - 07.1983] LN40,RN3#,4#..MTM |
90341-18057 |
from US $6.27 |
||
|
33104A
|
33104A
90430-18007
Gasket(For Water Hole)
[02.1982 - 08.1982] LN40,RN38,48;RN44..3QT..USA |
90430-18007 |
— | ||
| replacement | |||||
|
33104A
|
33104A
90430-18008 Gasket[02.1982 - 08.1982] LN40,RN38,48;RN44..3QT..USA |
90430-18008 |
from US $0.84 |
||
|
33111
|
33111
33101-35010 Case, Manual Transmission[08.1982 - 07.1983] LN40 |
33101-35010 |
US $557.65 |
||
| replacement | |||||
|
33111
|
33111
33101-71020 Case, Manual Transmission[08.1982 - 07.1983] LN40 |
33101-71020 |
US $417.87 |
||
|
33111
|
33111
33111-35041
Case, Manual Transmission
[01.1981 - 08.1982] LN40 |
33111-35041 |
— | ||
| replacements | |||||
|
33111
|
33111
33111-35042 Case, Manual Transmission[01.1981 - 08.1982] LN40 |
33111-35042 |
US $677.04 |
||
|
33111
|
33111
33131-35022 Retainer, Bearing, Front(Mtm)[01.1981 - 08.1982] LN40 |
33131-35022 |
US $59.70 |
||
|
33111
|
33111
33132-35022 Gasket, Front Bearing Retainer(Mtm)[01.1981 - 08.1982] LN40 |
33132-35022 |
US $3.49 |
||
|
33111
|
33111
90363-32019
Bearing (For Input Shaft Front)
[01.1981 - 08.1982] LN40 |
90363-32019 |
— | ||
|
33111A
|
33111A
90341-18002 Plug, No.1[08.1978 - 02.1983] LN40,RN3#,4#..MTM |
90341-18002 |
from US $3.50 |
||
|
33111A
|
33111A
90341-18006 Plug (No magnet)[05.1983 - 07.1983] LN40,RN3#,4#..MTM |
90341-18006 |
from US $3.23 |
||
|
33111C
|
33111C
90331-14004 Plug, Manual Transmission Case[08.1982 - 07.1983] LN40 OD=14 |
90331-14004 |
US $4.68 |
||
|
33111J
|
33111J
90250-12002 Pin, Straight(For Manual Transmission Case)[02.1982 - 08.1982] LN40,RN38,48;RN44..3QT..USA L=16,OD=12 |
90250-12002 |
from US $1.24 |
||
|
33111U
|
33111U
90253-15001 Pin, Straight(For Clutch Housing Set)[08.1982 - 07.1983] LN40 L=14,OD=15 |
90253-15001 |
from US $1.05 |
||
|
33111X
|
33111X
90430-18007
Gasket(For Water Hole)
[02.1982 - 08.1982] LN40,RN38,48;RN44..3QT..USA |
90430-18007 |
— | ||
| replacement | |||||
|
33111X
|
33111X
90430-18008 Gasket[02.1982 - 08.1982] LN40,RN38,48;RN44..3QT..USA |
90430-18008 |
from US $0.84 |
||
|
33118
|
33118
33118-25020 Plate, Stiffener, Rh(Mtm)[01.1981 - 07.1983] LN40 |
33118-25020 |
US $22.01 |
||
|
33119
|
33119
33119-25020 Plate, Stiffener, Lh(Mtm)[01.1981 - 07.1983] LN40 |
33119-25020 |
US $31.62 |
||
|
33131
|
33131
33131-28010 Retainer, Bearing, Front(Mtm)[08.1982 - 07.1983] LN40 |
33131-28010 |
US $74.26 |
||
|
33131
|
33131
33131-35021
Retainer, Bearing, Front(Mtm)
[02.1982 - 08.1982] LN40,RN38,48;RN44..3QT..USA |
33131-35021 |
— | ||
|
33131A
|
33131A
90311-30115 Seal, Oil(For Transmission Front Bearing Retainer)[08.1980 - 07.1983] LN40,RN3#,4#..MTM |
90311-30115 |
from US $3.94 |
||
|
33132
|
33132
33132-28010 Gasket, Front Bearing Retainer(Mtm)[08.1982 - 07.1983] LN40 |
33132-28010 |
from US $3.46 |
||
|
33132
|
33132
33132-35021 Gasket, Front Bearing Retainer(Mtm)[02.1982 - 08.1982] LN40,RN38,48;RN44..3QT..USA |
33132-35021 |
US $3.93 |
||
|
33138
|
33138
33138-28010 Gasket, Intermediate Plate[08.1982 - 07.1983] LN40 |
33138-28010 |
US $9.76 |
||
|
33151
|
33151
33151-28010
Retainer, Output Shaft Rear Bearing(Mtm)
[08.1982 - 07.1983] LN40 |
33151-28010 |
— | ||
|
33151
|
33151
33151-35011
Retainer, Output Shaft Rear Bearing(Mtm)
[02.1982 - 08.1982] LN40,RN38,48;RN44..3QT..USA |
33151-35011 |
— | ||
|
9011908332
|
9011908332
90119-08332 Bolt(For Manual Transmission Oil Pump Cover) |
90119-08332 |
from US $1.20 |
||
|
9011910263
|
9011910263
90119-10263
New Genuine Part
|
90119-10263 |
— | ||
| replacement | |||||
|
9011910263
|
9011910263
91651-61045 BOLT |
91651-61045 |
US $0.96 |
||
|
9014980002
|
9014980002
90149-80002 BOLT |
90149-80002 |
US $0.51 |
||
|
9161161028
|
9161161028
91611-61028
Bolt(For Transaxle Case & Engine Setting)
|
91611-61028 |
— | ||
| replacement | |||||
|
9161161028
|
9161161028
91612-61028 Bolt(For Transaxle Case & Engine Setting) |
91612-61028 |
US $3.05 |
||
|
9161161032
|
9161161032
91611-61032 New Genuine Part |
91611-61032 |
US $2.77 |
||
| replacement | |||||
|
9161161032
|
9161161032
91612-61032 New Genuine Part |
91612-61032 |
US $1.65 |
||
|
9161161045
|
9161161045
91611-61045
Bolt, Hexagon(For Idle Gear Bolt Lock)
|
91611-61045 |
— | ||
| replacement | |||||
|
9161161045
|
9161161045
91612-61045 Bolt(For Transaxle & Engine Setting) |
91612-61045 |
from US $1.12 |
||
|
9161961250
|
9161961250
91619-61250 Bolt(For Transmission Case & Engine Setting) |
91619-61250 |
from US $1.90 |
||
|
9161961255
|
9161961255
91619-61255 Bolt(For Transaxle & Engine Setting) |
91619-61255 |
US $2.15 |
||
|
9165161045
|
9165161045
91651-61045 BOLT |
91651-61045 |
US $0.96 |
||
|
9165961255
|
9165961255
91659-61255 New Genuine Part |
91659-61255 |
US $3.06 |
||
