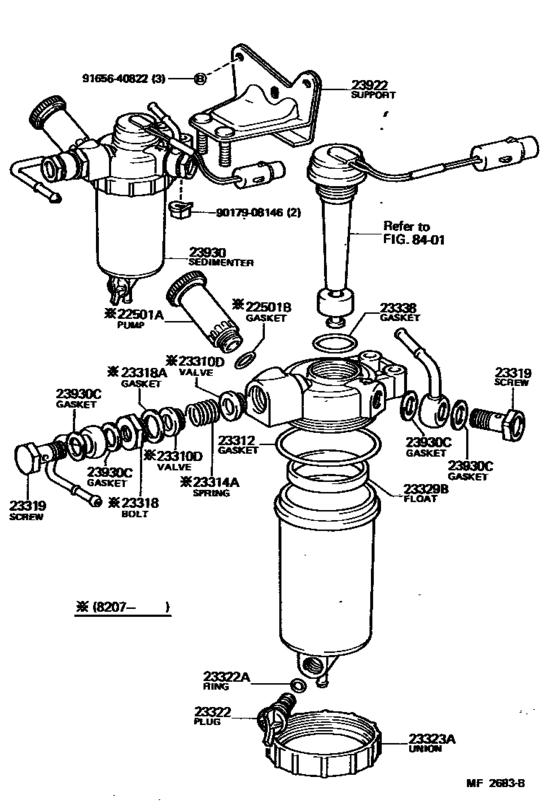

Fuel Filter ([01.1981 - ] (8101- )L) Diagram Toyota PICKUP
- Year
- 1982 - 1983
- Sales region
- U.S.A.
- Frame
- LN40
- grade
- SR5
- ENGINE
- L
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 08.1982
- To
- 07.1983
- Gear Shift Type
- 5F
- Loading Capacity
- HLF
- Building Condition
- IV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22501A
|
22501A
22501-54010 Pump Sub-Assy, Priming[07.1982 - 07.1983] L..LN40 |
22501-54010 |
US $38.44 |
||
|
22501B
|
22501B
23344-54020 Gasket(For Priming Pump)[07.1982 - 07.1983] L..LN40 |
23344-54020 |
US $0.98 |
||
|
23310D
|
23310D
23316-54010 Valve Sub-Assy, Fuel Filter[07.1982 - 07.1983] L..LN40 |
23316-54010 |
from US $6.50 |
||
|
23312
|
23312
23312-54010 Gasket, Filter Bowl[01.1981 - 07.1983] L..LN40 |
23312-54010 |
US $9.43 |
||
|
23314A
|
23314A
23314-54010
Spring, Fuel Filter
[07.1982 - 07.1983] L..LN40 |
23314-54010 |
— | ||
|
23318
|
23318
22501-54010 Pump Sub-Assy, Priming[07.1982 - 07.1983] L..LN40 |
22501-54010 |
US $38.44 |
||
|
23318
|
23318
23323-54020
Bolt, Union
[07.1982 - 07.1983] L..LN40 |
23323-54020 |
— | ||
|
23318A
|
23318A
15318-44010 Gasket, Oil Pressure Valve[07.1982 - 07.1983] L..LN40 |
15318-44010 |
US $5.59 |
||
|
23319
|
23319
90099-18011
Screw, Fuel Pipe Follow
[01.1981 - 07.1983] L..LN40 |
90099-18011 |
— | ||
|
23322
|
23322
23322-54010 Plug,air(For Oil Cooler Drain Cock)[01.1981 - 07.1983] L..LN40 |
23322-54010 |
from US $4.73 |
||
|
23322A
|
23322A
23344-54010 O-Ring (For Drain Plug)[01.1981 - 07.1983] L..LN40 |
23344-54010 |
from US $1.54 |
||
|
23323A
|
23323A
23323-54010
Nut(For Fuel Filter Case Support)
[01.1981 - 07.1983] L..LN40 |
23323-54010 |
— | ||
|
23329B
|
23329B
23329-54010
Float, Level Warning
[01.1981 - 07.1983] L..LN40 |
23329-54010 |
— | ||
|
23338
|
23338
23338-54010 Gasket(For Warning Switch)[01.1981 - 07.1983] L..LN40 |
23338-54010 |
US $3.32 |
||
|
23922
|
23922
23922-54030
Support, Fuel Sedimenter
[01.1981 - 07.1983] L..LN40 |
23922-54030 |
— | ||
|
23930
|
23930
23930-54030 Sedimenter Assy, Fuel[01.1981 - 07.1983] L..LN40 |
23930-54030 |
US $350.90 |
||
|
23930C
|
23930C
22447-47030 Gasket, Nipple Union(For Fuel)[01.1981 - 07.1983] L..LN40 |
22447-47030 |
US $0.84 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9165640822
|
9165640822
91656-40822
New Genuine Part
|
91656-40822 |
— | ||
| replacement | |||||
|
9165640822
|
9165640822
91651-60818 BOLTWWASHER |
91651-60818 |
from US $1.08 |
||
