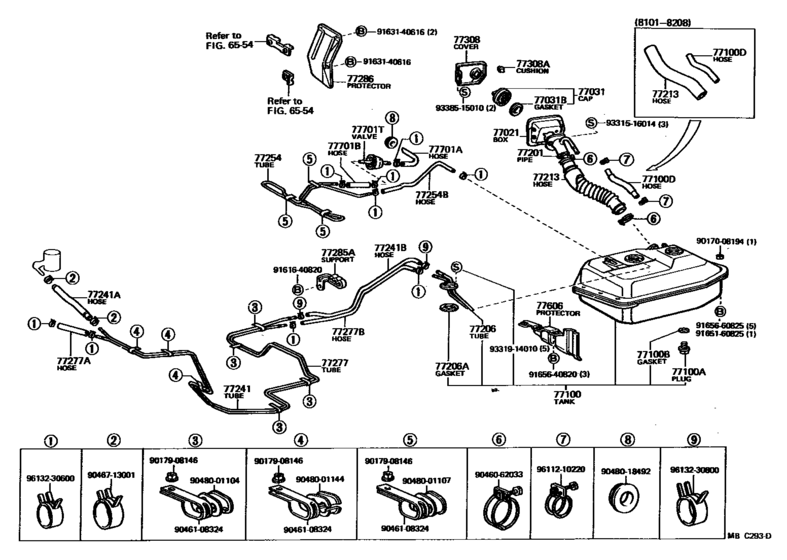

Fuel Tank & Tube ([01.1981 - ] (8101- )LN40) Diagram Toyota PICKUP
- Year
- 1982 - 1983
- Sales region
- U.S.A.
- Frame
- LN40
- grade
- SR5
- ENGINE
- L
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 08.1982
- To
- 07.1983
- Gear Shift Type
- 5F
- Loading Capacity
- HLF
- Building Condition
- IV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
77031
|
77031
77310-35061 Cap Assy, Fuel Tank[08.1981 - 07.1983] LN40 |
77310-35061 |
from US $27.82 |
||
|
77031B
|
77031B
77316-12050 Gasket (For Fuel Tank Cap)[08.1978 - 07.1983] LN40,RN3#,4# |
77316-12050 |
from US $4.07 |
||
|
77100
|
77100
77100-35191
Tank Assy, Fuel
[11.1981 - 07.1983] LN40 |
77100-35191 |
— | ||
|
77100A
|
77100A
90105-12018 Plug(For Fuel Tank)[08.1978 - 07.1983] LN40,RN3#,4# |
90105-12018 |
US $6.81 |
||
|
77100B
|
77100B
90430-12245 Gasket(For Fuel Tank)[08.1978 - 07.1983] LN40,RN3#,4# |
90430-12245 |
from US $0.86 |
||
|
77100D
|
77100D
77408-35010
Hose, Fuel, No.1(For Fuel Tank)
[08.1982 - 07.1983] LN40,RN3#,4# |
77408-35010 |
— | ||
|
77100D
|
77100D
90445-21883
Hose, Fuel, No.1(For Fuel Tank)
[08.1978 - 08.1982] LN40,RN3#,4# L=320 |
90445-21883 |
— | ||
|
77201
|
77201
77201-35150
Pipe Sub-Assy, Fuel Tank Inlet
[01.1981 - 07.1983] LN40 |
77201-35150 |
— | ||
|
77206
|
77206
77203-35180
Tube Sub-Assy, Fuel Tank Suction
[11.1981 - 07.1983] LN40 |
77203-35180 |
— | ||
|
77206A
|
77206A
83361-20030 Gasket, Fuel Tank Vent[08.1980 - 07.1983] LN40,RN3#,4# |
83361-20030 |
from US $2.24 |
||
|
77213
|
77213
77213-35040
Hose, Fuel Tank Sub Inlet
[08.1978 - 08.1982] LN40,RN3#,4# |
77213-35040 |
— | ||
| replacement | |||||
|
77213
|
77213
77213-35041
Hose, Fuel Tank Sub Inlet
[08.1978 - 08.1982] LN40,RN3#,4# |
77213-35041 |
— | ||
|
77213
|
77213
77213-35041
Hose, Fuel Tank Sub Inlet
[08.1982 - 07.1983] LN40,RN3#,4# |
77213-35041 |
— | ||
|
77241
|
77241
77251-35190
Tube, Fuel Main, No.1
[01.1981 - 07.1983] LN40 |
77251-35190 |
— | ||
|
77241A
|
77241A
77259-35020
Hose, Fuel, No.1 (For Main Tube, No.1)
[01.1981 - 07.1983] LN40 |
77259-35020 |
— | ||
|
77241B
|
77241B
95332-08070 Hose, Fuel, No.1 (For Main Tube, No.1)[01.1981 - 07.1983] LN40 *H,L=650,ID=7.6 |
95332-08070 |
US $18.05 |
||
| replacement | |||||
|
77241B
|
77241B
95333-08100 Hose, Fuel, No.2 (For Main Tube, No.1)[01.1981 - 07.1983] LN40 *H,L=650,ID=7.6 |
95333-08100 |
US $33.94 |
||
|
77254
|
77254
77228-35020
Tube, Fuel Emission, No.1
[01.1981 - 07.1983] LN40 |
77228-35020 |
— | ||
|
77254B
|
77254B
77209-35100 Hose, Fuel, No.2 (For Emission Tube, No.1)FUEL, NO.2 (FOR EMISSION TUBE, NO.1) [08.1978 - 07.1983] LN40,RN4# |
77209-35100 |
US $30.28 |
||
|
77277
|
77277
77255-35100
Tube, Fuel Return, No.1
[01.1981 - 07.1983] LN40 |
77255-35100 |
— | ||
|
77277A
|
77277A
90447-12034 Hose, Fuel, No.1(For Return Tube, No.1)[01.1981 - 07.1983] LN40 |
90447-12034 |
US $18.20 |
||
| replacement | |||||
|
77277A
|
77277A
90447-12069 Hose, Fuel, No.1(For Return Tube, No.1)[01.1981 - 07.1983] LN40 |
90447-12069 |
US $18.05 |
||
|
77277B
|
77277B
90445-12083
Hose, Fuel(For Fuel Evaporative Separator)
[08.1979 - 07.1983] LN40,RN4# |
90445-12083 |
— | ||
|
77285A
|
77285A
77285-35010
Support, Fuel Return And Main Tube
[01.1981 - 07.1983] LN40 |
77285-35010 |
— | ||
|
77286
|
77286
65625-89106
Protector, Fuel Tank Inlet Pipe
[08.1978 - 02.1983] LN40,RN3#,4# |
65625-89106 |
— | ||
| replacement | |||||
|
77286
|
77286
65625-89107
Protector, Fuel Tank Inlet Pipe
[08.1978 - 02.1983] LN40,RN3#,4# |
65625-89107 |
— | ||
|
77286
|
77286
65625-89107
Protector, Fuel Tank Inlet Pipe
[02.1983 - 07.1983] LN40,RN3#,4# |
65625-89107 |
— | ||
|
77606
|
77606
77161-35010
Protector Sub-Assy, Fuel Tank, No.1
[08.1978 - 07.1983] LN40,RN3#,4# L=313 |
77161-35010 |
— | ||
|
77701A
|
77701A
77249-35030
Hose, Fuel, No.1 (For Breather Valve)
[01.1981 - 07.1983] LN40 |
77249-35030 |
— | ||
|
77701B
|
77701B
95332-06010
Hose, Fuel Pipe, No.1
[01.1981 - 07.1983] LN40 *H,L=70 |
95332-06010 |
— | ||
| replacement | |||||
|
77701B
|
77701B
95333-06010 Hose, Fuel[01.1981 - 07.1983] LN40 *H,L=70 |
95333-06010 |
US $5.38 |
||
|
77701T
|
77701T
90917-10054
Valve, Check (For Main Fuel Tank)
[01.1981 - 07.1983] LN40 |
90917-10054 |
— | ||
|
9017008194
|
9017008194
90170-08194
Nut(For Backing Plate To Rear Axle Housing Setting)
|
90170-08194 |
— | ||
| replacement | |||||
|
9017008194
|
9017008194
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.87 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9046062033
|
9046062033
90460-62033
Clamp(For Air Cleaner Hose, No.1)
|
90460-62033 |
— | ||
| replacement | |||||
|
9046062033
|
9046062033
96111-10620 Clamp, Hose(For Air Connector) |
96111-10620 |
from US $3.94 |
||
|
9046100324
|
9046100324
90461-00324
New Genuine Part
|
90461-00324 |
— | ||
|
9046108324
|
9046108324
90461-08324
New Genuine Part
|
90461-08324 |
— | ||
|
9046713001
|
9046713001
90467-13001
Clamp Or Clip, Hose(For Water By-Pass Hose)
|
90467-13001 |
— | ||
| replacement | |||||
|
9046713001
|
9046713001
96135-51300 Clamp, Hose |
96135-51300 |
from US $1.86 |
||
|
9048001104
|
9048001104
90480-01104
New Genuine Part
|
90480-01104 |
— | ||
|
9048001107
|
9048001107
90480-01107 Grommet(For Brake Tube) |
90480-01107 |
US $1.97 |
||
|
9048001144
|
9048001144
90480-01144 New Genuine Part |
90480-01144 |
US $3.64 |
||
|
9048018492
|
9048018492
90480-18492 New Genuine Part |
90480-18492 |
US $4.02 |
||
|
9161640820
|
9161640820
91616-40820 Bolt, Engine Rear Cover Hinge Set |
91616-40820 |
US $1.93 |
||
|
9163140616
|
9163140616
91631-40616 Bolt(For Head To Camshaft Bearing Cap) |
91631-40616 |
US $3.05 |
||
|
9165160825
|
9165160825
91651-60825
Bolt, Hexagon(For Steering Column Bracket)
|
91651-60825 |
— | ||
| replacement | |||||
|
9165160825
|
9165160825
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.82 |
||
|
9165640820
|
9165640820
91656-40820
BOLT
|
91656-40820 |
— | ||
| replacement | |||||
|
9165640820
|
9165640820
91651-60816 BOLT |
91651-60816 |
from US $0.99 |
||
|
9165660825
|
9165660825
91656-60825
Bolt, Hexagon(For Steering Column Bracket)
|
91656-60825 |
— | ||
| replacement | |||||
|
9165660825
|
9165660825
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.82 |
||
|
9331516014
|
9331516014
93315-16014 New Genuine Part |
93315-16014 |
US $1.10 |
||
|
9331914010
|
9331914010
93319-14010 SCREW |
93319-14010 |
from US $0.90 |
||
|
9338515010
|
9338515010
93385-15010 Screw(For Steering Tilt Lever) |
93385-15010 |
US $1.25 |
||
|
9611210220
|
9611210220
96112-10220 Clamp Or Clip, Hose(For Water By-Pass Hose) |
96112-10220 |
US $0.61 |
||
|
9613230600
|
9613230600
96132-30600
Clip(For Actuator Hose)
|
96132-30600 |
— | ||
| replacement | |||||
|
9613230600
|
9613230600
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.39 |
||
|
9613230800
|
9613230800
96132-30800
Clip, No.3(For Idle-Up Hose)
|
96132-30800 |
— | ||
| replacement | |||||
|
9613230800
|
9613230800
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.44 |
||
