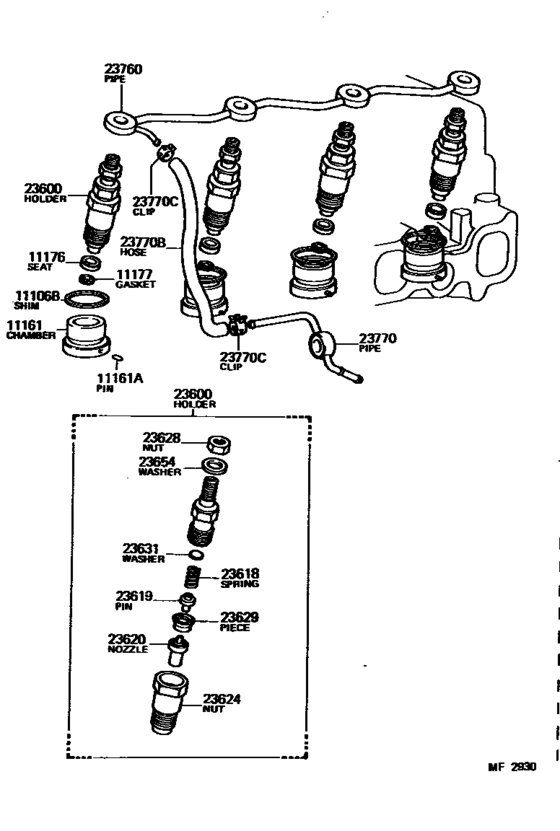

Injection Nozzle ([01.1981 - 10.1982] (8101-8210)L) Diagram Toyota PICKUP
- Year
- 1982 - 1983
- Sales region
- U.S.A.
- Frame
- LN40
- grade
- SR5
- ENGINE
- L
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 08.1982
- To
- 07.1983
- Gear Shift Type
- 5F
- Loading Capacity
- HLF
- Building Condition
- IV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11106B
|
11106B
11165-54011 Shim(For Combustion Chamber)[04.1982 - 07.1983] L..LN40 T=0.05 |
11165-54011 |
US $6.70 |
||
|
11106B
|
11106B
11166-54011 Shim(For Combustion Chamber)[04.1982 - 07.1983] L..LN40 T=0.10 |
11166-54011 |
US $6.70 |
||
|
11106B
|
11106B
11167-54011 Shim(For Combustion Chamber)[04.1982 - 07.1983] L..LN40 T=0.15 |
11167-54011 |
US $6.70 |
||
|
11106B
|
11106B
11168-54011
Shim(For Combustion Chamber)
[04.1982 - 07.1983] L..LN40 T=0.20 |
11168-54011 |
— | ||
|
11161
|
11161
11161-54032 Chamber, Combustion[04.1982 - 07.1983] L..LN40 |
11161-54032 |
US $170.35 |
||
|
11161A
|
11161A
90250-02046 Pin, Straight(For Combustion Chamber)[01.1981 - 07.1983] L..LN40 |
90250-02046 |
US $0.96 |
||
|
11176
|
11176
11176-56010 Seat, Injection Nozzle[01.1981 - 07.1983] L..LN40 |
11176-56010 |
from US $2.64 |
||
|
11177
|
11177
11177-47010 Gasket, Injection Nozzle Seat[01.1981 - 07.1983] L..LN40 |
11177-47010 |
from US $2.09 |
||
|
11177
|
11177
11177-54010
Gasket, Injection Nozzle Seat
[07.1983 - 07.1983] L..LN40 |
11177-54010 |
— | ||
| replacement | |||||
|
11177
|
11177
11177-54011 Gasket, Injection Nozzle Seat[07.1983 - 07.1983] L..LN40 |
11177-54011 |
from US $1.37 |
||
|
23600
|
23600
23600-54030 Holder & Nozzle Set, Nozzle[09.1981 - 10.1982] L..LN40 |
23600-54030 |
US $208.21 |
||
|
23600
|
23600
23600-59025
Holder & Nozzle Set, Nozzle
[10.1982 - 07.1983] L..LN40 |
23600-59025 |
— | ||
|
23618
|
23618
23618-54020
Spring, Nozzle Holder Pressure
[01.1981 - 10.1982] L..LN40 |
23618-54020 |
— | ||
| replacement | |||||
|
23618
|
23618
23618-54050
Spring, Nozzle Holder Pressure
[01.1981 - 10.1982] L..LN40 |
23618-54050 |
— | ||
|
23618
|
23618
23618-54050
Spring, Nozzle Holder Pressure
[10.1982 - 07.1983] L..LN40 |
23618-54050 |
— | ||
|
23619
|
23619
23619-46010
Pin, Nozzle Holder Pressure
[01.1981 - 07.1983] L..LN40 |
23619-46010 |
— | ||
|
23620
|
23620
23620-54030 Nozzle Assy[09.1981 - 10.1982] L..LN40 |
23620-54030 |
US $54.89 |
||
|
23620
|
23620
23620-59025
Nozzle Assy
[10.1982 - 07.1983] L..LN40 |
23620-59025 |
— | ||
|
23624
|
23624
23624-47011
Nut, Nozzle Retaining
[09.1981 - 10.1982] L..LN40 |
23624-47011 |
— | ||
|
23624
|
23624
23624-54050
Nut, Nozzle Retaining
[10.1982 - 07.1983] L..LN40 |
23624-54050 |
— | ||
| replacement | |||||
|
23624
|
23624
23624-54040
Nut, Nozzle Retaining
[10.1982 - 07.1983] L..LN40 |
23624-54040 |
— | ||
|
23628
|
23628
23628-46010
Nut(For Ring Packing Setting)
[01.1981 - 07.1983] L..LN40 |
23628-46010 |
— | ||
|
23629
|
23629
23629-46010
Piece, Distance(For Nozzle)
[01.1981 - 07.1983] L..LN40 |
23629-46010 |
— | ||
|
23631
|
23631
23631-46010 Washer(For Nozzle Holder Pressure Spring)[01.1981 - 07.1983] L..LN40 T=1.000 |
23631-46010 |
US $3.32 |
||
|
23631
|
23631
23631-54050
Washer(For Nozzle Holder Pressure Spring)
[10.1982 - 07.1983] L..LN40 T=0.70 |
23631-54050 |
— | ||
|
23631
|
23631
23631-54051
Washer(For Nozzle Holder Pressure Spring)
[10.1982 - 07.1983] L..LN40 T=0.75 |
23631-54051 |
— | ||
|
23631
|
23631
23631-54052
Washer(For Nozzle Holder Pressure Spring)
[10.1982 - 07.1983] L..LN40 T=0.80 |
23631-54052 |
— | ||
|
23631
|
23631
23631-54053
Washer(For Nozzle Holder Pressure Spring)
[10.1982 - 07.1983] L..LN40 T=0.85 |
23631-54053 |
— | ||
|
23631
|
23631
23631-54054
Washer(For Nozzle Holder Pressure Spring)
[10.1982 - 07.1983] L..LN40 T=0.95 |
23631-54054 |
— | ||
|
23631
|
23631
23631-54055
Washer(For Nozzle Holder Pressure Spring)
[10.1982 - 07.1983] L..LN40 T=0.90 |
23631-54055 |
— | ||
|
23631
|
23631
23632-46010 Washer(For Nozzle Holder Pressure Spring)[01.1981 - 07.1983] L..LN40 T=1.050 |
23632-46010 |
US $1.56 |
||
|
23631
|
23631
23633-46010
Washer(For Nozzle Holder Pressure Spring)
[01.1981 - 07.1983] L..LN40 T=1.100 |
23633-46010 |
— | ||
|
23631
|
23631
23634-46010
Washer(For Nozzle Holder Pressure Spring)
[01.1981 - 07.1983] L..LN40 T=1.150 |
23634-46010 |
— | ||
|
23631
|
23631
23635-46010
Washer(For Nozzle Holder Pressure Spring)
[01.1981 - 07.1983] L..LN40 T=1.200 |
23635-46010 |
— | ||
|
23631
|
23631
23636-46010
Washer(For Nozzle Holder Pressure Spring)
[01.1981 - 07.1983] L..LN40 T=1.250 |
23636-46010 |
— | ||
|
23631
|
23631
23637-46010
Washer(For Nozzle Holder Pressure Spring)
[01.1981 - 07.1983] L..LN40 T=1.300 |
23637-46010 |
— | ||
|
23631
|
23631
23638-46010
Washer(For Nozzle Holder Pressure Spring)
[01.1981 - 07.1983] L..LN40 T=1.350 |
23638-46010 |
— | ||
|
23631
|
23631
23639-46010
Washer(For Nozzle Holder Pressure Spring)
[01.1981 - 07.1983] L..LN40 T=1.400 |
23639-46010 |
— | ||
|
23631
|
23631
23641-46010
Washer(For Nozzle Holder Pressure Spring)
[01.1981 - 07.1983] L..LN40 T=1.450 |
23641-46010 |
— | ||
|
23631
|
23631
23642-46010
Washer(For Nozzle Holder Pressure Spring)
[01.1981 - 07.1983] L..LN40 T=1.500 |
23642-46010 |
— | ||
|
23631
|
23631
23643-46010
Washer(For Nozzle Holder Pressure Spring)
[01.1981 - 07.1983] L..LN40 T=1.550 |
23643-46010 |
— | ||
|
23631
|
23631
23644-46010
Washer(For Nozzle Holder Pressure Spring)
[01.1981 - 07.1983] L..LN40 T=1.600 |
23644-46010 |
— | ||
|
23631
|
23631
23645-46010
Washer(For Nozzle Holder Pressure Spring)
[01.1981 - 07.1983] L..LN40 T=1.650 |
23645-46010 |
— | ||
|
23631
|
23631
23646-46010
Washer(For Nozzle Holder Pressure Spring)
[01.1981 - 07.1983] L..LN40 T=1.700 |
23646-46010 |
— | ||
|
23631
|
23631
23647-46010
Washer(For Nozzle Holder Pressure Spring)
[01.1981 - 07.1983] L..LN40 T=1.750 |
23647-46010 |
— | ||
|
23631
|
23631
23648-46010
Washer(For Nozzle Holder Pressure Spring)
[01.1981 - 10.1982] L..LN40 T=1.800 |
23648-46010 |
— | ||
|
23631
|
23631
23649-46010
Washer(For Nozzle Holder Pressure Spring)
[01.1981 - 10.1982] L..LN40 T=1.850 |
23649-46010 |
— | ||
|
23631
|
23631
23651-46010
Washer(For Nozzle Holder Pressure Spring)
[01.1981 - 10.1982] L..LN40 T=1.900 |
23651-46010 |
— | ||
|
23631
|
23631
23652-46010 Washer(For Nozzle Holder Pressure Spring)[01.1981 - 10.1982] L..LN40 T=1.950 |
23652-46010 |
US $1.56 |
||
|
23654
|
23654
23654-46010 Washer(For Ring Packing)[01.1981 - 07.1983] L..LN40 |
23654-46010 |
from US $2.53 |
||
|
23760
|
23760
23760-54011 Pipe Assy, Nozzle Leakage[01.1981 - 07.1983] L..LN40 |
23760-54011 |
US $55.04 |
||
|
23770
|
23770
23764-54031 Pipe Assy, Nozzle Leakage, No.2NOZZLE LEAKAGE, NO.2 [02.1981 - 07.1983] L..LN40 |
23764-54031 |
US $27.37 |
||
|
23770B
|
23770B
95332-04020
Hose, Lpg Injector
[01.1981 - 07.1983] L..LN40 *H,L=120,ID=4 |
95332-04020 |
— | ||
| replacement | |||||
|
23770B
|
23770B
95333-04020 Hose, Lpg Injector[01.1981 - 07.1983] L..LN40 *H,L=120,ID=4 |
95333-04020 |
from US $4.48 |
||
|
23770C
|
23770C
96132-30400
Clip Or Clamp(For Ventilation Hose)
[01.1981 - 07.1983] L..LN40 |
96132-30400 |
— | ||
| replacement | |||||
|
23770C
|
23770C
96132-51000 Clip Or Clamp(For Ventilation Hose)[01.1981 - 07.1983] L..LN40 |
96132-51000 |
from US $1.44 |
||
