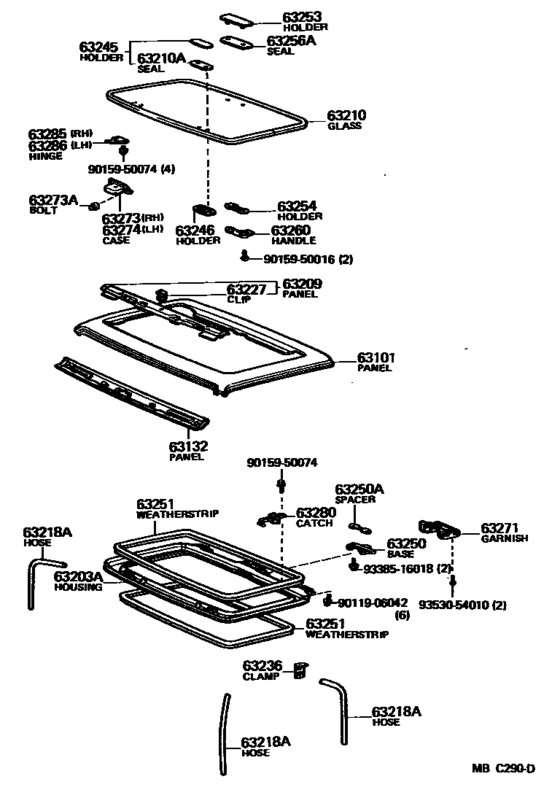

Roof Panel & Back Panel ([08.1981 - ] (8101-8108)SR5 ; (8101-8108)RN38,48 ; (8108- )SR5) Diagram Toyota PICKUP
- Year
- 1982 - 1983
- Sales region
- U.S.A.
- Frame
- LN40
- grade
- SR5
- ENGINE
- L
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 08.1982
- To
- 07.1983
- Gear Shift Type
- 5F
- Loading Capacity
- HLF
- Building Condition
- IV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63101
|
63101
63111-89105
Panel Sub-Assy, Roof
[08.1978 - 07.1983] LN40,RN3#,4# |
63111-89105 |
— | ||
|
63101
|
63101
63111-89108
Panel Sub-Assy, Roof
[08.1981 - 07.1983] LN40,RN3#,4#..SR5 W/REMOVABLE ROOF |
63111-89108 |
— | ||
|
63132
|
63132
63102-89101
Panel, Windshield Header, Inner
[08.1978 - 07.1983] LN40,RN3#,4# |
63102-89101 |
— | ||
|
63203A
|
63203A
63203-89101
Housing Sub-Assy, Sliding Roof Or Removable Roof
[08.1981 - 07.1983] LN40,RN3#,4#..SR5 |
63203-89101 |
— | ||
|
63209
|
63209
63209-89101
Panel Sub-Assy, Roof Wind Deflector
[08.1981 - 07.1983] LN40,RN3#,4#..SR5 |
63209-89101 |
— | ||
|
63210
|
63210
63201-89101
Glass Sub-Assy, Sliding Roof Or Removable Roof
[08.1981 - 07.1983] LN40,RN3#,4#..SR5 |
63201-89101 |
— | ||
|
63210A
|
63210A
63257-89101 Seal, Removable Roof Glass, Outer[08.1981 - 07.1983] LN40,RN3#,4#..SR5 |
63257-89101 |
US $5.82 |
||
|
63218A
|
63218A
90445-14073
Hose(For Sliding Roof Or Removable Roof Drain)
[08.1981 - 07.1983] LN40,RN3#,4#..SR5 RR,L=1260 |
90445-14073 |
— | ||
|
63218A
|
63218A
90445-14074
Hose(For Sliding Roof Or Removable Roof Drain)
[08.1981 - 07.1983] LN40,RN3#,4#..SR5 FR,L=1440 |
90445-14074 |
— | ||
|
63227
|
63227
63227-12011 Clip, Roof Wind Deflector Panel[10.1981 - 07.1983] LN40,RN3#,4#..SR5 |
63227-12011 |
US $3.93 |
||
| replacement | |||||
|
63227
|
63227
63227-17010
Clip, Roof Wind Deflector Panel
[10.1981 - 07.1983] LN40,RN3#,4#..SR5 |
63227-17010 |
— | ||
|
63236
|
63236
63236-89101
Clamp, Sliding Roof Or Removable Roof Drain Hose
[08.1981 - 07.1983] LN40,RN3#,4#..SR5 |
63236-89101 |
— | ||
|
63245
|
63245
63245-89101 Holder, Removable Roof Glass, Outer Front[08.1981 - 07.1983] LN40,RN3#,4#..SR5 |
63245-89101 |
US $18.05 |
||
|
63246
|
63246
63246-89101 Holder, Removable Roof Glass, Inner Front[08.1981 - 07.1983] LN40,RN3#,4#..SR5 |
63246-89101 |
US $17.33 |
||
|
63250
|
63250
63250-12010
Base Assy, Removable Roof Lock
[08.1981 - 07.1983] LN40,RN3#,4#..SR5 |
63250-12010 |
— | ||
|
63250A
|
63250A
63277-12010 Spacer, Removable Roof Lock Base[08.1981 - 07.1983] LN40,RN3#,4#..SR5 |
63277-12010 |
US $9.17 |
||
|
63251
|
63251
63251-89101 Weatherstrip, Sliding Roof Panel Or Removable RoofSLIDING ROOF PANEL OR REMOVABLE ROOF [08.1981 - 07.1983] LN40,RN3#,4#..SR5 OUTER |
63251-89101 |
US $177.63 |
||
|
63251
|
63251
63252-89102
Weatherstrip, Sliding Roof Panel Or Removable Roof
[08.1981 - 07.1983] LN40,RN3#,4#..SR5 INNER |
63252-89102 |
— | ||
|
63253
|
63253
63253-12010 Holder, Removable Roof Glass, Outer RearREMOVABLE ROOF GLASS, OUTER REAR [08.1981 - 07.1983] LN40,RN3#,4#..SR5 |
63253-12010 |
US $27.23 |
||
|
63254
|
63254
63254-89101 Holder, Removable Roof Glass, Inner RearREMOVABLE ROOF GLASS, INNER REAR [08.1981 - 07.1983] LN40,RN3#,4#..SR5 |
63254-89101 |
US $16.74 |
||
|
63256A
|
63256A
63255-12010 Seal, Removable Roof GlassREMOVABLE ROOF GLASS [08.1981 - 07.1983] LN40,RN3#,4#..SR5 |
63255-12010 |
US $8.44 |
||
|
63260
|
63260
63260-89101 Handle Assy, Removable Roof Lock[08.1981 - 07.1983] LN40,RN3#,4#..SR5 |
63260-89101 |
US $139.78 |
||
| replacement | |||||
|
63260
|
63260
63260-89105-13 Handle Assy, Removable Roof Lock[08.1981 - 07.1983] LN40,RN3#,4#..SR5 |
63260-89105-13 |
US $145.60 |
||
|
63271
|
63271
63271-89101 Garnish, Removable Roof LockREMOVABLE ROOF LOCK [08.1981 - 07.1983] LN40,RN3#,4#..SR5 |
63271-89101 |
US $14.41 |
||
|
63273
|
63273
63273-12010
Case, Removable Roof Hinge, Rh
[08.1981 - 07.1983] LN40,RN3#,4#..SR5 |
63273-12010 |
— | ||
|
63273A
|
63273A
63297-12010
Bolt, Removable Roof Hinge Case
[08.1981 - 07.1983] LN40,RN3#,4#..SR5 |
63297-12010 |
— | ||
|
63274
|
63274
63274-12010
Case, Removable Roof Hinge, Lh
[08.1981 - 07.1983] LN40,RN3#,4#..SR5 |
63274-12010 |
— | ||
|
63280
|
63280
63280-12010 Catch Assy, Removable Roof Auxiliary, LhREMOVABLE ROOF AUXILIARY, LH [08.1981 - 07.1983] LN40,RN3#,4#..SR5 |
63280-12010 |
US $16.16 |
||
|
63285
|
63285
63285-89101 Hinge, Removable Roof, Rh[08.1981 - 07.1983] LN40,RN3#,4#..SR5 |
63285-89101 |
US $15.87 |
||
|
63286
|
63286
63286-89101 Hinge, Removable Roof, Lh[08.1981 - 07.1983] LN40,RN3#,4#..SR5 |
63286-89101 |
US $15.87 |
||
|
9011906042
|
9011906042
90119-06042
New Genuine Part
|
90119-06042 |
— | ||
| replacement | |||||
|
9011906042
|
9011906042
90119-06341 BOLT |
90119-06341 |
US $2.15 |
||
|
9015950016
|
9015950016
90159-50016 New Genuine Part |
90159-50016 |
US $5.73 |
||
|
9015950074
|
9015950074
90159-50074
New Genuine Part
|
90159-50074 |
— | ||
|
9338516018
|
9338516018
93385-16018
New Genuine Part
|
93385-16018 |
— | ||
|
9353054010
|
9353054010
93530-54010 SCREW |
93530-54010 |
from US $0.67 |
||
| replacement | |||||
|
9353054010
|
9353054010
90084-16012 SCREW |
90084-16012 |
US $1.77 |
||
